Worm Reducer Size 40 PAM 105/14 flange - Motor casing 71 B14

€82.37 Tax included

69.22 tax excl.

YD4071B1425

With Ø18mm hollow output shaft, and PAM 105/14 input flange (Ext Ø 105mm and input shaft Ø 14mm) type B14, suitable for motors with frame size 71.

Reduction ratios: 7.5-10-15-20-25-30-40.

The powers of the usual engines at 1500 rpm are:

  • 0.25CV Max. grid. i=60.
  • 0.33CV Max. grid. i=40.
  • 0.5CV Max. grid. i=25.


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Reduction ratio
  • 7.5
  • 10
  • 15
  • 20
  • 25
  • 30
  • 40

2 questions about the product
Privacy
Shipments
Returns


Size 40 crown worm Reducer , compact execution and high performance, with Ø18mm hollow output shaft and Ø14mm input shaft.

This size of reducer accepts motors with a B14 size 71 flange , this flange size has an External Ø of 105mm and the reducer has an input shaft diameter of 14mm., PAM 105/14.

Inlet flange dimensions of worm gear reducer

  • P: 105mm.
  • M: 85mm.
  • N: 70mm.
  • D: Ø14mm.

The powers of the motors at 1500 rpm usually used for this type of reducers and with a higher service factor fs≥1 are:

  • 0.25hp 1500rpm. Maximum reduction I= 60.
  • 0.33hp 1500rpm. Maximum reduction I= 40.
  • 0.5CV 1500rpm, Maximum reduction I=25.

The reduction ratios (i) available are from 7.5 to 40, depending on the input revolutions we can obtain the following revolutions on the output shaft shown in the following table.

Reducer output revolutions table

Dimensions crown worm reducer size 40

You can download all the dimensions of the reducer by clicking on the "ATTACHMENTS" tab.

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Möchte die reduzierergröße 30
Answer

Guten Tag,

wenn Sie den Reduzierer Größe 30 wünschen, müssen Sie diesen bitte direkt über unsere Website bestellen.

Alle Bestellungen werden ausschließlich online über unseren Shop abgewickelt.

Alle unsere Produkte sind für den professionellen Gebrauch bestimmt und müssen von qualifiziertem Fachpersonal installiert werden. Für weitere Fragen stehen wir Ihnen gerne zur Verfügung.

Un saludo
Adajusa

Markus Aichbauer on 02/23/2026 21:42:29
Question
Buongiorno, volevo sapere la misura dell’albero motore e la misura dell’albero lento. Grazie
Answer

Buongiorno,

Grazie per l’immagine tecnica inviata. Ecco le misure rilevabili dal disegno:

? Albero motore (lato flangia – foro entrata)

  • Diametro foro centraggio: Ø60 h8

  • Distanza tra fori di fissaggio: Ø87 mm (diametro esterno), Ø75 mm (centraggio)

  • Albero motore (foro d’accoppiamento – vista in basso a sinistra):

    • ØD = 14 mm

    • b = 5 mm (chiavetta)

    • t = 4 mm (profondità cava)

? Albero lento (uscita riduttore – albero maschio)

  • Diametro albero uscita: ØD1 = 25 mm

  • Lunghezza utile (parte sporgente): 26 mm x 2 + 26 mm (corpo centrale) = 78 mm

  • Cava chiavetta:

    • b1 = 8 mm

    • t1 = 3 mm

Se hai bisogno di confermare la compatibilità con un motore specifico o con un accoppiamento particolare, posso aiutarti a verificarlo.

Vuoi che prepari una risposta email pronta per inviare al cliente in italiano?

Tú dijiste:
si
ChatGPT Plus

Aquí tienes el correo listo para enviar al cliente en italiano:

Oggetto: Misure albero motore e albero lento

Buongiorno,

La ringraziamo per averci contattato.

In riferimento al disegno tecnico fornito, Le confermiamo le seguenti misure:

? Albero motore (lato entrata):

  • Diametro centraggio flangia: Ø60 h8

  • Diametro foro accoppiamento: Ø14 mm

  • Cava chiavetta: 5 mm (larghezza), 4 mm (profondità)

? Albero lento (uscita riduttore):

  • Diametro albero: Ø25 mm

  • Lunghezza totale: 78 mm

  • Cava chiavetta: 8 mm (larghezza), 3 mm (profondità)

Rimaniamo a disposizione per qualsiasi ulteriore informazione o chiarimento.

Cordiali saluti,
ADAJUSA
adajusa.it

Daniele on 05/08/2025 22:10:54

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Crown Endless Reducer Size 75 Flange PAM 250/28 - Motor housing 100 B5 Crown Endless Reducer Size 75 Flange PAM 250/28 - Motor housing 100 B5 2
Endless crown reducers

Crown Endless Reducer Size 75 Flange PAM 250/28 - Motor housing 100 B5

Generico-MOT
9R075xxx100B5
€192.45 (€161.72 tax excl.)
With hollow output shaft of Ø28mm, and input flange PAM 250/28 (Ø Ext 250mm and Ø Input shaft 28mm) type B5, suitable for motors with housing size 100. Reduction ratios: 7.5-10-15. The powers of the usual engines at 1500 rpm are: 3CV Max. net. i=30. 4CV Max. net. i=20. 5.5CV Max. net. i=10. Representative image for illustrative purposes,...
Endless crown reducer size. 30 63B14
Endless crown reducers

Reducer worm wheel size 50 Flange PAM 90/11 - Motor housing 63 B14

Generico-MOT
9R050xxx63B14
€108.50 (€91.18 tax excl.)
With hollow output shaft Ø25mm, and flange input shaft PAM 90/11 (Ø Ext 90mm and Ø Input shaft 11mm) type B14, suitable for motors with housing size 63. Reduction ratios: 40-50-80-100 Power ratings of the usual motors at 1500 rpm are: 0.25hp mains. i=80 and 100. 0,33CV Reduced casing. i=80. Representative image for illustrative purposes,...
Endless crown reducer size. 30 63B14 Endless crown reducer size. 30 63B14 2
Endless crown reducers

Endless crown reducer Size 110 Flange PAM 250/28 - Motor housing 100 B5

Generico-MOT
9R110xxx100B5
€408.17 (€343.00 tax excl.)
With hollow output shaft of Ø42mm, and input flange PAM 250/28 (Ø Ext 250mm and Ø Input shaft 28mm) type B5, suitable for motors with housing size 110. Reduction ratios: 7,5-10-15-20-25-30-40. Powers of usual engines at 1500 rpm are: 3CV Max. net. i=60. 4CV Max. net. i=50. 5.5CV Max. net. i=30. 7.5CV Car. reduced, Max. net. i=20....
Endless crown reducer size. 30 63B14 Endless crown reducer size. 30 63B14 2
Endless crown reducers

Endless crown reducer Size110 Flange PAM 200/19 - Motor housing 80 B5

Generico-MOT
9R110xxx80B5
€408.17 (€343.00 tax excl.)
With hollow output shaft of 42mm, and input flange PAM 200/19 (Ø Ext 200mm and Ø Input shaft 19mm) type B5, suitable for motors with housing size 80. Reduction ratios: 100. Powers of usual engines at 1500 rpm are: 0.75CV Network. i=100. 1CV Network. i=100. Representative image for illustrative purposes, the item supplied will correspond...
Endless crown reducer size. 30 63B14 Endless crown reducer size. 30 63B14 2
Endless crown reducers

Endless crown reducer Size 90 Flange PAM 200/19 - Motor housing 80 B5

Generico-MOT
9R090xxx80B5
€274.72 (€230.86 tax excl.)
With hollow output shaft of Ø35mm, and input flange PAM 200/19 (Ø Ext 200mm and Ø Input shaft 19mm) type B5, suitable for motors with housing size 80. Reduction ratios: 80 and 100. The powers of the usual engines at 1500 rpm are: 0.75CV Network. i=80y100. 1CV Network. i=80y100. Representative image for illustrative purposes, the item...
Endless crown reducer size. 30 63B14
Endless crown reducers

Reducer worm wheel size 50 Flange PAM 200/19 - Motor housing 80 B5

Generico-MOT
9R050xxx80B5
€108.50 (€91.18 tax excl.)
With hollow output shaft Ø25mm, and flange input shaft PAM 200/19 (Ø Ext 200mm and Ø Input shaft 19mm) type B5, suitable for motors with size 80 housing. Reduction ratios: 5-7,5-10-15-20-20-25-30-40-50 Reducer valid for motors of 1.000 or 1.500 rpm.The powers of the usual motors at 1500 rpm are: 0.75hp Max. net. i=80. 1HP Max. net. i=20....
Crown Endless Reducer Size 75 Flange PAM 200/24 - Motor housing 90 B5 Crown Endless Reducer Size 75 Flange PAM 200/24 - Motor housing 90 B5 2
Endless crown reducers

Crown Endless Reducer Size 75 Flange PAM 200/24 - Motor housing 90 B5

Generico-MOT
9R075xxx90B5
€192.45 (€161.72 tax excl.)
With hollow output shaft of Ø28mm, and input flange PAM 200/24 (Ø Ext 200mm and Ø Input shaft 24mm) type B5, suitable for motors with housing size 90. Reduction ratios: 7,5-10-15-20-25-30-40. The powers of the usual engines at 1500 rpm are: 1.5CV Max. net. i=40. 2CV Max. net. i=30. 3CV Reduced housing. Max. net. i=15. Representative...
Endless crown reducer size. 30 63B14
Endless crown reducers

Reducer worm wheel size 50 Flange PAM 160/14 - Motor housing 71 B5

Generico-MOT
9R050xxx71B5
€108.50 (€91.18 tax excl.)
With hollow output shaft Ø25mm, and flange input shaft PAM 160/14 (Ø Ext 160mm and Ø Input shaft 14mm) type B5, suitable for motors with housing size 71. Gear ratios: 5-7,5-10-15-20-20-25-30-40-50-60-80-100 Power ratings of the usual motors at 1500 rpm are: 0.33hp max. net. i=80. 0,50CV Max. mains. i=60. 0,75CV Reduced casing. Max. net. i=30....
Endless crown reducer Size 75 Flange PAM 160/14 - Motor housing 71 B5
Endless crown reducers

Endless crown reducer Size 75 Flange PAM 160/14 - Motor housing 71 B5

Generico-MOT
9R075xxx71B5
€192.45 (€161.72 tax excl.)
With hollow output shaft of Ø28mm, and input flange PAM 160/14 (Ø Ext 160mm and Ø Input shaft 14mm) type B5, suitable for motors with housing size 90. Reduction ratios: 60-80-100. The powers of the usual engines at 1500 rpm are: 0.5HP. 0.75HP Reduced housing. Representative image for illustrative purposes, the item supplied will...
Endless crown reducer Size 63 Flange PAM 160/14 - Motor housing 71 B5
Endless crown reducers

Endless crown reducer Size 63 Flange PAM 160/14 - Motor housing 71 B5

Generico-MOT
9R063xxx71B5
€142.25 (€119.54 tax excl.)
With hollow output shaft of 25mm,and input flange PAM 160/14 (Ext 160mm and 14mm inlet axle) type B5, suitable for motors with housing size 71. Reduction ratios: 50-60-80-100. The usual engine powers at 1500 rpm are: 0.5CV i-50 and 60. Representative image for illustrative purposes, the item supplied will correspond to the indicated...
Endless reducer crown Size 90 Flange PAM 250/28 - Motor housing 100 B5 Endless reducer crown Size 90 Flange PAM 250/28 - Motor housing 100 B5 2
Endless crown reducers

Endless reducer crown Size 90 Flange PAM 250/28 - Motor housing 100 B5

Generico-MOT
9R090xxx100B5
€274.72 (€230.86 tax excl.)
With hollow output shaft of Ø35mm, and input flange PAM 250/28 (Ø Ext 250mm and Ø Input shaft 28mm) type B5, suitable for motors with housing size 100. Reduction ratios: 7,5-10-15-20-25-30. The powers of the usual engines at 1500 rpm are: 3CV Max. net. i=30. 4CV Max. net. i=20. 5.5CV Max. net. i=10. Representative image for illustrative...
Endless crown reducer size. 30 63B14
Endless crown reducers

Reducer worm wheel size 50 Flange PAM 105/14 - Motor housing 71 B14

Generico-MOT
9R050xxx71B14
€108.50 (€91.18 tax excl.)
With hollow output shaft Ø25mm, and flange input shaft PAM 105/14 (Ø Ext 105mm and Ø Input shaft 14mm) type B14, suitable for motors with housing size 71. Gear ratios: 5-7,5-10-15-20-20-25-30-40-50-60-80-100 Power ratings of the usual motors at 1500 rpm are: 0.33hp max. net. i=80. 0,50CV Max. mains. i=60. 0,75CV Reduced casing. Max. net. i=30....

Customers who bought this product also bought:

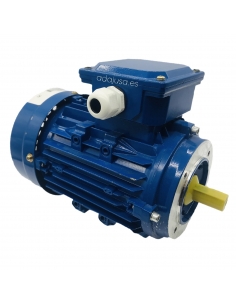

Single-phase electric motor 0.37Kw 0.5HP 230V B14 3000 high starting torque | ADAJUSA | price
