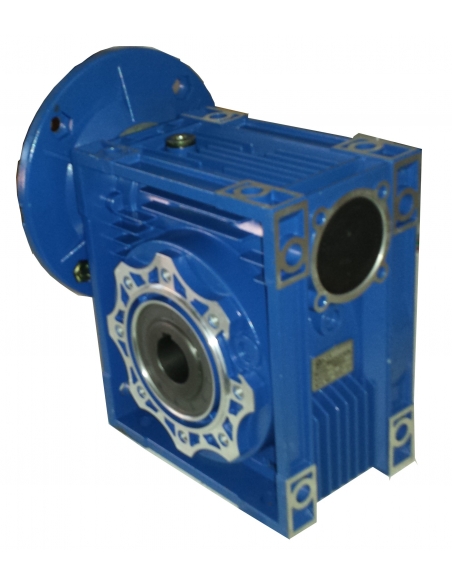

Reducer worm wheel size 50 Flange PAM 160/14 - Motor housing 71 B5

€108.50 Tax included

91.18 tax excl.

YDSEG5071B525

With hollow output shaft Ø25mm, and flange input shaft PAM 160/14 (Ø Ext 160mm and Ø Input shaft 14mm) type B5, suitable for motors with housing size 71.

Gear ratios: 5-7,5-10-15-20-20-25-30-40-50-60-80-100

Power ratings of the usual motors at 1500 rpm are:

  • 0.33hp max. net. i=80.
  • 0,50CV Max. mains. i=60.
  • 0,75CV Reduced casing. Max. net. i=30.


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Reduction ratio
  • 7.5
  • 10
  • 15
  • 20
  • 25
  • 30
  • 40
  • 50
  • 60
  • 100
  • 80
  • 5

1 question about the product
Privacy
Shipments
Returns


Reducer size 50 worm gearbox, compact design and high performance, with a hollow output shaft Ø25mm and input shaft Ø14mm.

This size of gearbox supports motors with flange B5 size 71, this size of flange has an O.D. of 160mm and the gearbox has an input shaft diameter of 14mm, PAM 160/14.

Dimensiones brida entrada reductor sinfin corona

  • P: 160mm.
  • M: 130mm.
  • N: 110mm.
  • D: Ø14mm.

The power ratings of the motors at 1500 rpm usually used for this type of gearboxes and with higher service factor fs≥1 are:

  • 0,33CV 1500rpm. Maximum reduction I= 80.
  • 0,5CV 1500rpm. Maximum reduction I= 60.
  • 0.75hp 1500rpm, reduced casing. Maximum reduction I=30.

The available reduction ratios (i) are from 5 to 100, depending on the input revolutions we can obtain the following revolutions on the output shaft shown in the following table.

Tabla de revoluciones de salida reductores

Dimensiones sinfin corona tamaño 50

You can download the complete dimensions of the gearbox by clicking on the "ATTACHMENTS" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
