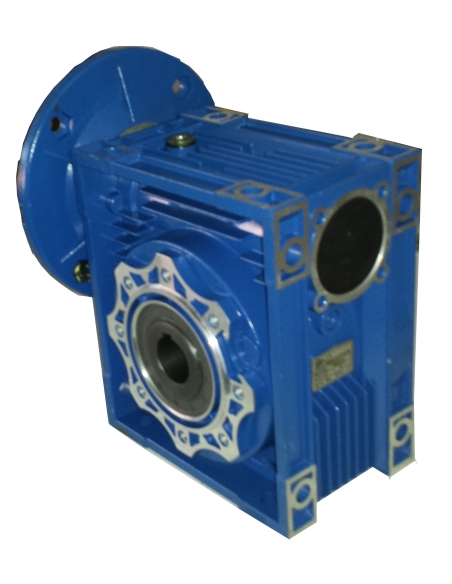

Endless crown reducer Size 75 Flange PAM 200/19 - Motor housing 80 B5
Endless crown reducer Size 75 Flange PAM 200/19 - Motor housing 80 B5

Endless crown reducer Size 75 Flange PAM 200/19 - Motor housing 80 B5

€192.45 Tax included

161.72 tax excl.

YDSEG7580B540

With hollow output shaft of Ø28mm, and input flange PAM 200/19 (Ø Ext 200mm and Ø Input shaft 19mm) type B5, suitable for motors with housing size 80.

Reduction ratios: 25-30-40-50-60-80-100.

The powers of the usual engines at 1500 rpm are:

  • 0.75CV network. i=25 to 100.
  • 1CV network. i=25 to 60.
  • 1.5CV Reduced housing. net. i=25 to 50.


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Reduction ratio
  • 25
  • 30
  • 40
  • 50
  • 60
  • 100
  • 80

1 question about the product
Privacy
Shipments
Returns


Endless reducer crown of size 75, compact execution and high performance, with hollow output shaft of Ø28mm and input shaft of Ø19mm.

This reducer size supports B5 flange motors size 80, this flange size has an outer Ø of 200mm and the reducer has an inlet shaft diameter of 19mm., PAM 200/19

Dimensiones brida entrada reductor sinfin corona

  • P: 200mm.
  • M:
  • N:
  • D: Ø19mm.

The powers of the motors at 1500 rpm usually used for this type of reducers and with higher service factor fs≥1 are:

  • 0.75HP 1500rpm. Reduction I= 25 to 100.
  • 1CV 1500rpm. Reduction I= 25 to 60.
  • 3CV 1500rpm. Reduced housing. Reduction I = 25 to 50.

The reduction ratios (i) available are from 25 to 100, depending on the input revolutions we can obtain the following revolutions on the output axis shown in the following table.

Tabla de revoluciones de salida reductores

Dimensiones reductor

You can download all the dimensions of the reducer by clicking on the "ATTACHMENTS" tab.


Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Gibt es für das Getriebe eine vorgeschriebene Einbaulage?
Wird das Getriebe mit Öl geliefert? Wenn nein, welches Öl muss eingefüllt werden?
Vielen Dank.
Answer
Guten Morgen.

Die Reduzierstücke können in jeder Position eingebaut werden, sie verfügen über eingebautes Öl, um in horizontaler Position installiert zu werden, in einer anderen Position müssen sie bis zum Arbeitsniveau gefüllt werden, das Schmieröl muss alle 1000 Betriebsstunden ersetzt werden, 75W80, ISO VG32.

Grüße

Adajusa

Buenos días.

Los reductores se pueden instalar en cualquier posición, llevan aceite incorporado para ser instalados en posición horizontal, en otra posición hay que rellenar hasta nivel de trabajo, el aceite lubricante tiene que ser sustituido cada 1000 horas de trabajo, 75W80, ISO VG32.

Saludos

Adajusa
Matthias Däuber on 05/24/2024 08:34:42

Question about the product
