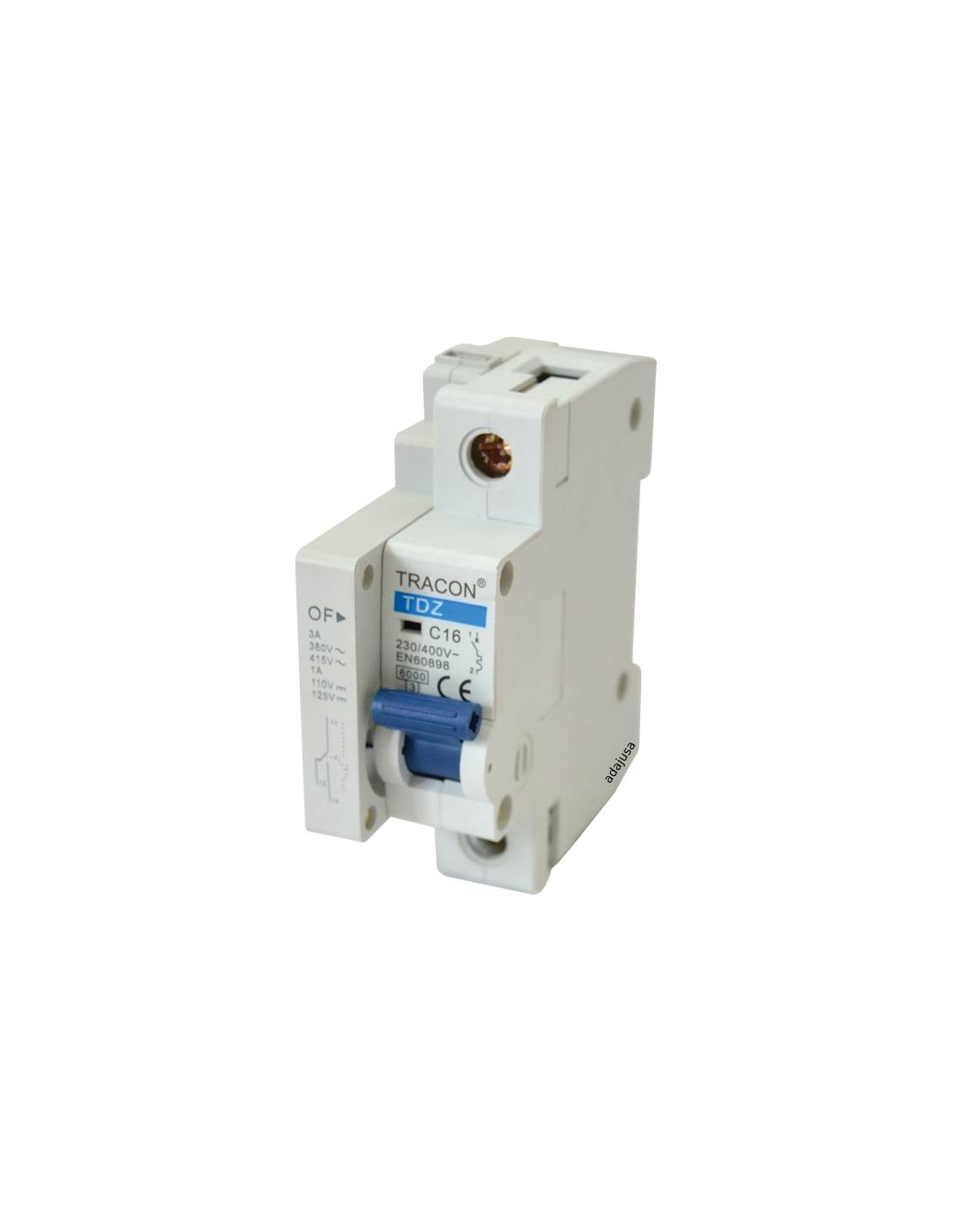

Auxiliary Contact for circuit breaker - Tracon
Auxiliary Contact for circuit breaker - Tracon

Auxiliary Contact for circuit breaker - Tracon

€3.26 Tax included

€2.74 tax excl.

Auxiliary Contact for circuit breaker , with 1 NO/NC switched contact. It indicates the "open" or "closed" position of the magneto-thermal switch to which it is associated, it is located on the left side of it.

ESUQEMA TDZ
Reference: TDZ-F2


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Lateral auxiliary contact chamber with 1 switched contact to couple to circuit breakers, it is placed on the left side of the circuit breaker. The camera is coupled to the circuit breaker using its operating lever and release tab.


Note : The auxiliary contact is only valid for Tracon brand TDZ series circuit breakers.



Technical characteristics:

  • Manufacturer/Supplier: Tracon
  • Manufacturer reference: TDZ-F2
  • Operating voltage: 230/400Vac
  • Nominal current (In): 6A 240Vac; 3A 415Vac; 4A 24Vdc; 2A 48Vdc, 1A 125Vdc
  • Nominal insulation voltage (Ui): 500Vac
  • Type: OFF
  • Contact type: Switched NO/NC
  • Location: Left side
  • Protection grade: IP20

Dimensions: TDZ-F2DIMENSIONS

  • Nominal current in AC1/AC7a: 25A
  • Maximum contactor power in AC1/AC7a 230V: 5 kW
  • Maximum contactor power in AC3/AC7b 230V: 1.5 kW
  • Nominal insulation voltage (Ui): 500Vac
  • Electrical life: > 30000 cycles
  • Mechanical life: > 1000000 cycles
  • Operating temperature: -25ºC...+55ºC
  • Protection grade: IP20
  • Conductor section: 1 - 6mm²
  • Width size: 18mm (1 module)





Material for professional use, install in compliance with the regulations in force at the installation site.
