simple pitch roller Chain 15.875 50 ANSI 10A-1 ASA 8188 - Tsubaki

€144.41 Tax included

121.35 tax excl.

CADERSASA50

Standard simple roller Chain according to norm ASA DIN 8188, up to 98% performance (*), very light and compact which allows it to be installed in very limited spaces.

Reference: CADE-RS ASA-50:TSU

Pitch: 15.875- 50 ANSI

Roller diameter: 10.16 mm


Price per meter. Sold exclusively by packaging of 3 meters.

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Roller Chain in accordance with the requirements of the ASA DIN 8188 standard. Made in Japan.

A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, grease, etc... Roller chains develop synchronous power transmission, without slipping, and the effectiveness of the transmission does not depend on the voltage transmitted.

They can be used in a wide range of industrial and general applications, engines, compressors, printing presses, conveyors, agriculture...


Characteristics:
  • Manufacturer: Tsubaki
  • Reference: CADE-RS ASA-50:TSU
  • Exclusive sale by packaging of 3 meters of chain
  • Pitch (P): 15.875 mm
  • Roller diameter (d 1 ): 10.16 mm (max)
  • Internal width (b 1 ): 9.53 mm (min)
  • Shaft diameter ( d2 ): 5.09 mm (max)
  • union length (L): 22.60 mm (max)
  • Mesh height (h 2 ): 15.00 mm
  • Width between axles (T): 2.00 mm
  • Minimum breaking load (Q ISO/DIN) 21.8/28.4 kN
  • Average breaking load (Q 0 ): 39.00 kN
  • Approximate weight: 1.04 kg/m

(*) In correct lubrication conditions.

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab




Questions

Question
Esta corrente é de aço inoxidável?
Answer

Bom dia,

Recebemos a sua pergunta sobre se a corrente com a designação "Cadena de rodillos simple paso 15.875 50 ANSI 10A-1 ASA 8188 - Tsubaki" é de aço inoxidável.

Gostaríamos de esclarecer o seguinte:

  1. A referência 10A-1 da TSUBAKI para correntes de rolos simples com passo de 15.875mm (ANSI 50) corresponde, por norma do fabricante, a uma corrente fabricada em aço carbono standard. Portanto, esta referência específica não é de aço inoxidável. Pode encontrar informações sobre este tipo de corrente (aço carbono standard) no nosso site. A referência Tsubaki para este modelo é CADE-RS ASA-50:TSU (para o produto com ID 14292 em nosso sistema). Um link que poderá consultar para este tipo de corrente padrão seria: https://adajusa.pt/pt/correntes-de-rolo-padrao-americano-asa-din-8188/14292-corrente-de-rolo-simples-passo-15875-50-ansi-10a-1-asa-8188-tsubaki-8445340142928.html (Por favor, verifique as especificações na página para confirmar que se trata da versão em aço carbono que procura, caso seja essa a sua necessidade.)

  2. Se necessita especificamente de uma corrente em aço inoxidável com estas características (passo 15.875mm, 50 ANSI, simples), a referência TSUBAKI correta é a 10ASS-1 (onde o "SS" na referência indica "Stainless Steel" - Aço Inoxidável). Esta versão em aço inoxidável pode ser encontrada no seguinte link em adajusa.pt: https://adajusa.pt/pt/correntes-de-rolos-de-aco-inoxidavel-norma-americana-asa-din-8188/14366-cadeia-de-rolo-simple-em-aco-inoxidavel-passo-15875-50-ansi-10ass-1-asa-8188-tsubaki-8445340143666.html

Portanto, para responder diretamente à sua pergunta: a corrente TSUBAKI 10A-1 não é de aço inoxidável. A versão em aço inoxidável é a 10ASS-1.

Por favor, verifique qual das duas referências (10A-1 para aço carbono standard ou 10ASS-1 para aço inoxidável) é a que realmente necessita para a sua aplicação. As informações sobre preço, unidade de venda e disponibilidade para cada uma estão detalhadas nas respetivas páginas de produto no nosso site adajusa.pt.

Esperamos que esta informação ajude a esclarecer a sua dúvida.

Com os melhores cumprimentos,

A equipa ADAJUSA adajusa.pt

Maria Conceição Costa on 05/14/2025 21:03:28

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Single step roller chain 15.875 50 ANSI 10A-1 ASA 8188 Tsubaki - ADAJUSA
Stainless steel roller chains American Standard ASA DIN 8188

Stainless steel simple roller Chain pitch 15.875 50 ANSI 10ASS-1 ASA 8188 - Tsubaki

Tsubaki
CAD-50ASS-1
€168.34 (€141.46 tax excl.)
simple stainless steel roller Chain according to norm ASA DIN 8188, up to 98% performance (*), very light and compact which allows it to be installed in very limited spaces. Reference: CADE-RS ASA-50-SS:TSU Pitch: 15.875- 50 ANSI Roller diameter: 10.16 mmPrice per meter. Sold exclusively by packaging of 1 meter. Representative image for illustrative...
View

16 other products in the same category:

Iso DIN 8187 single roller chain ISB - ADAJUSA
American standard roller chains ASA DIN 8188

Single step roller chain 12.7 40 ANSI 08A-1 ASA 8188

ISB-Cadenas
CAD08A-1
Starting from €8.23 (€6.92 tax excl.)
Standard simple roller chain according to American standard ASA DIN 8188, up to 98% performance (*), very light and compact which allows to be installed in very limited spaces. Reference: 57250340 Step: 12.7- 40 ANSI Roller diameter: 7.95 mmPrice per meter. Sale exclusively by packaging of multiples of 5 meters.  Representative image for...
View
Union simple for roller chain 10A-1 ASA 8188 - Tsubaki - ADAJUSA
American standard roller chains ASA DIN 8188

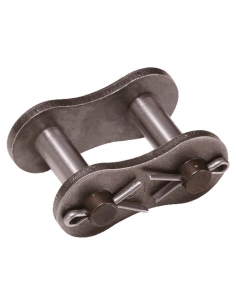

Union simple for chain rollers 10A-1 ASA 8188 - Tsubaki

Tsubaki
UNIO-RS ASA-50-TSU
Starting from €4.02 (€3.38 tax excl.)
Link from union for roller chain type 10A-1 simple, according to norm American ASA 8188, supplied with elastic clip (clamp spring/clip) for quick and secure mounting. Manufactured by Tsubaki. Price per unit. Sold only in packs of multiples of 5 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
View
American standard roller chains ASA DIN 8188

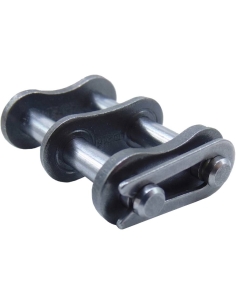

Union double for chain rollers 12A-2 ASA 8188 - Tsubaki

Tsubaki
UNIO-RS ASA-60-2-TSU
Starting from €13.17 (€11.07 tax excl.)
Link from union for roller chain type 12A-2 double roller chain, according to norm American ASA 8188, supplied with elastic clip (clamp spring/clip) for quick and secure mounting. Manufactured by Tsubaki. Price per unit. Sold only in packs of multiples of 5 Representative image for illustrative purposes, the item supplied will correspond to the...
View
Union simple for roller chain 12A-1 ASA 8188 - Tsubaki - ADAJUSA
American standard roller chains ASA DIN 8188

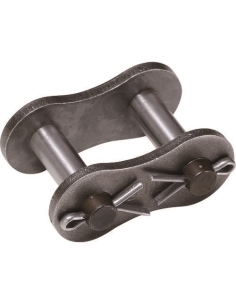

Union simple for chain rollers 12A-1 ASA 8188 - Tsubaki

Tsubaki
UNIO-RS ASA-60-TSU
Starting from €5.93 (€4.98 tax excl.)
Link from union for roller chain type 12A-1 simple, according to norm American ASA 8188, supplied with elastic clip (clamp spring/clip) for quick and secure mounting. Manufactured by Tsubaki. Price per unit. Sold only in packs of multiples of 5 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
View
DOUBLE ROLLER CHAIN ANSI ASA 8188 - ADAJUSA
American standard roller chains ASA DIN 8188

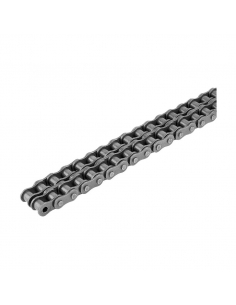

Double pitch roller chain 31.75 100-2 ANSI 20A-2 ASA 8188

ISB-Cadenas
CAD20A-2
Starting from €114.06 (€95.85 tax excl.)
Standard double roller chain according to American standard ASA DIN 8188, up to 98% efficiency (*), very light and compact which allows installation in very limited spaces. Part number: 57250440 Pitch: 31.75- 100-2 ANSI Roller diameter: 19.05 mmPrice per meter. Sold exclusively in packs of multiples of 5 meters Representative image for illustrative...
View
Iso DIN 8187 single roller chain ISB - ADAJUSA
American standard roller chains ASA DIN 8188

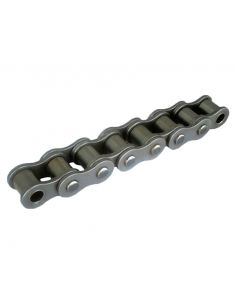

Single pitch roller chain 15.875 50 ANSI 10A-1 ASA 8188
