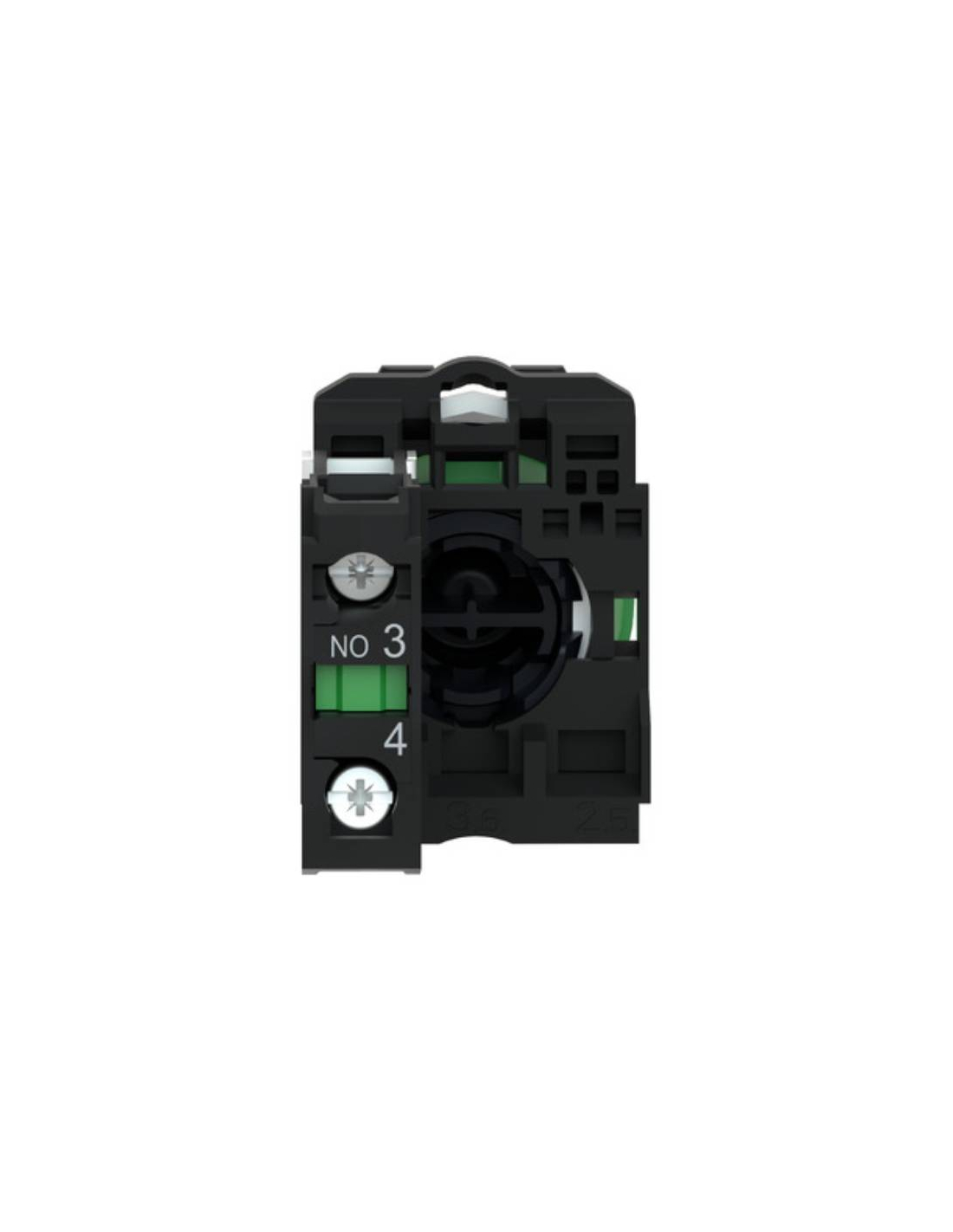

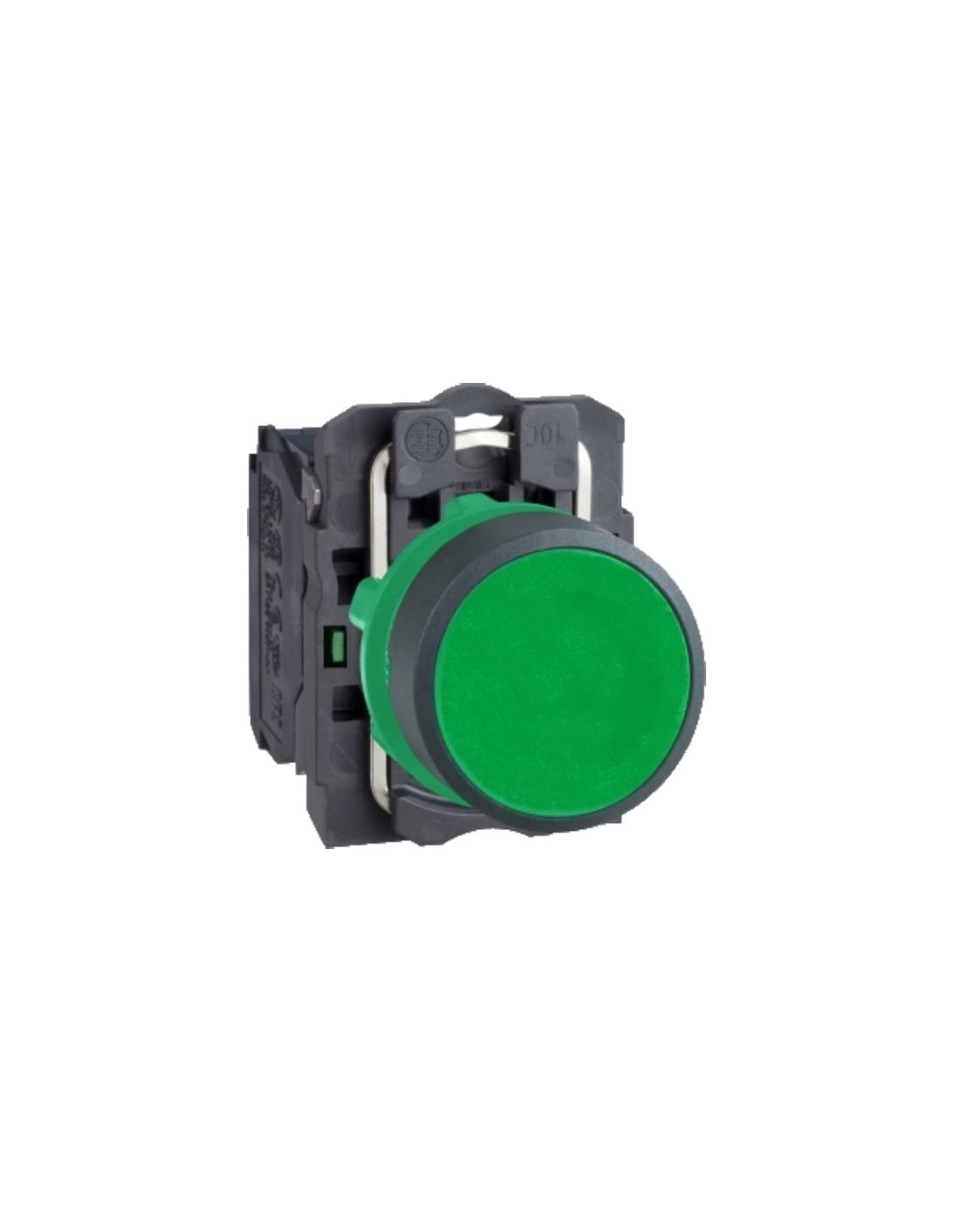

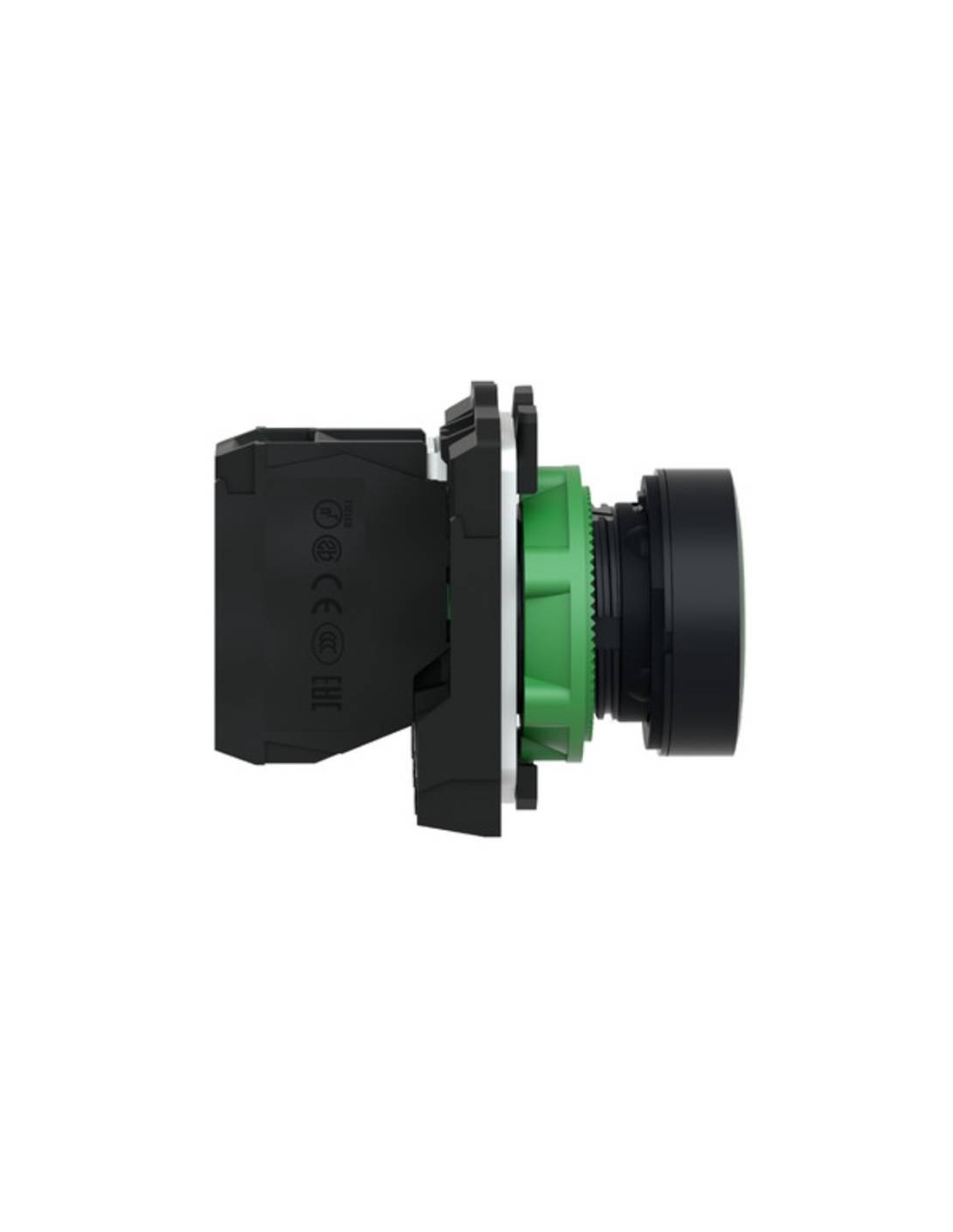

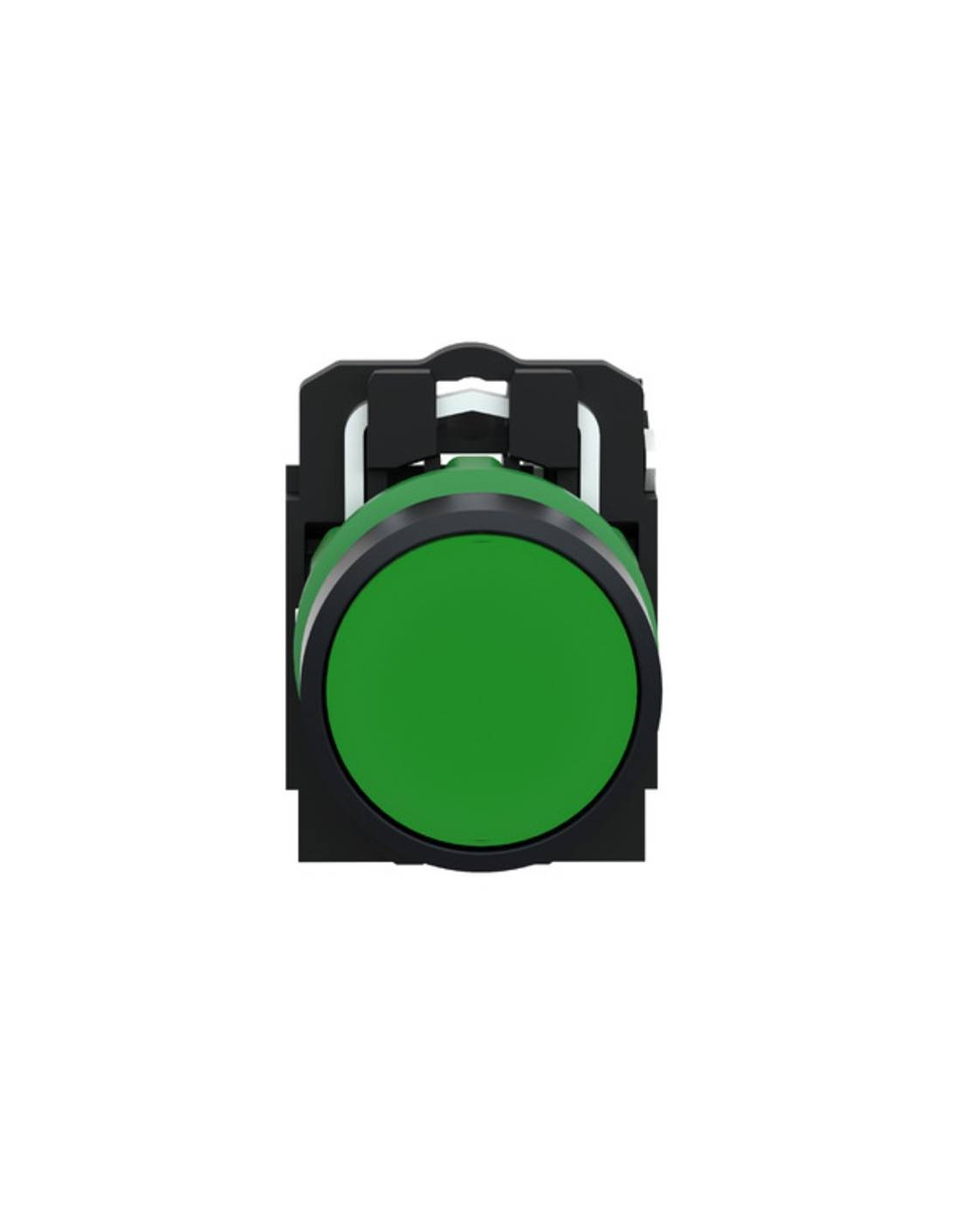

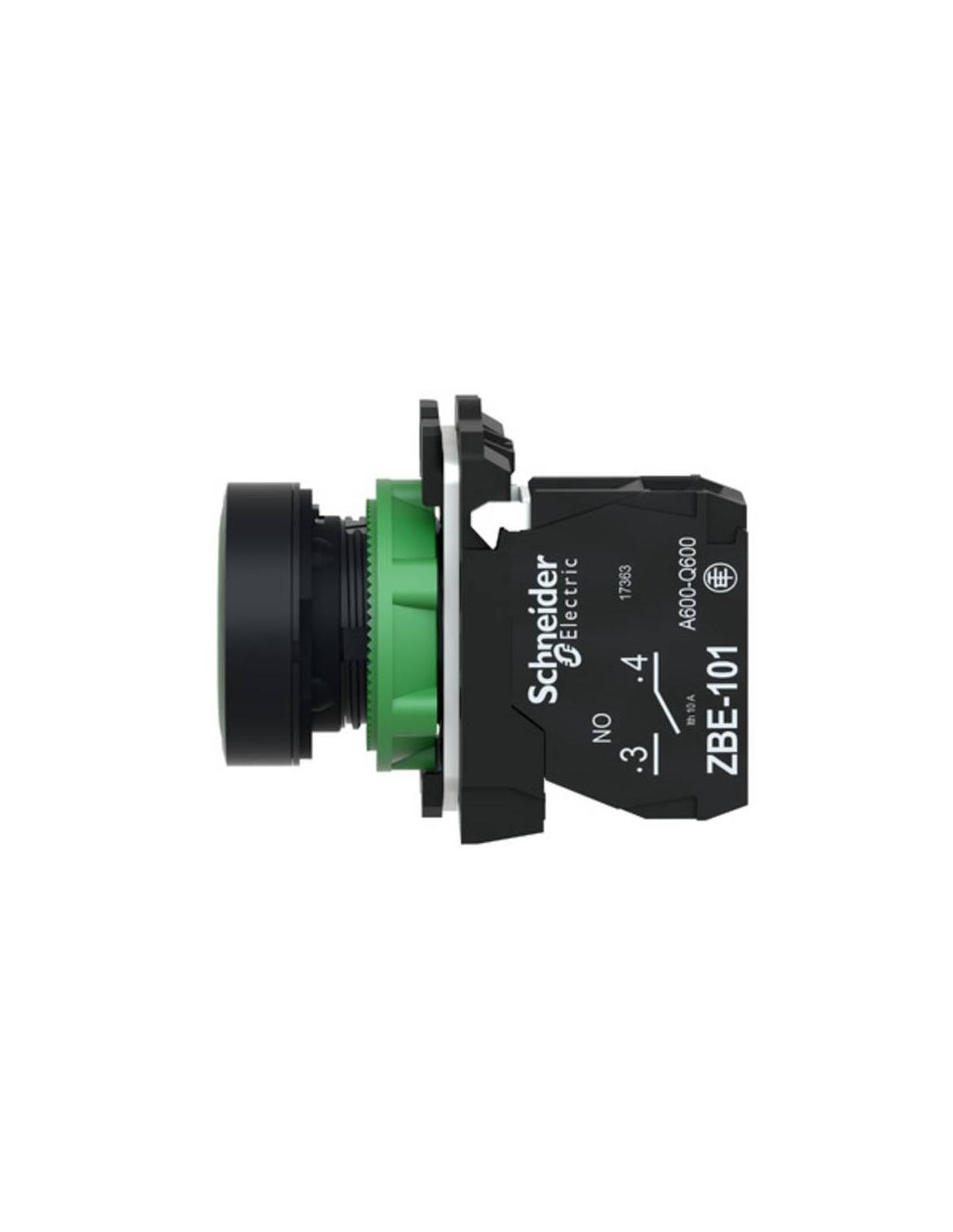

Green push button open contact (NO) - SCHNEIDER

Flush green plastic pushbutton with one open contact (NO), diameter 22 mm. Operating based on a spring-loaded push/return mechanism, it presents an ergonomic interface for machine and process control. It is easily installed in standard 22 mm diameter knockouts and connected by simple screw terminals.

Its design is highly resistant to impacts, dust, water and vibrations thanks to its IP66 protection rating, making it ideal for operation in demanding environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemicals or double electrical insulation.

The supply includes the complete push button with an open contact. It allows the possibility of adding additional contacts.

Characteristics:

• Manufacturer: SCHNEIDER
• Reference: XB5AA31
• HARMONY XB5 SERIES
• Operator Profile: Green flush, unmarked
• Operator Type: Spring Return
• Contact : 1 NO
• Contact operation: Slow break
• Push button diameter: 22mm
• Mounting diameter: 22.5mm
• Short circuit protection: 10A gG type cartridge fuse
• Conventional thermal current: 10A A
• Rated insulation voltage: 600V
• Surge voltage resistance: 6kV
• Nominal operating current: 3A at 240V, AC-15 / 6A at 120V, AC-15 / 0.1A at 600V, DC-13 / 0.27A at 250V, DC-13 / 0.55A at 125V, DC-13 / 1.2A at 600V, AC-15
• Bezel material: Plastic
• Contact material: Ag/Ni
• Electrical durability: 10000000 cycles
• Mechanical durability: 10000000 cycles
• Operating temperature: -40…70C
• IP protection class: IP66
• IK protection class: IK03

e: clamping thickness: 1 to 6 mm
(1) Additional row of contacts or double contact

For further information, you can download the technical sheet by clicking on the "Attached Files" tab.

Professional use material, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
