Double luminous push button 24V open contacts NO and closed contacts NC Harmony XB4 - SCHNEIDER
Double luminous push button 24V open contacts NO and closed contacts NC Harmony XB4 - SCHNEIDER
Double luminous push button 24V open contacts NO and closed contacts NC Harmony XB4 - SCHNEIDER
Double luminous push button 24V open contacts NO and closed contacts NC Harmony XB4 - SCHNEIDER
Double luminous push button 24V open contacts NO and closed contacts NC Harmony XB4 - SCHNEIDER

Double luminous push button 24V open contacts NO and closed contacts NC Harmony XB4 - SCHNEIDER

€38.64 Tax included

€32.47 tax excl.

Luminous on-off metal push button, 1 contact open and 1 contact closed (NO + NC). Metal body and chrome-plated edge. Power supply 24Vac/dc.

The supply includes the complete push button with one open and one closed contact (1 NO + 1 NC). Mounting diameter 22,5 mm. Cable fixing by screw.


Reference: XB4BW73731B5




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

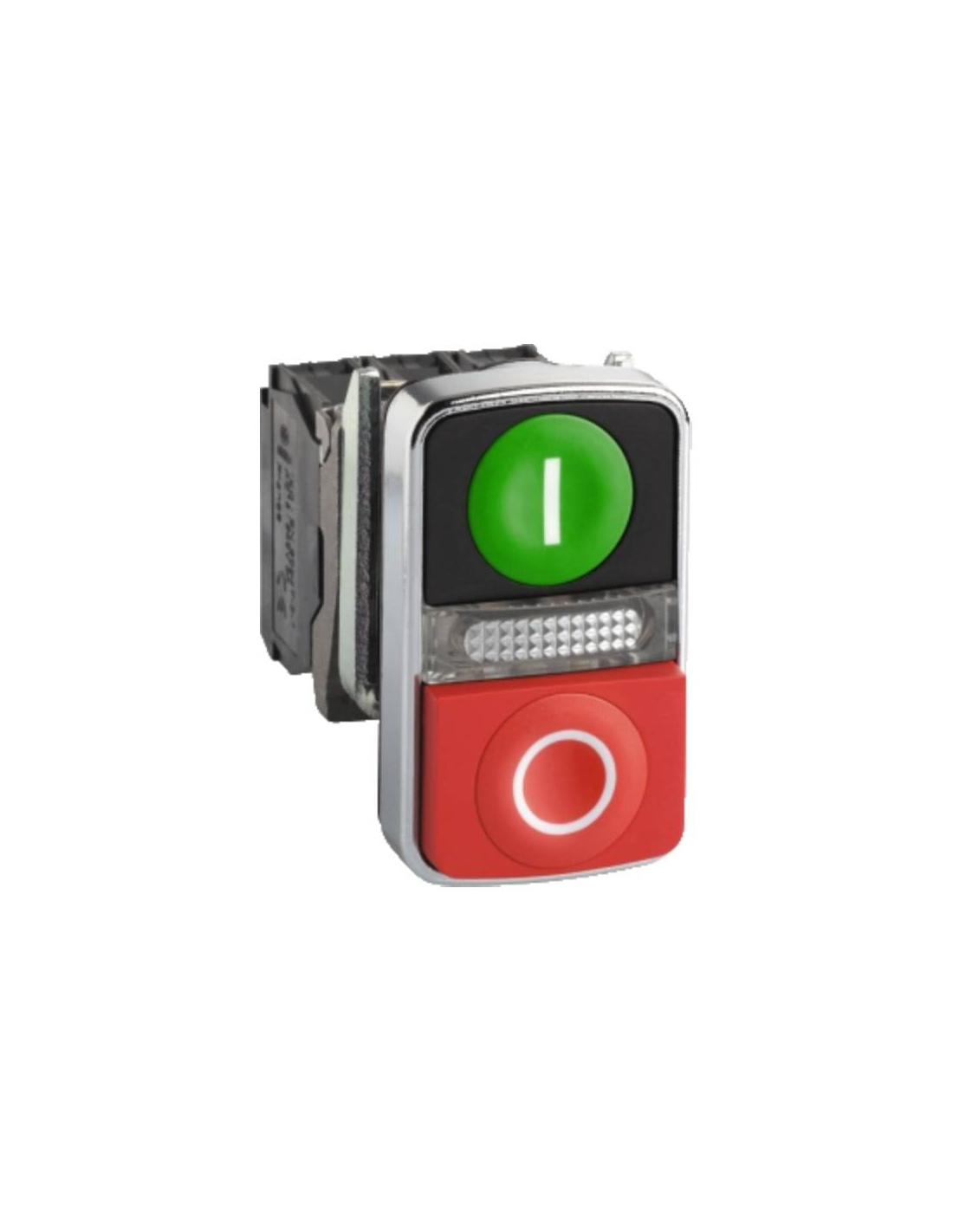

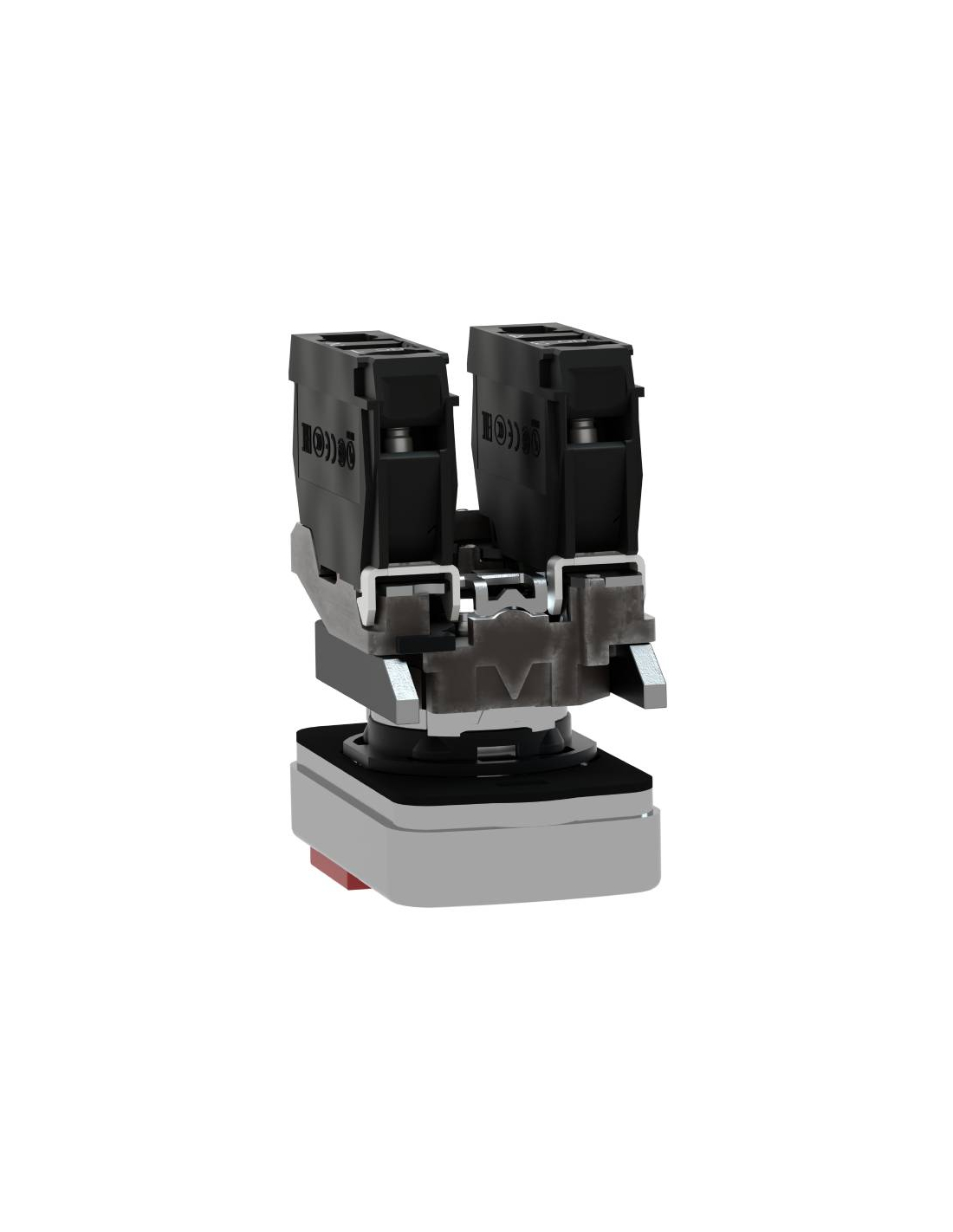

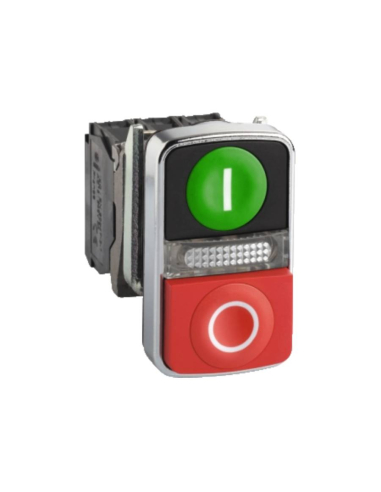

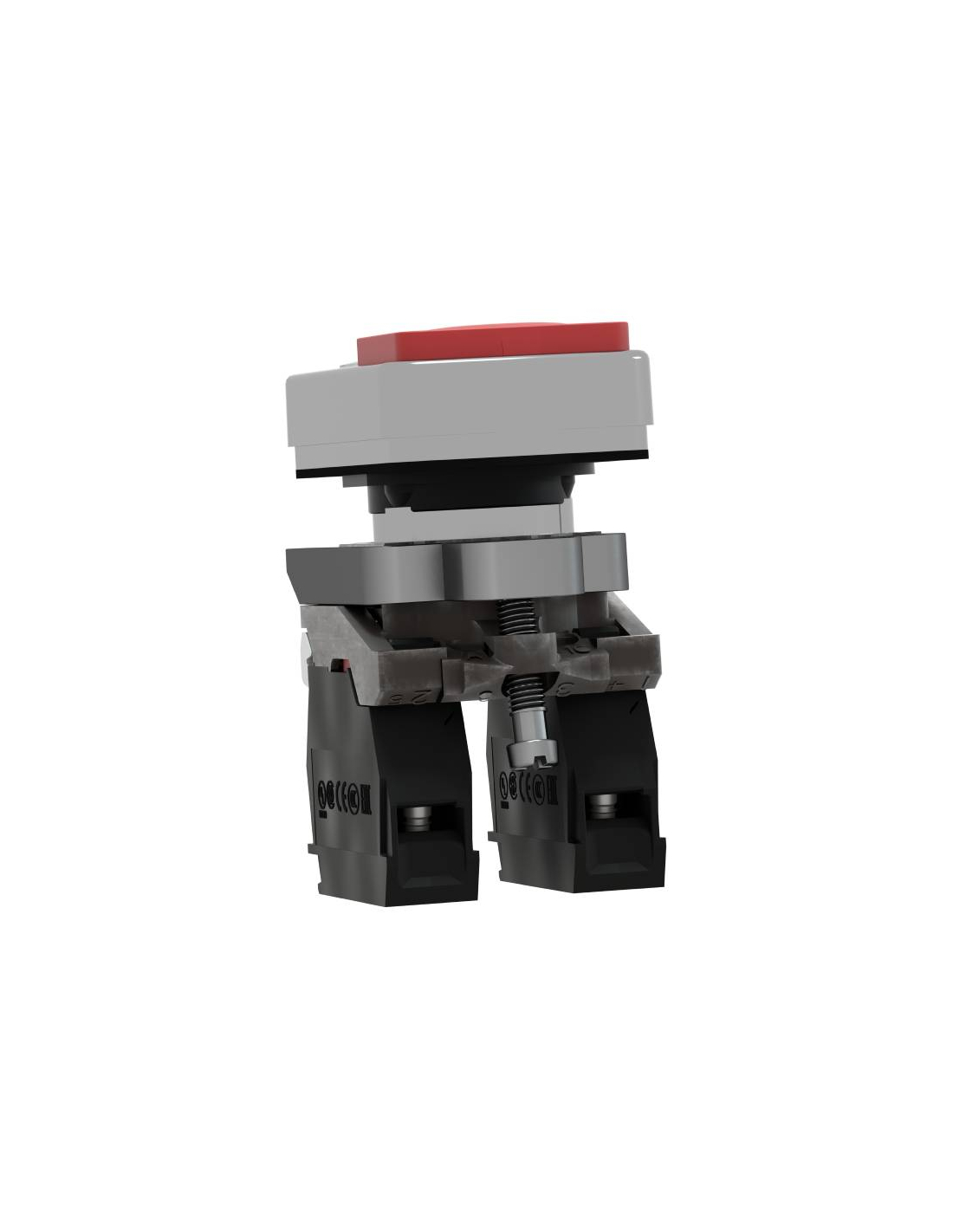

Modular metal pushbutton with a double outgoing run-stop head with one open contact and one closed contact (NO + NC). Based on a spring return mechanism, it features an ergonomic interface for machine and process control. Its design is highly resistant to impact, dust, water and vibration thanks to its IP66 degree of protection, making it suitable for operation in demanding environments. Power supply 24Vac/dc.

The supply includes the complete pushbutton with green button, red button, central white pilot light, one open contact and one closed contact. It allows the possibility of adding additional contacts.



Features:

  • Manufacturer: SCHNEIDER
  • Ref. No.: XB4BW73731B5
  • HARMONY XB4 SERIES
  • Product type: Illuminated emergency stop push button

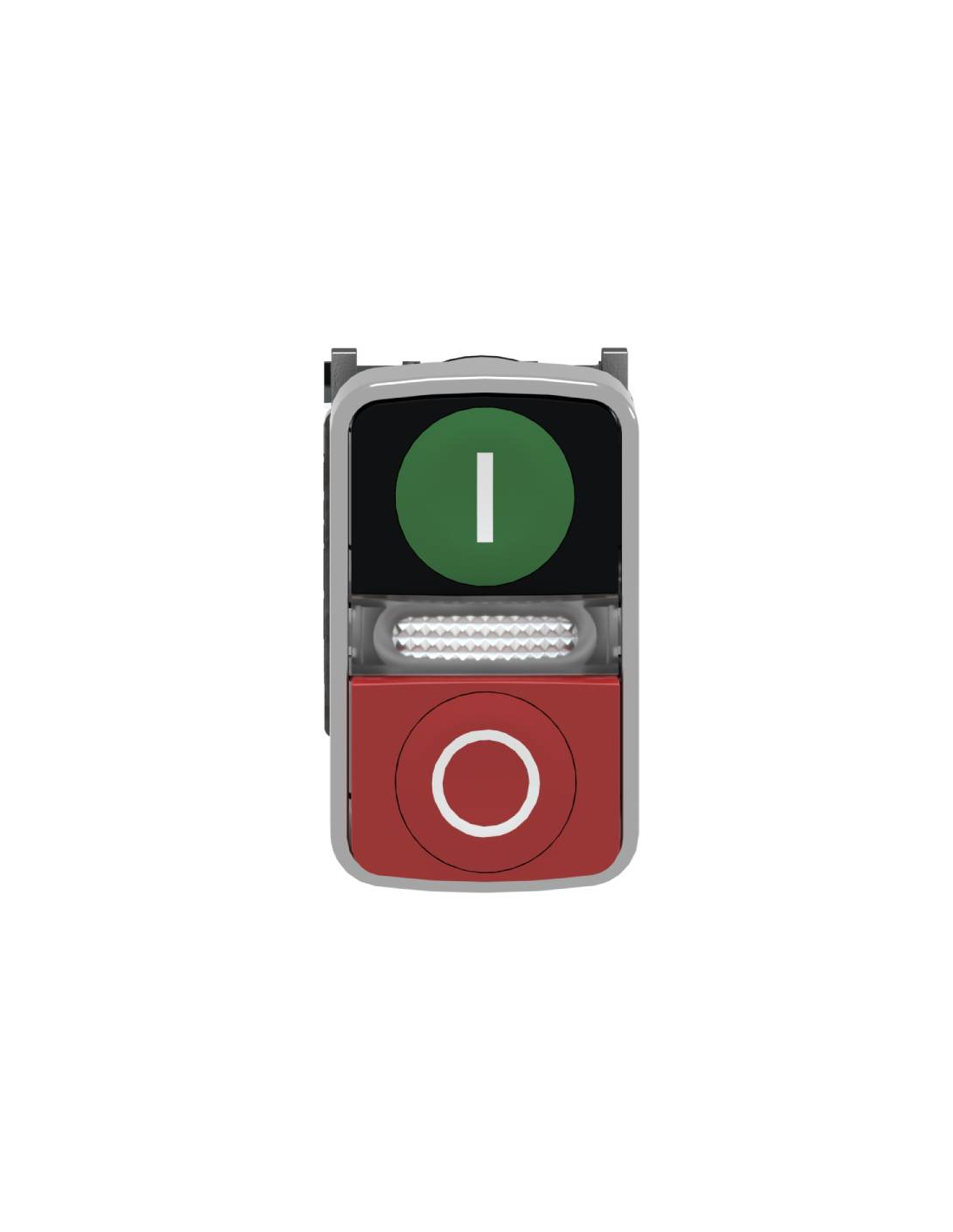

  • Operator profile: Pushbuttons 1 green flush - 1 red outgoing - 1 central illuminated pilot light
  • Operator description: Green 'I' - Red 'O
  • Light source: LED protected
  • Light source color: White
  • Operator type: Spring return

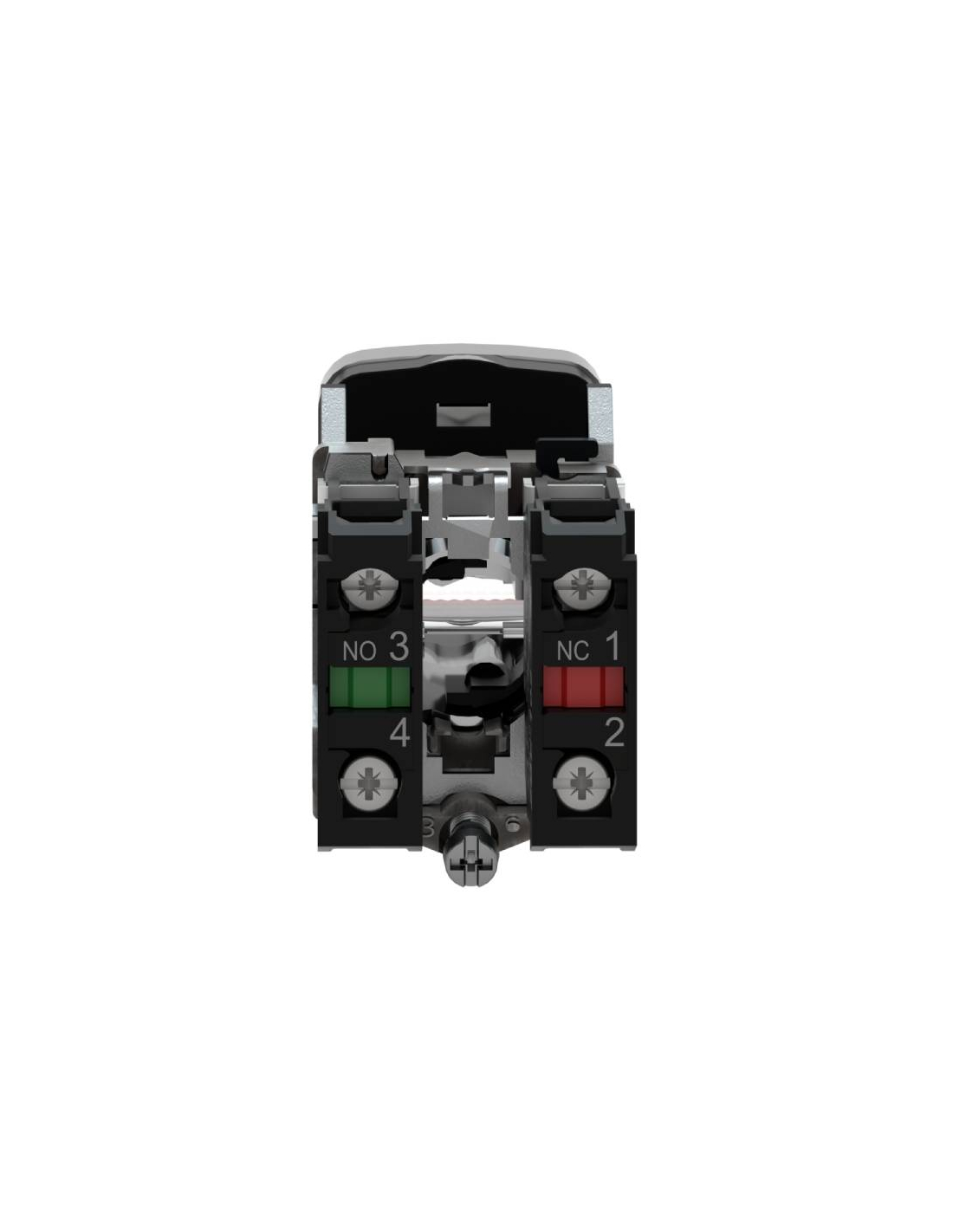

  • Contact1 NO + 1NC
  • Contact operation: Slow break
  • Mounting diameter: 22.5mm
  • Rated supply voltage: 24Vac/dc
  • Supply voltage limits: 19.2 - 30Vdc / 21.6 - 26.4Vac
  • Short-circuit protection: 10A Cartridge fuse type gG
  • Conventional thermal current: 10A A
  • Rated insulation voltage: 600V
  • Surge withstand voltage: 6kV
  • Rated operating current: 3A at 240V, AC-15 / 6A at 120V, AC-15 / 0.1A at 600V, DC-13 / 0.27A at 250V, DC-13 / 0.55A at 125V, DC-13 / 1.2A at 600V, AC-15
  • Bezel material: Silver chrome-plated metal
  • Material of fixing ring: Zamak
  • Contact material: Ag/Ni
  • Electrical durability: 1000000 cycles
  • Mechanical durability: 10000000 cycles
  • Operating temperature: -40...70C
  • IP degree of protection: IP66
  • IK protection degree: IK06

Dimensions (mm/in)





    For further information, you can download the data sheet by clicking on the "Attachments" tab.

    Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
