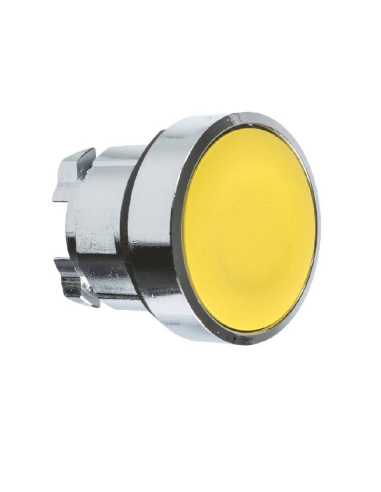

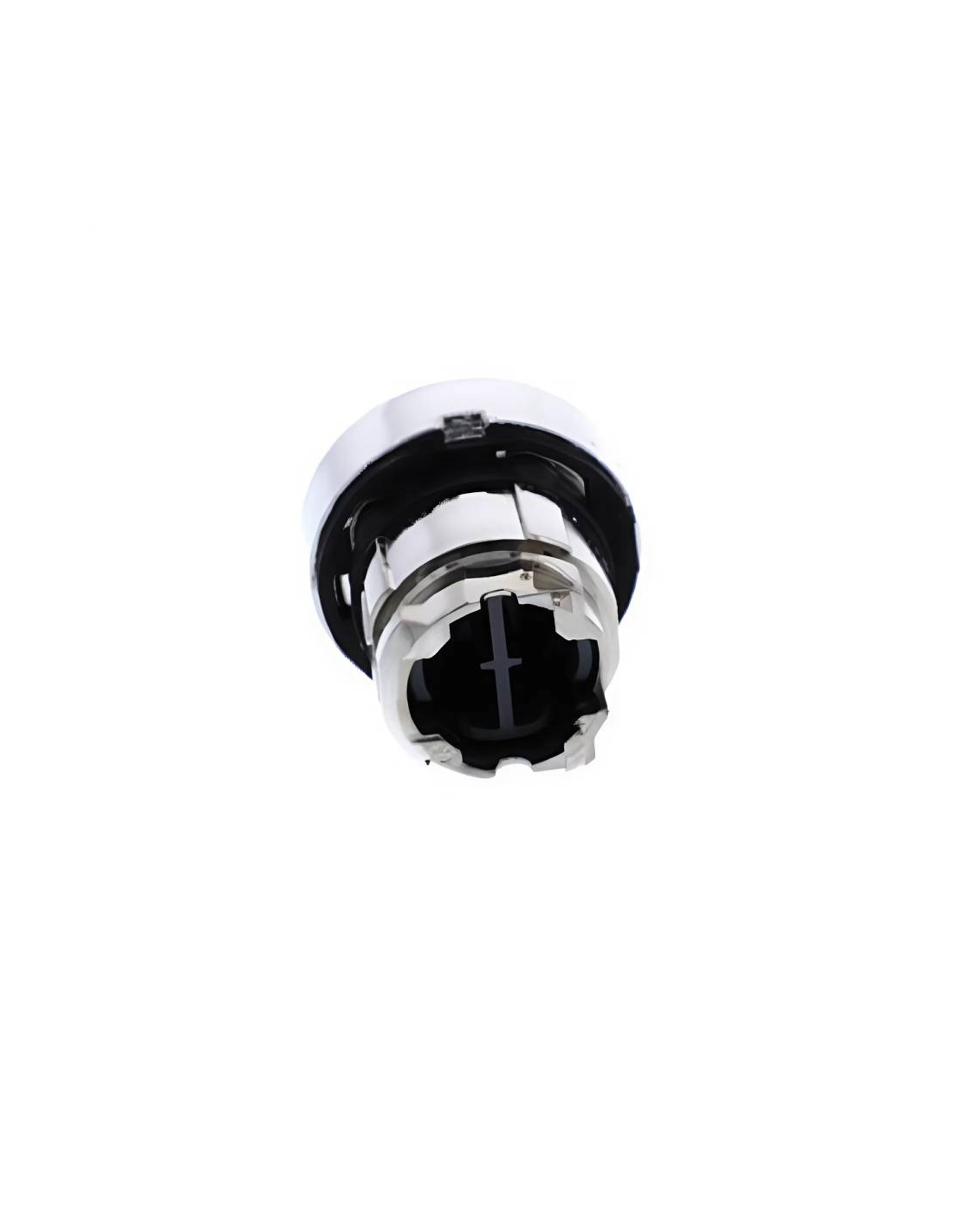

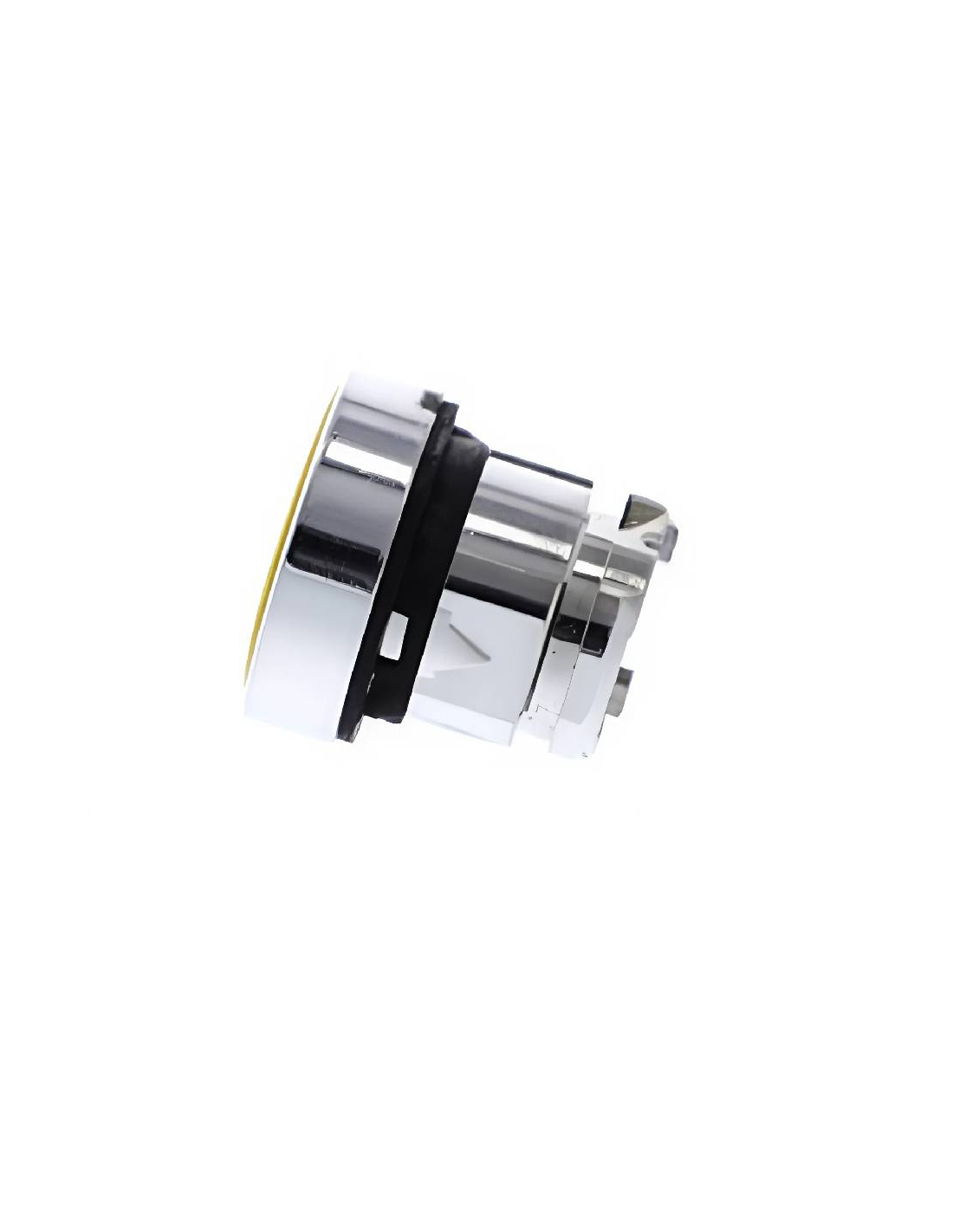

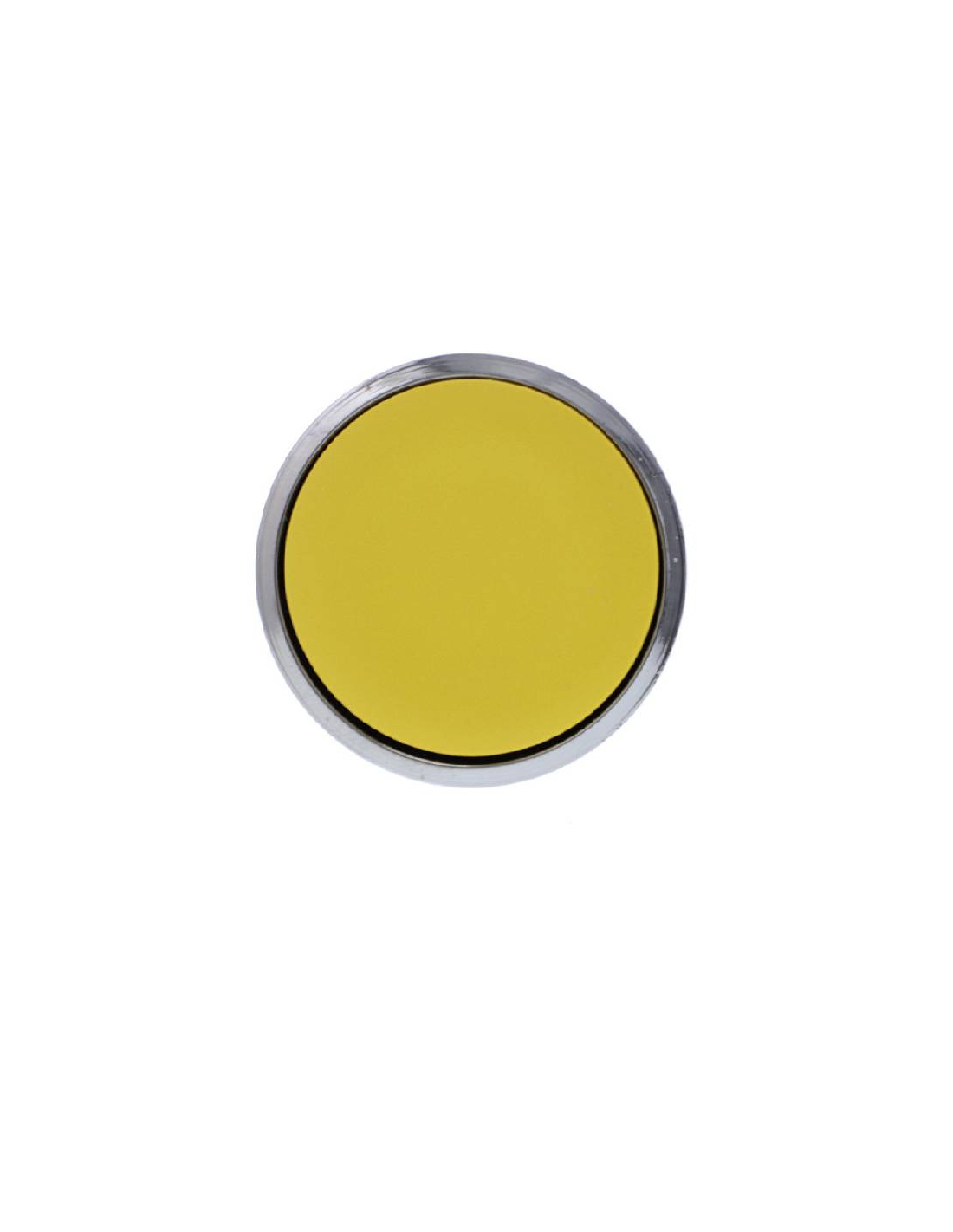

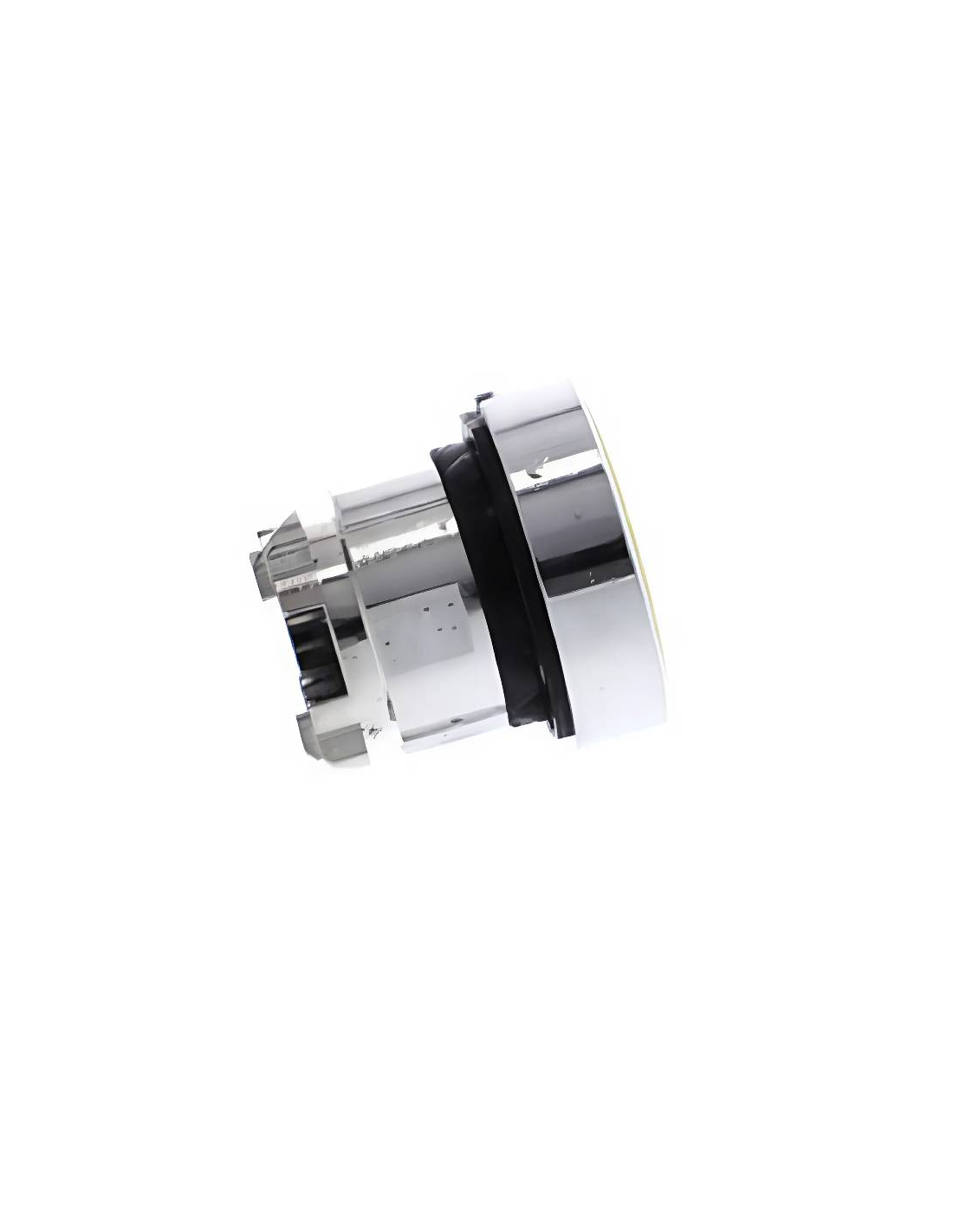

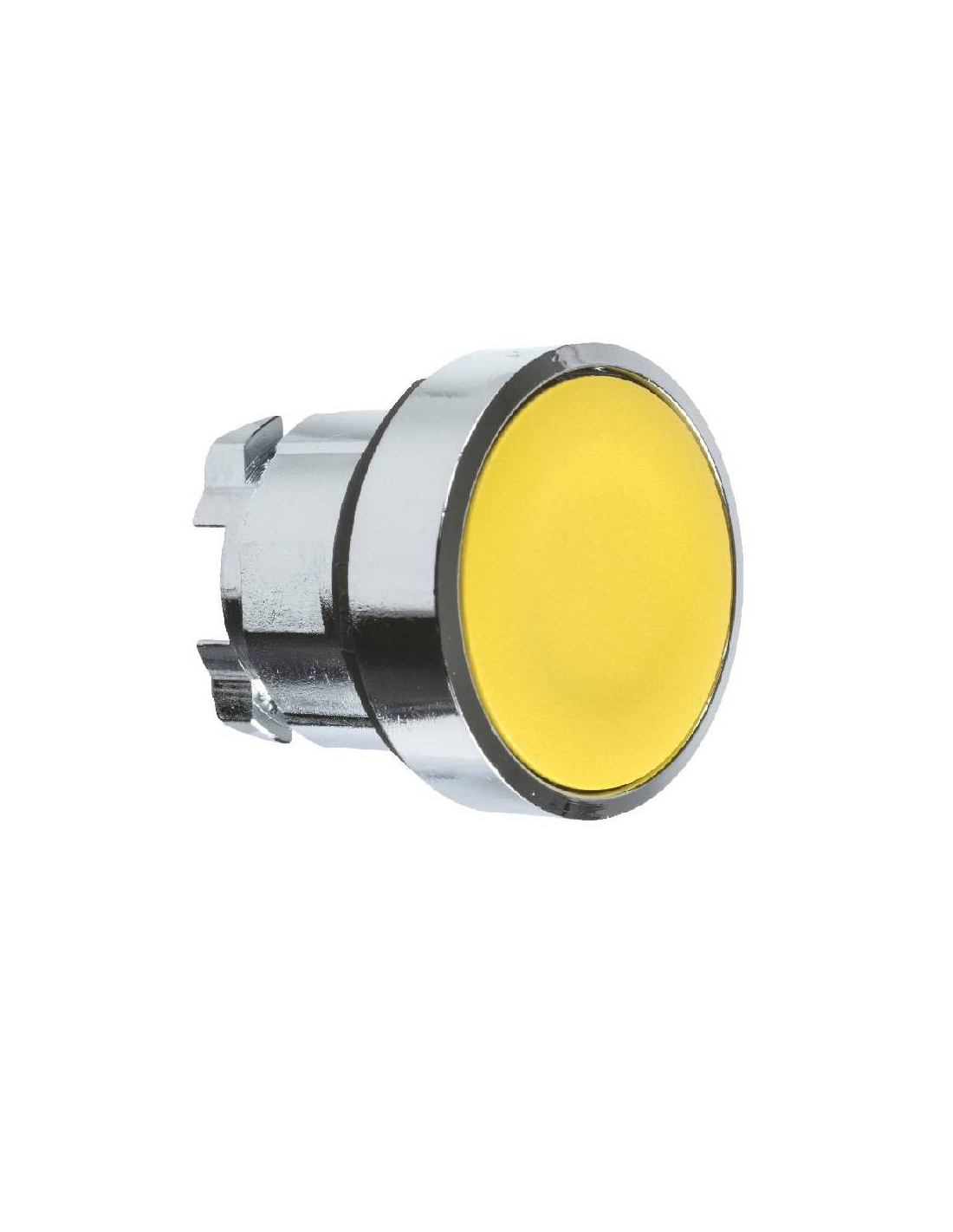

Harmony XB4 yellow metal push button head - SCHNEIDER

Flush metal push button head in yellow color, diameter 22 mm. Based on a spring-loaded impulse/return mechanism (instantaneous action), it features an ergonomic interface for machine and process control. Easily replaced on complete pushbutton units and compatible contact blocks by snap-in mounting. Installs in standard 22.5 mm diameter knockouts.

Its design features high impact, dust, water and vibration resistance thanks to its IP66 degree of protection, making it suitable for operation in demanding environments. Its chrome-plated bezel makes it ideal for applications requiring good chemical resistance or double electrical isolation.

No contacts are included in the scope of delivery, these must be purchased separately.

Characteristics:

• Manufacturer: SCHNEIDER
• Ref. No.: ZB5AA5
• HARMONY XB4 SERIES
• Operator profile: Flush yellow, without marking
• Operator type: Spring return
• Mounting diameter: 22,5mm
• Mechanical durability: 10000000 cycles
• Operating Temperature: -40...70C
• Overvoltage category: Class I according to IEC 60536
• IP degree of protection: IP66 according to IEC 60529
• IK degree of protection: IK06 according to IEC 50102

For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
