1 1/4 female shut-off valve with discharge valve - Aignep

Name: 1 1/4 female shut-off valve with discharge valve - Aignep
Brand: Aignep
SKU: 6076114
Price: 35.9737 EUR
Availability: PreOrder

€35.97 Tax included

€30.23 tax excl.

Series: GHILUX
Reference: 6076 1 1/4 aignep 6755lregulations

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

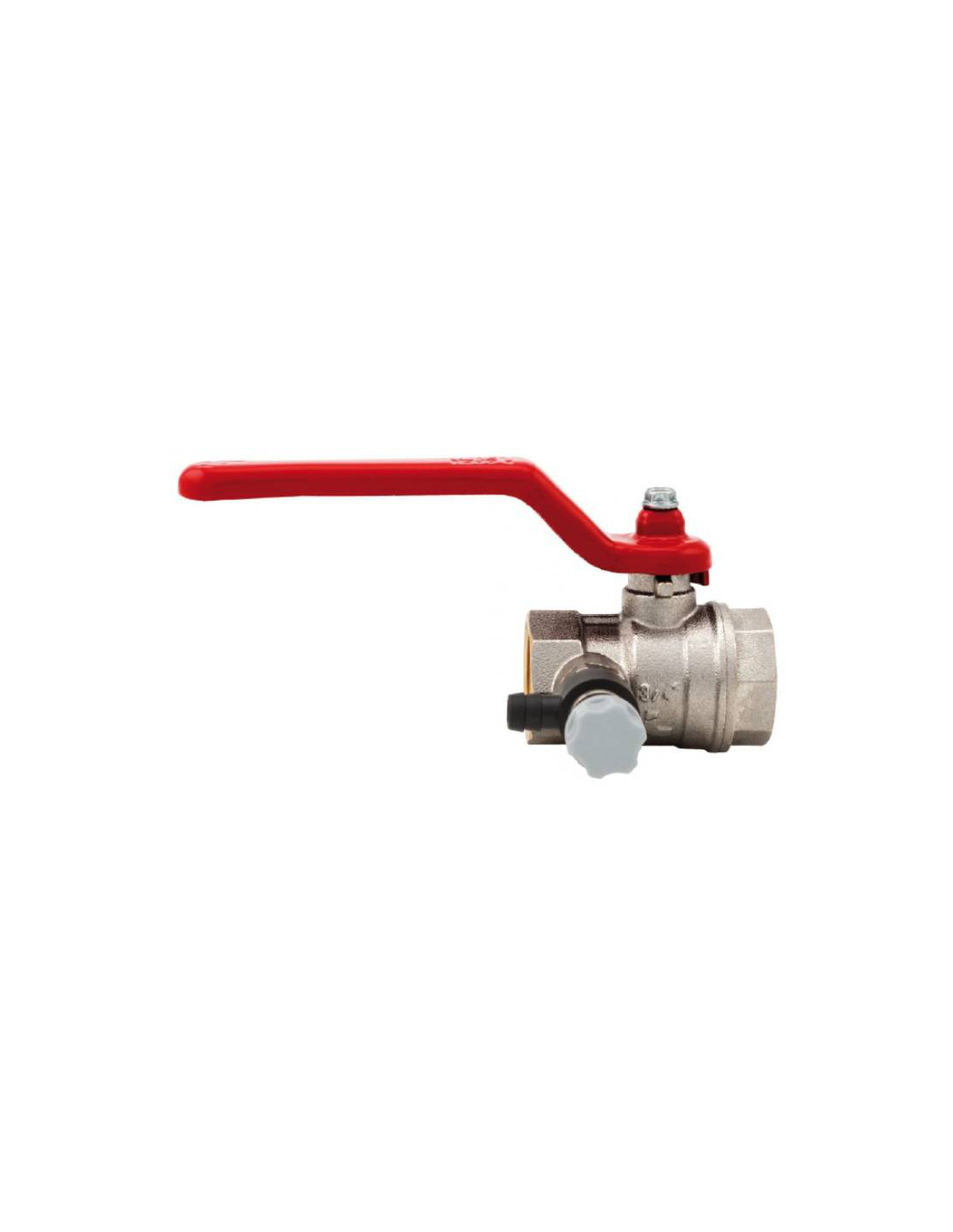

Shut-off valve or G1 1/4 female ball valve (ISO 228 compliant), lever operation. Body made of nickel-plated brass and steel lever. Valve provided with a discharge valve that allows regulating the flow in hydraulic, heating, conditioning and pneumatic systems.

This valve consists of a hollow sphere with a slot on one side. The sphere is inserted into a plate at the end of the valve, by pressing on the end of the valve the sphere moves within the plate to close or allow the flow of liquid.

6076MATERIALS

Technical characteristics:

Manufacturer: Aignep
Reference: 6076 1 1/4
Thread: Female 1 1/4 (Gas cylindrical thread conforming to ISO 228)
Body Material: Nickel Plated Brass
Maximum pressure: 20 bar
Temperature: -20C to +100C, in the absence of steam

Dimensions:

6076 dimensions

For more information you can download the technical sheet by clicking on the "Attachments" tab .

Material for professional use, install in compliance with the regulations in force at the installation site.
