Bearing 6218 90x160x30mm ISB

€45.26 Tax included

€38.03 tax excl.

Open bearing series 6218 dimensions 90x160x30mm. Rigid single row ball bearing, without sealing, made of steel.

Ref: 6218

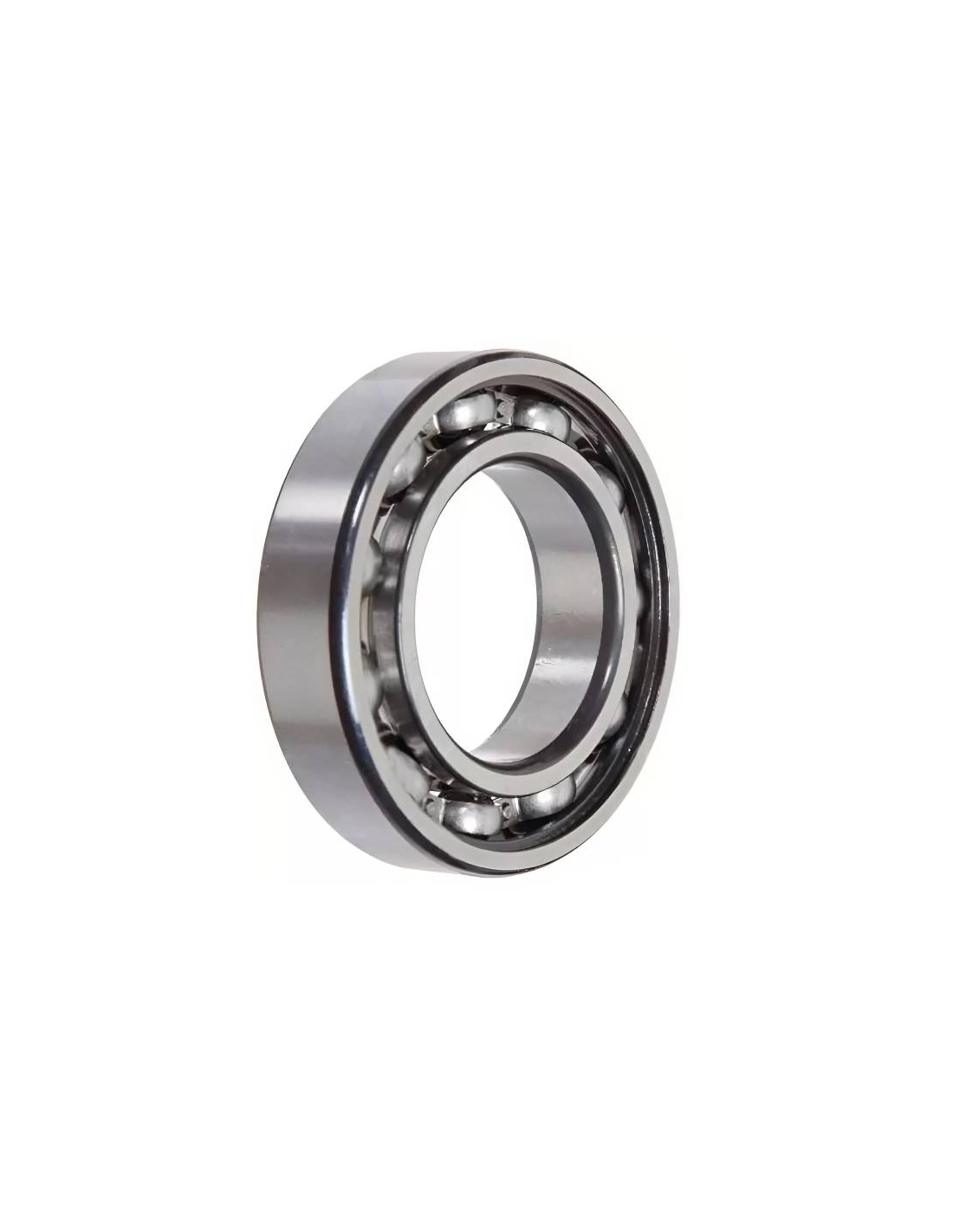

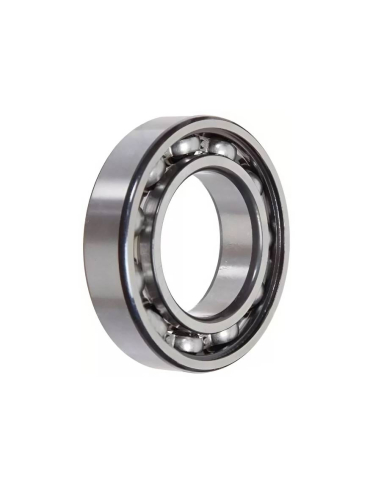

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


6218 rigid ball bearing without sealing, according to DIN 625-1, one row ball, 6200 series, made of steel.

Dimensions: 90x-160x30mm.

Rigid single row ball bearing, series 200 according to DIN 625-1, without any kind of opturing (open).

This type of bearings are suitable for operating temperatures up to +120oC.

Dimensions: 90x-160x30.

For other references or measures consult.

Dimensiones rodamientos

Features:

  • Material: hardened steel.
  • Dimension d: 90mm.
  • Dimension D: 160mm.
  • Dimension B: 30mm.
  • Shutter: NO.
  • Dynamo load capacity Cr (N): 96500.
  • Static load capacity C₀r (N): 72000.
  • Limit speed ng (min⁻1): 9000.
  • Weight: 2.21Kg

Material for professional use, install in compliance with the regulations in force at the installation site.
