Double-direction axial ball bearing with spherical housing rings 54306 25x60x41.2mm - FAG

€123.52 Tax included

€103.80 tax excl.

Double direction thrust ball bearing with spherical housing rings 54306 , dimensions 25x60x41.2mm, inner diameter 25mm, outer diameter 60mm, width 41.2mm. These bearings consist of shaft rings, spherical housing rings and ball cage. The bearings are not self-retaining and for this reason the ball cage and bearing rings can be mounted separately. They are particularly suitable for supporting axial loads in both directions. Thrust ball bearings with spherical housing rings compensate for static shaft alignment errors.

Reference: 54306 FAG

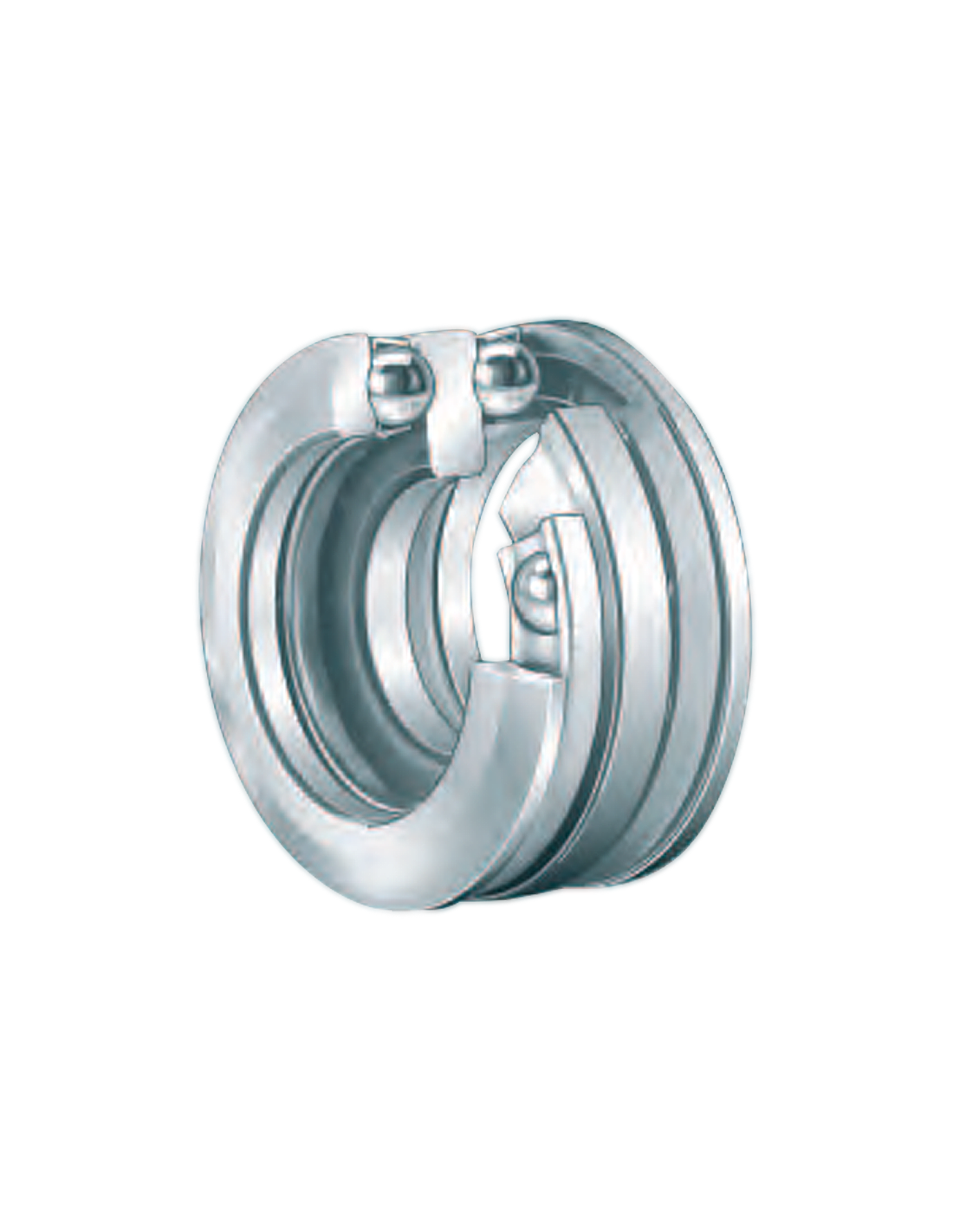

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Double direction thrust ball bearing with spherical housing rings 54306, dimensions 25x60x41.2mm, inner diameter 25mm, outer diameter 60mm, width 41.2mm. These bearings consist of shaft rings, spherical housing rings and ball cage assembly. The bearings are not self-retaining and for this reason the ball cage assembly and bearing rings can be mounted separately. They are particularly suitable for supporting axial loads in both directions. Thrust ball bearings with spherical housing rings compensate for static shaft alignment errors.

The main dimensions for double direction thrust bearings correspond to DIN 715. The dimensional and shape tolerances correspond to tolerance class PN, according to DIN 620-3.

Axial ball bearings can be used for operating temperatures from –30 °C to +150 °C limited by lubricant.

Characteristics:

Manufacturer/Distributor: FAG
Reference: 54306 FAG
Material: Steel
Dynamic load capacity, axial (Cr) _: 38000N
Static load capacity, axial (Cor) _: 65500N
Fatigue load limit, axial (Cur) _: 2850N
Limiting rotation speed (nG): 5000 1/min
Weight: 0.553 Kg

Dimensions:

Hole diameter (d): 25mm
Outer diameter (D): 60mm
Width (T2): 41.2mm
Housing ring hole diameter (D1): 32mm
Shaft ring width (B): 9mm
Minimum chamfer dimensions (r1): 0.3mm
Radius of spherical housing ring (R): 50mm
Center point distance (A): 19.5mm

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Rodamientos axiales de bolas FAG

Download (892.58KB)
