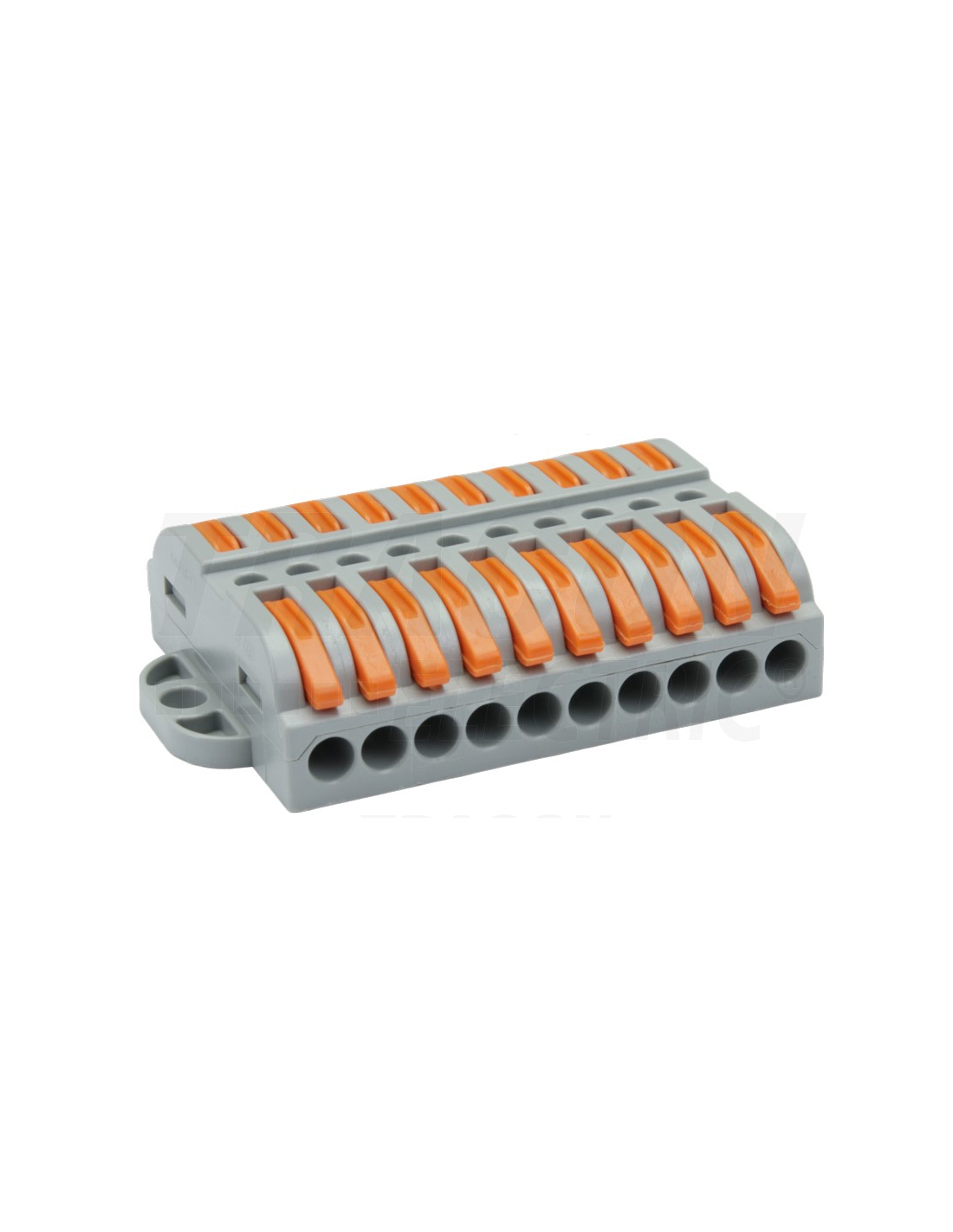

10-pole 32A double fast connection terminal

Name: 10-pole 32A double fast connection terminal
Brand: TRACON
SKU: OVOFT1010
Price: 3.2844 EUR
Availability: InStock

€3.28 Tax included

€2.76 tax excl.

10-pole quick connection double terminal 32A, 400Vac for conductors from 0.5 to 4mm2. Screwless quick connection ensures a simple and safe electrical connection.

Part number: OVOFT1010

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

10-pole 32A 400Vac double quick connection terminal, for rigid and flexible conductors with cross-section between 0.5 - 4mm2. Screwless quick connection by means of a push-in system that allows easy connection and disconnection of the conductor.

Its connection system allows the terminal to be reusable as many times as necessary. Ideal for secure electrical connections, they guarantee an optimal termination without the need for tools while speeding up installation. Compact size.

Features

Manufacturer/Supplier: Tracon
Part number: OVOFT1010
Conductor cross-section: 0.5 - 4mm²
Rated current: 32A
Rated voltage: 400V
Number of poles: 10
Insulation material: Polycarbonate (PC)
Material of contact: Tin-plated electrolytic copper
Flammability class of insulation material according to UL94: V0
Operating temperature: ^-10oCto ^+55oC
Degree of protection: IP20

Dimensions:

L: 39.3mm; W: 65.6mm; H: 14.5mm

Material for professional use, install in compliance with the regulations in force at the place of installation .
