Electric pedal with protection cover - 06V0000007
Electric pedal with protection cover - 06V0000007

Electric pedal with protection cover - 06V0000007

€35.19 Tax included

€29.57 tax excl.

Electric pedal monostable, of immediate action9 manufactured in thermoplastic with protection cover. They are equipped with a NO/NC changeover contact

Foot switches are used as control switches for machines and equipment when the operator needs to have his hands free. The electrical contact is activated for as long as pressure is applied with the foot.

Color: yellow

Part number: 06V0000007 (PCI-00)



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Product customization

Don't forget to save your customization to be able to add to cart
  • optional 250 char. max

No queries yet, leave the first!
Privacy
Shipments
Returns

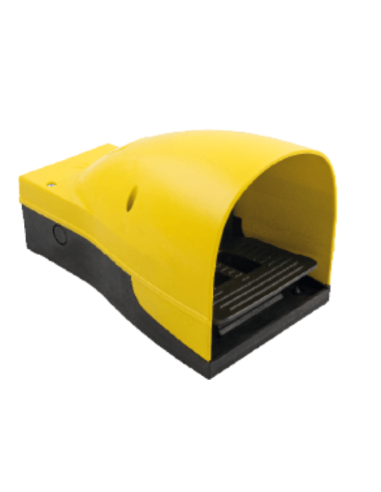

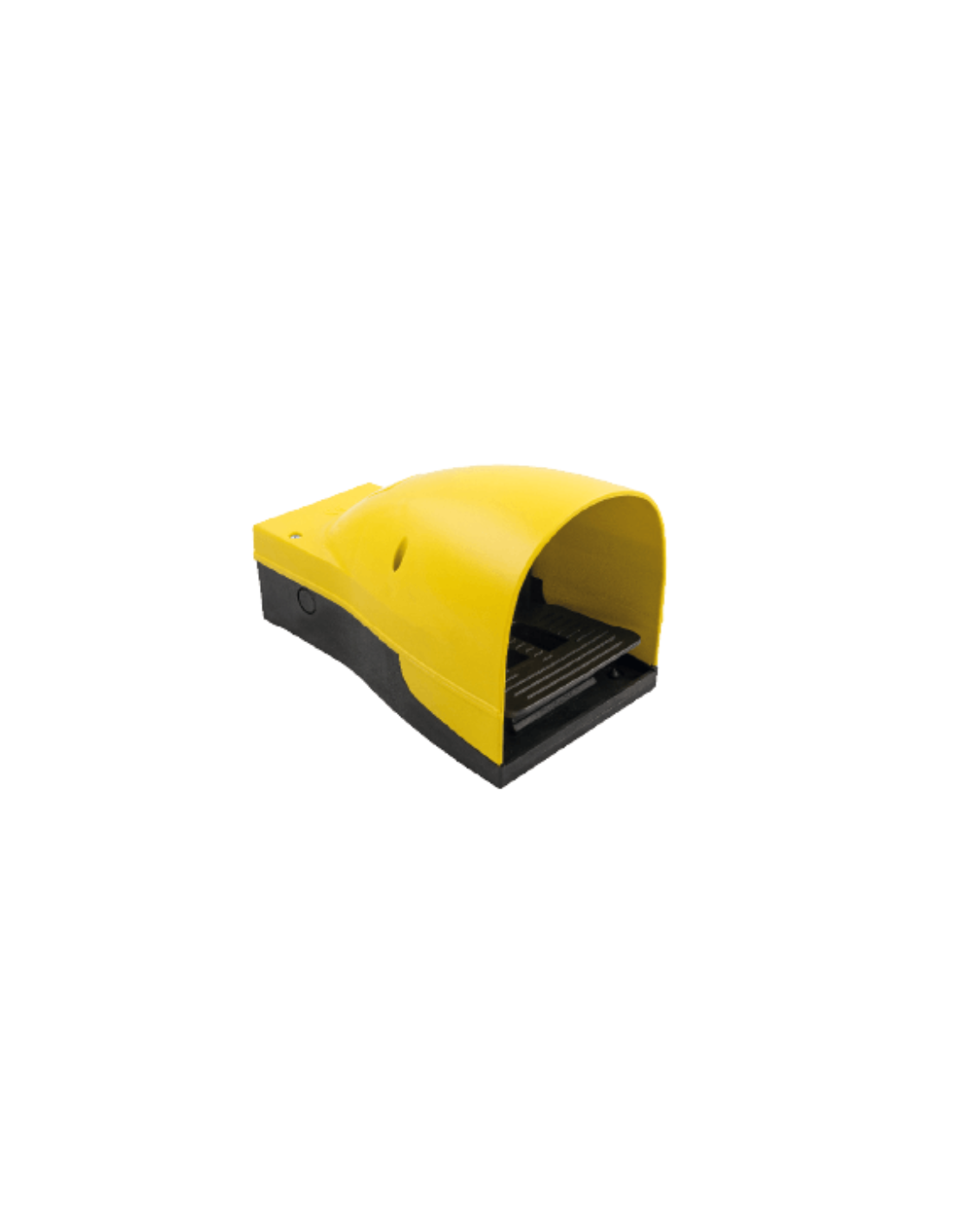

Electric pedal with mechanical interlocking device, made of high resistance thermoplastic material with protection cover for industrial and general applications. The electric pedal incorporates an open electrical contact (NO/NC).

Foot switches are used as control switches for machines and equipment when the operator needs to have his hands free to perform other functions. The foot pedal will remain activated for the duration of the foot pressure, returning to the initial position, rest, once the pressure is released.

The pedals are equipped with protection cover to prevent accidental operation due to falling objects or accidental presses.

The degree of protection of the electric pedal is IP-65.

Summary of features:

  • Manufacturer: Aignep
  • Part number: 06V0000007 (PCI-00)
  • Material: Thermoplastic.
  • Color: Yellow (pantone 102C).
  • Contact type: NO/NC.
  • Maximum insulation voltage (Ui): 690V.
  • Rated thermal current (Ith): 10A.
  • Degree of protection: IP65.
  • Ambient operating temperature: -25º...+70ºC.
  • Conformity: IEC/EN60947-5-4.

Dimensions:



Material for professional use, install in compliance with the regulations in force at the place of installation.
