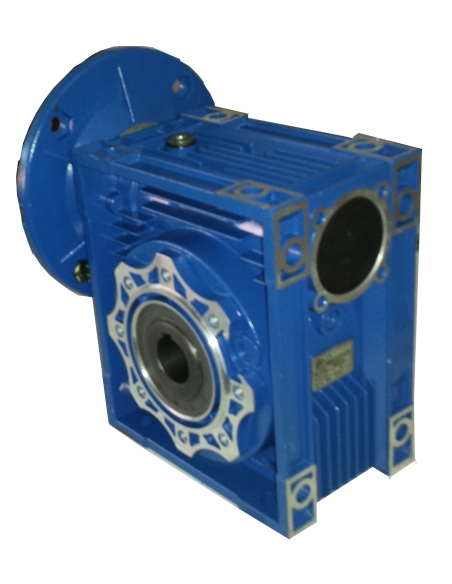

Reducer worm wheel size 50 Flange PAM 105/14 - Motor housing 71 B14

€108.50 Tax included

91.18 tax excl.

YDSEG5071B1440

With hollow output shaft Ø25mm, and flange input shaft PAM 105/14 (Ø Ext 105mm and Ø Input shaft 14mm) type B14, suitable for motors with housing size 71.

Gear ratios: 5-7,5-10-15-20-20-25-30-40-50-60-80-100

Power ratings of the usual motors at 1500 rpm are:

  • 0.33hp max. net. i=80.
  • 0,50CV Max. mains. i=60.
  • 0,75CV Reduced casing. Max. net. i=30.


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Reduction ratio
  • 7.5
  • 10
  • 15
  • 20
  • 25
  • 30
  • 40
  • 50
  • 60
  • 100
  • 80
  • 5

No queries yet, leave the first!
Privacy
Shipments
Returns


Reducer size 50 worm gearbox, compact design and high performance, with Ø25mm output hollow shaft and Ø14mm input shaft.

This size of gearbox supports motors with flange B14 size 71, this size of flange has an O.D. of 105mm and the gearbox has an input shaft diameter of 14mm, PAM 105/14.

Dimensiones brida entrada reductor sinfin corona

  • P: 105mm
  • M: 85mm
  • N: 70mm
  • D: Ø14mm

The motor power ratings at 1500 rpm usually used for this type of gearboxes and with higher service factor fs≥1 are:

  • 0,33CV 1500rpm. Maximum reduction I= 80.
  • 0.5CV 1500rpm. Maximum reduction I= 60.
  • 0.75hp 1500rpm, reduced casing. Maximum reduction I=30.

The available reduction ratios (i) are from 5 to 100, depending on the input revolutions we can obtain the following revolutions on the output shaft shown in the following table.

Tabla de revoluciones de salida reductores

Dimensiones sinfin corona tamaño 50

You can download the complete dimensions of the gearbox by clicking on the "ATTACHMENTS" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
