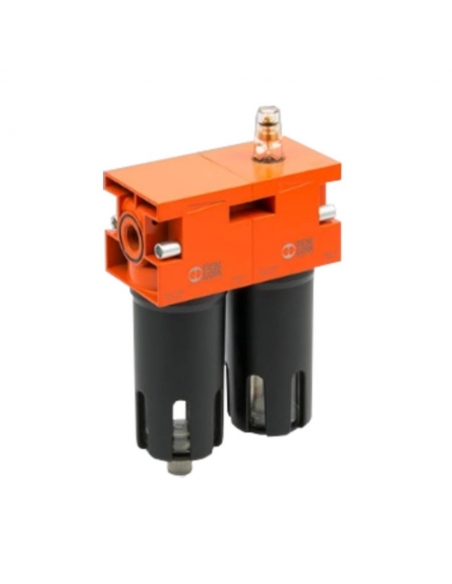

Pneumatic filtering and lubrication unit 1 filtering degree 20 semi-automatic purge New Deal series - Metal Work

Pneumatic filtration and greasing unit with 1" New Deal series thread, with semi-automatic purge. Made of high-resistance technopolymer and threads on metal support

Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. The filter discharge system is by means of a semi-automatic purge of condensation, independent of pressure and flow.

Characteristics of the filter group:

• Manufacturer: Metal Work
• Manufacturer reference: F+L 1 20 RMSA
• Code: 1633006
• Thread size: 1"
• Lubrication: Fog.
• Condensate drain type: RMSA (manual condensate drain and automatic drain when pressure is removed)
• Metal glass with external viewer.
• Filtration degree ( μm) : 20
• Maximum inlet pressure (MPa / bar / psi): 1.8 / 18 / 261
• Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 8000
• Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) ( Nl/min): 9500
• max temperature at 1 MPa; 10 bar; 145psi ( °C): 50
• Wall fixing screws: M6x75
• Fluid: compressed air

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
