Pack

Regulator pressure 1/2 0-8 bar complete Aignep FRL Evo series : ADAJUSA : price

Regulator pressure 1/2 0-8 bar complete Aignep FRL Evo series : ADAJUSA : price

Regulator pressure 1/2 0-8 bar complete Aignep FRL Evo series : ADAJUSA : price

Regulator pressure 1/2 0-8 bar complete Aignep FRL Evo series : ADAJUSA : price

Regulator pressure 1/2 0-8 bar complete Aignep FRL Evo series : ADAJUSA : price

Regulator pressure 1/2 0-8 bar complete Aignep FRL Evo series : ADAJUSA : price

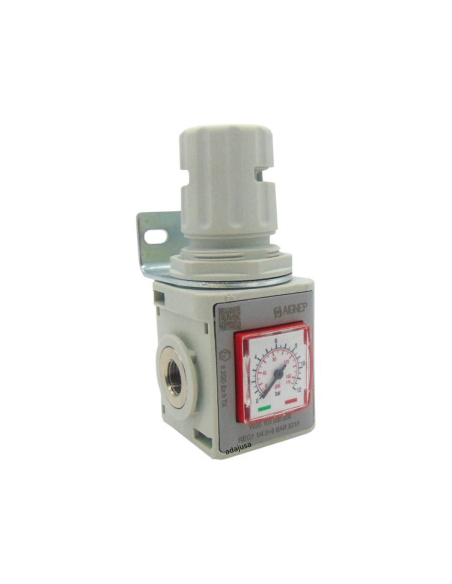

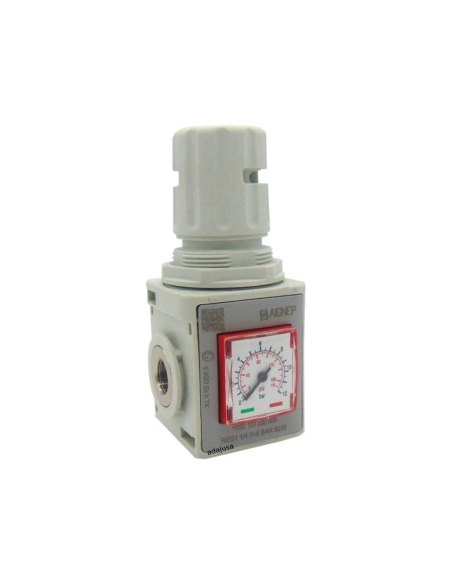

Regulator pressure with pressure gauge and lockable 1/2 0-8 bar complete size 2 FRL EVO - series Aignep

€45.67 Tax included

38.38 tax excl.

Instead of €47.20

PK-Y020205030000

Regulator with integrated 1/2 fullpressure gauge , with regulation between 0-8 bar, size 2, technopolymer body and metal endings, extreme reliability. Allows stability of the outlet pressure at the preset pressure. Possibility of fixing by means of lateral holes. Padlocking system. Made in Italy.

Series: FRL Evo
Reference: PK-Y020205030000

Logotipo Aignep
normativa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

1x

Regulator pressure 1/2 0-8 bar Aignep FRL Evo series : ADAJUSA : price

Regulator pressure with pressure gauge and lockable 1/2 0-8 bar size 2 series FRL EVO - Aignep

€46.11

1x

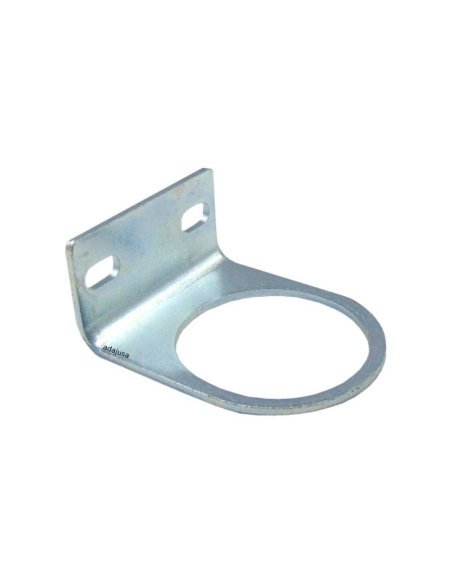

Squad fixing for Aginep FRL EVO series filtering unit : ADAJUSA : price

Fixing bracket size 2 for filtering group 3/8 and 1/2 FRL EVO series - Aignep

€1.08

No queries yet, leave the first!

Regulator pressure regulator with integrated 1/2 fullpressure gauge , regulation 0-8 bar, body made of high resistance technopolymer, and with metallic endings. Allows stability of the outlet pressure to the preset pressure starting from an equal or higher inlet pressure. Compact size (T2). Fasteningby means of lateral holes. Knob with padlockable lock.

REGULAADOR BLOQUEO FRL EVO

Dimensiones escuadra grupo friltrante MINI FRL Aignep Adajusa

Delivery includes:

Regulator pressure regulator with integrated pressure gauge
Squad size 2 mounting brackets

Technical characteristics of the regulator:

Manufacturer Aignep
Part number: Y020205030000
Regulator size: size 2.
Threaded connection size: 1/2".
Regulating range: 0-8 bar.
Maximum inlet pressure: 15 bar.
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 4000
Fluid: Compressed air or other inert gases
Wall mounting screws: M5x15
Mounting position: Vertical.
Working temperature: -10 to +50ºC.

Dimensiones regulador syntesi talla 1 Metal Work

CAUDAL REGULADOR T1

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"

Catalogo FRL EVO

Download (4.94MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Metal filter group (Filter + Lubricator) Metal Work - ADAJUSA

Filter groups 1/2

Pneumatic filter group 1/2 regulation 0-12 bar semi-automatic purge New Deal series -...

€122.57 (€103.00 tax excl.)

1/2 filter group, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size in 2 modules (FR+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.Series: New DealReference: 1426054 Representative image for...

Filter + Lubricator T2 RMSA Syntesi - Metal Work - ADAJUSA

FR + LUB Syntesi

Pneumatic filter group 1/2 regulation 0-12 bar semi-automatic purge Syntesi series -...

€109.87 (€92.33 tax excl.)

1/2" filter group, 1/2" maintenance unit for pneumatic applications, purge semi-automatic, compact size (SY2) in 2 modules (FR+L) and regulation range 0-12 kg/cm2. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: Synthesis Reference: 5624B26L104...

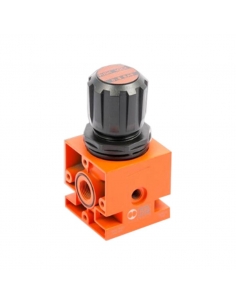

1/2 metallic pressure regulator - Metal Work - ADAJUSA

New Deal Regulator

Metallic pressure regulator 1/2 04 bar New Deal - Metal Work

€49.30 (€41.43 tax excl.)

Pressure regulator of 1/2 regulation 04, with metal body, extremely reliable and robust. Allows stability of the output pressure at the preset pressure. Possibility of fixing through side holes. New Deal Group Pressure gauge not included (can be ordered separately) Reference: 1402001 Representative image for illustrative purposes, the supplied...

1/2 metallic pressure regulator - Metal Work - ADAJUSA

New Deal Regulator

Metallic pressure regulator 1/2 08 bar New Deal - Metal Work

€49.30 (€41.43 tax excl.)

1/2 regulation 08 pressure regulator, with a metal body, extremely reliable and robust. Allows stability of the output pressure at the preset pressure. Possibility of fixing through side holes. New Deal Group Reference: 1402002 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications....

16 other products in the same category:

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2

Pack

Gauges and measurement elements

Pressure gauge with glycerin 0 - 10 bar for 63mm panel with stand - Metal Work

PK-MAN6320G4G10SOP

€15.40 (€12.94 tax excl.)

Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 10 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel...

Manometer Ø50 1/4 0-12 Kgr metal box - ADAJUSA

Manometer Ø50 1/4 0-12 Kgr metal box - ADAJUSA 2

Gauges and measurement elements

Manometer diameter 50 1/4 0-12 bar back plastic box - Metal Work

€6.13 (€5.15 tax excl.)

Pressure gauge Ø50 with 1/4" plastic case. Pressure gauge to control the pressure of the machine to be used. Reference: MP5314012Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

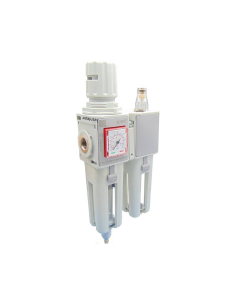

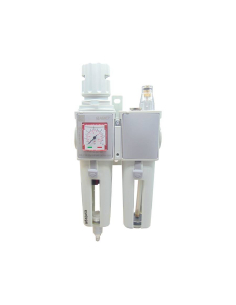

Pneumatic filtering group 1/4 FRL EVO Series Aignep | ADAJUSA | price

Pneumatic filtering group 1/4 FRL EVO Series Aignep | ADAJUSA | price 2

Filter groups of 1/2 FR-L

Pneumatic filtering group 1/2 regulation 0-8 bar automatic purge size 2 FRL EVO series...

€127.76 (€107.36 tax excl.)

Filtering group of 1/2, maintenance unit of 1/2 for pneumatic applications, automatic drain, compact size (T2) in 2 modules (FR+L), and regulation range 0-8 bar, compact pressure gauge. These filtering groups are manufactured in technopolymer and with metallic terminations. Made in Italy.Series: FRL EvoReference: Y100205232100 Representative image...

Filter + Lubricator T2 RMSA Syntesi - Metal Work - ADAJUSA

FR + LUB Syntesi

Pneumatic filter group 1/2 regulation 0-12 bar semi-automatic purge Syntesi series -...

€109.87 (€92.33 tax excl.)

1/2" filter group, 1/2" maintenance unit for pneumatic applications, purge semi-automatic, compact size (SY2) in 2 modules (FR+L) and regulation range 0-12 kg/cm2. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: Synthesis Reference: 5624B26L104...

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2

Pack

Gauges and measurement elements

Pressure gauge with glycerin 0 - 2,5 bar for 63mm panel with stand - Metal Work

PK-MAN6320G4G2.5SOP

€15.41 (€12.95 tax excl.)

Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 2,5 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation at bar. Steel...

Lubricator 1/2 Manual Size 2 technopolymer FRL EVO series - Aignep

Filter groups of 1/2 FR-L

Lubricator 1/2 Manual Size 2 technopolymer FRL EVO series - Aignep

€37.70 (€31.68 tax excl.)

1/2" pneumatic lubricating cup in technopolymer with compact size (T2) and manual oil filling. Made in Italy. Series: FRL Evo Reference: Y040205000100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/4 metal pressure regulator and pressure gauge - Mindman

1/4 metal pressure regulator and pressure gauge - Mindman 2

Delivery in 3 days.

Filter groups of 1/2 FR-L

1/2 metal pressure regulator and pressure gauge - Mindman

€39.58 (€33.26 tax excl.)

Pressure regulator of 1/2 0-8,5 Kgrs., with metal body, high flow. Fixation by square. Integrated pressure gauge on the head. The pressure regulator is supplied with the fixing bracket. Reference: 281MAR30215A Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

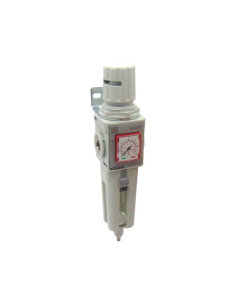

Pneumatic filter regulator 1/2 complete semi-automatic purge EVO series - Aignep | ADAJUSA | price
