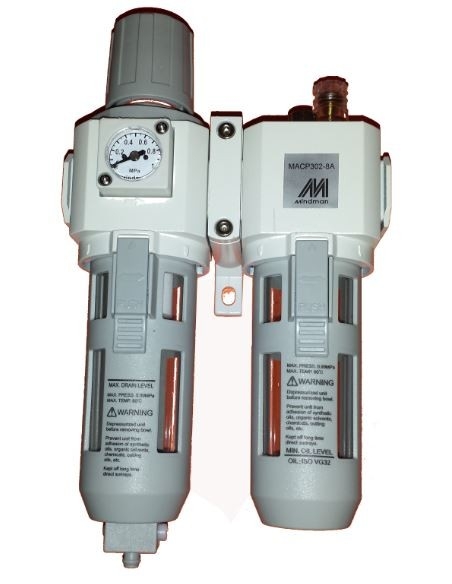

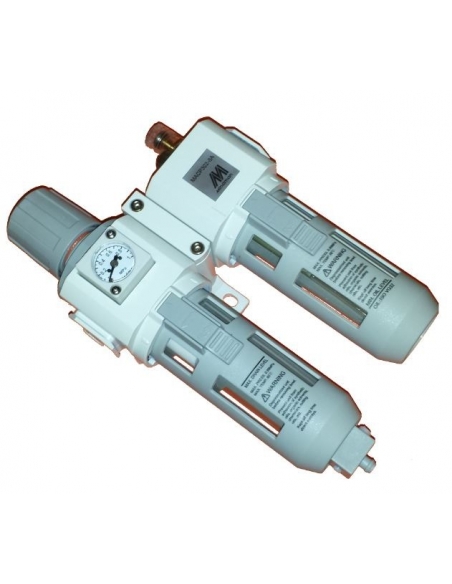

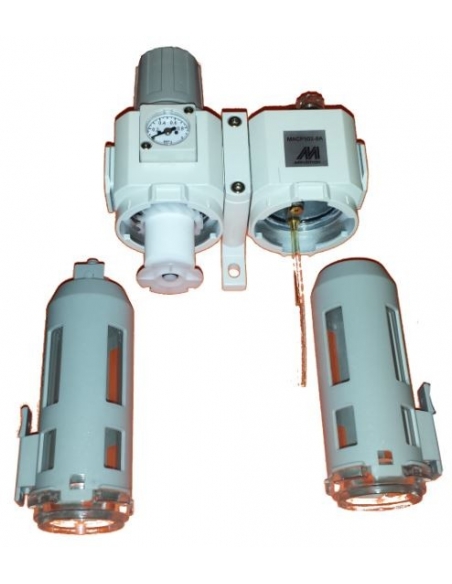

Metallic filtration group 1/2 - Mindman

Name: Metallic filtration group 1/2 - Mindman
Brand: Mindman
SKU: MACP30215A
Price: 82.0148 EUR
Availability: InStock

€82.01 Tax included

€68.92 tax excl.

Group of filter of 1/2 (Filter-regulator + lubricator) metallic and plastic cups, with integrated pressure gauge on the head.
Capacity of the vessels: 65 c.c.
Reference: 281MACP30215A

simbolo grupo filtrante neumático

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Filtration group of 1/2,pneumatic maintenance unit, filter-regulator + lubricator (FR +L) body made of metal and plastic cups. The pressure gauge is integrated into the regulator.

Among the main characteristics of this filter group has a large flow rate, high robutes and easy handling for regulation, emptying of the filter vessel and oil replacement in the lubrication element.

Characteristics of the filtering group:

- Manufacturer: Mindman.
- Manufacturer reference: MACP302-15A.
- Number of elements: 2 (FR+L).
- Thread size: G 1/2".
- Regulation range: 0-8.5 Kgr/cm².
- Maximum inlet pressure: 10 Kgr/cm².
- Test pressure: 15 Kgr/cm².

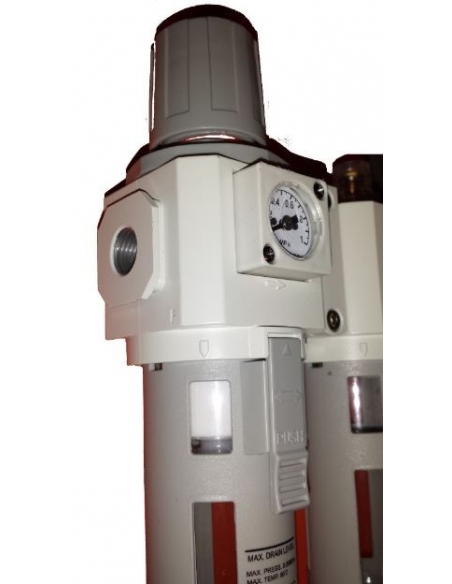

- Integrated pressure gauge on the pressure regulator.
- effective pitch diameter: 34 mm2.
- Filtration grade: 40 μm. (Optional 5 μm)
- Purge of manual-semi-automatic condensation.
- Glasses with external viewfinder.
- Vessel capacity: 65 c.c.
- Type of flea: semi-automatic.
- Type of lubrification: mist.
- Minimum flow rate to ensure lubrication: 60 l/min.
- Mounting form: Vertical.
- Fixing support: Included.

For other sizes or references: see.

Dimensiones grupo filtrante 1/4 MAR302 Mindman

Caudal grupo filtrante MACP302 Mindman

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

Regulation and filtration catalo

Regulation and filtration catalog

Download (1.84MB)

MACP302 filtering group sheet

MACP filtering groups technical data sheet Mindman (English)

Download (585.12KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Metal filtration group 1/2 - Mindman 403

Mindman

MACP40315

€98.16 (€82.49 tax excl.)

Filter group of 1/2 (Filter-regulator + lubricator) metallic and plastic cups, with manometer integrated on the head group 403Capacity of the vessels: 140 c.c.Reference: 281MACP40315 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

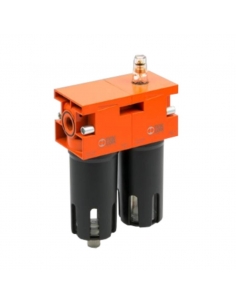

Metal filter group (Filter + Lubricator) New Deal Metal Work - ADAJUSA

FIL + LUB New deal

Pneumatic filtering and lubrication unit 1/2 degree filtering 20 semi-automatic purge...

Metal Work

1433006

€88.74 (€74.57 tax excl.)

Pneumatic filtration and greasing unit with 1/2 New Deal series thread, with semi-automatic purge. Made of high-resistance technopolymer and threads on metal supportReference: 1433006 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

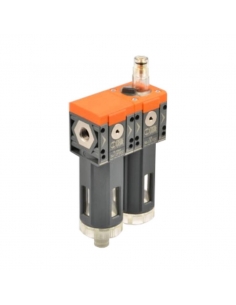

Filter + Lubricator Syntesi - Metal Work - ADAJUSA

FIL + LUB Syntesi

Pneumatic filtering and lubrication unit 1/2 filtering degree 20 semi-automatic purge...

Metal Work

5624F20L104

€85.01 (€71.44 tax excl.)

Pneumatic filtration and greasing unit with 1/2 thread Syntesi series size SY2, with semi-automatic drain. Made of high-resistance technopolymer and threads on metal supportReference: 5624F20L104 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

FIL + LUB Syntesi

Pneumatic filtering and lubrication unit 1/2 filtering grade 20 semi-automatic purge...

Metal Work

5X24F20L104

€89.31 (€75.05 tax excl.)

Pneumatic filtration and greasing unit with 1/2 thread Syntesi series size SY2, with semi-automatic drain. Made of high-resistance technopolymer and threads on a metal support. Anti-corrosion system .Reference: 5X24F20L104 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

16 other products in the same category:

Filter + Regulator + Lubricator New Deal - Metal Work - ADAJUSA

Filter groups 1/2

Pneumatic filter group 1/2 regulation 0-12 bar automatic drain New Deal series - Metal...

Metal Work

1424058

€198.75 (€167.02 tax excl.)

1/2 filter group, 1/2 maintenance unit for pneumatic applications, automatic drain, in 3 modules (F+R+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.Series: New DealReference: 1424058 Representative image for illustrative...

Filter groups of 1/2 FR-L

Pneumatic filtering group 1/2 regulation 0-8 bar automatic purge size 2 FRL EVO series...

Aignep

Y100205232100

€124.93 (€104.98 tax excl.)

Filtering group of 1/2, maintenance unit of 1/2 for pneumatic applications, automatic drain, compact size (T2) in 2 modules (FR+L), and regulation range 0-8 bar, compact pressure gauge. These filtering groups are manufactured in technopolymer and with metallic terminations. Made in Italy.Series: FRL EvoReference: Y100205232100 Representative image...

Filter groups of 1/2 FR-L

Pneumatic filter-regulator 1/2 0-8 bar automatic purge size 2 FRL EVO series - Aignep

Aignep

Y030205232000

€83.59 (€70.24 tax excl.)

Filter with pneumatic pressure regulator 1/2, maintenance unit 1/2 for pneumatic applications, automatic purge, compact size (T2) and regulation range 0-8 bar, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metal endings. Made in Italy.Series: FRL Evo Reference: Y030205232000 Representative image for...

Filter groups of 1/2 FR-L

Pneumatic filter-regulator 1/2 0-12 bar semi-automatic purge size 2 FRL EVO series -...

Aignep

Y030205241000

€60.49 (€50.83 tax excl.)

Filter with pneumatic pressure regulator 1/2, maintenance unit 1/2 for pneumatic applications, semi-automatic purge, compact size (T2) and regulation range 0-12 bar, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metal endings. Made in Italy.Series: FRL Evo Reference: Y030205241000 Representative image for...

Filter groups of 1/2 FR-L

Pneumatic filtering group 1/2 regulation 0-12 bar semi-automatic purge size 2 FRL EVO...

Aignep

Y100205241100

€101.84 (€85.58 tax excl.)

Filtering group of 1/2, maintenance unit of 1/2 for pneumatic applications, semi-automatic purge, compact size (T2) in 2 modules (FR+L), and regulation range 0-12 bar, compact pressure gauge. These filtering groups are manufactured in technopolymer and with metallic terminations. Made in Italy.Series: FRL EvoReference: Y100205241100 Representative...

Filter groups of 1/2 FR-L

Pneumatic filtering group 1/2 regulation 0-8 bar semi-automatic purge size 2 FRL EVO...

Aignep

Y100205231100

€101.84 (€85.58 tax excl.)

Filtering group of 1/2, maintenance unit of 1/2 for pneumatic applications, semi-automatic purge, compact size (T2) in 2 modules (FR+L), and regulation range 0-8 bar, compact pressure gauge. These filtering groups are manufactured in technopolymer and with metallic terminations. Made in Italy.Series: FRL EvoReference: Y100205231100 Representative...

Filter groups of 1/2 FR-L

Lubricator 1/2 Automatic Size 2 technopolymer FRL EVO series - Aignep

Aignep

Y040205000200

€47.84 (€40.20 tax excl.)

1/2" pneumatic lubricating cup in technopolymer with compact size (T2) and automatic oil filling by depression. Made in Italy. Series: FRL Evo Reference: Y040205000200200 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2

Pack

Gauges and measurement elements

Pressure gauge with glycerin 0 - 2,5 bar for 63mm panel with stand - Metal Work

Metal Work

PK-MAN6320G4G2.5SOP

€16.05 (€13.49 tax excl.)

Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 2,5 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation at bar. Steel...

Filter 1/2 20 RA Size 2 Syntesi Metal Work - ADAJUSA

Filter groups of 1/2 FR-L

Filter 1/2 20 microns automatic drain size 2 Syntesi series - Metal Work

Metal Work

5624F504

€57.18 (€48.05 tax excl.)

1/2 filter, with a filtration degree of 20μm and automatic discharge, size 2, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5624F504Representative image for illustrative...

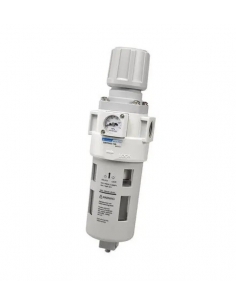

Filter-regulator 1/2 Series 403 Mindman - ADAJUSA
