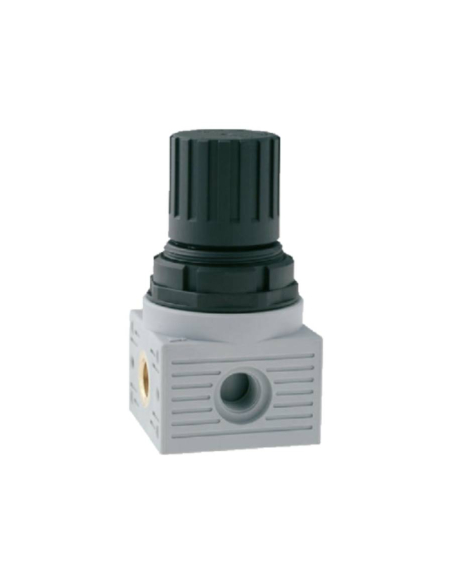

Regulator quick exhaust 1/4 0-12 bar FRL MINI series - Aignep

€17.53 Tax included

14.73 tax excl.

T070003040000

Regulator 1/4pressure regulating 0-12 bar, with technopolymer body and built-in quick exhaust valve. Allows stability of the outlet pressure at the preset pressure.

Series: FRL mini
Reference: T07000303040000

Simbolo neumatico filtro Adajusa
Logotipo Aignep Pictogramas normativa grupos filtraje FRL Mini Aignep Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Regulator 1/4"pneumatic pressure regulator, technopolymer body, with quick release valve for applications where excess pressure must be evacuated quickly. High stability of the set pressure. The regulator provides high flow rate with reduced pressure drop.

Among the main features of this filtering group, it has a high flow performance compared to its reduced size and weight, satisfying the current demand for miniaturization and performance. Manufactured in technopolymer and metallic terminations.

Characteristics:

  • Manufacturer: Aignep
  • Manufacturer's part number: T070003040000
  • Threaded actuator: 1/4"
  • Regulating range: 0-12 bar
  • Maximum inlet pressure: 15 bar
  • Flow rate at 6 bar (∆P 1 bar): 600 Nl/min
  • Medium: Compressed air or other inert gases
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.
  • Reference standard: PED 2014/68/EU

For other sizes or references: consult us.

Dimensiones filtro serie EVO Aignep Adajusa
TABLA T010 MINI

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Metal 1/4 Metal Filter-Regulator New deal Metal Work - ADAJUSA Metal 1/4 Metal Filter-Regulator New deal Metal Work - ADAJUSA 2
Filter groups of 1/4 FR-L

Filter-regulator 1/4 metallic 0-12 bar semi-automatic drain New Deal - Metal Work

Metal Work
1225054
€51.35 (€43.15 tax excl.)
Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, semi-automatic drain, regulation 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of aluminum with excellent resistance to corrosion. European manufacturing.Series: New DealReference: 1225054 Representative image for illustrative...
Filter 1/4 5 RMSA Size 1 Syntesi Metal Work - ADAJUSA
Filter groups of 1/4 FR-L

Filter 1/4 5 microns semi-automatic drain size 1 Syntesi series - Metal Work

Metal Work
5612F102
€26.62 (€22.37 tax excl.)
1/4 filter, with a filtration degree of 5μm and semi-automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5612F102Representative image for illustrative...
Filter 1/4 5 RA Size 1 Syntesi Metal Work - ADAJUSA
Filter groups of 1/4 FR-L

Filter 1/4 5 microns automatic drain size 1 Syntesi series - Metal Work

Metal Work
5612F402
€49.54 (€41.63 tax excl.)
Filter 1/4, with a filtration degree of 5μm and automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor .These filter cups are made of technopolymer and nickel-plated brass with excellent corrosion resistance. European manufacture. Series: Syntesi Part number: 5612F402Representative image for illustrative...

16 other products in the same category:

Filter-regulator 1/4 technopolymer
Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-12 bar semi-automatic drain Syntesi series - METAL WORK

Metal Work
5612B262
€44.35 (€37.27 tax excl.)
Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY1) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...
Pneumatic filter regulator 1/4 FRL MINI T030003241000 - Aignep | ADAJUSA | price
Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-12 bar series FRL MINI - Aignep

Aignep
T030003241000
€29.55 (€24.83 tax excl.)
Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, semi-automatic purge, compact size and regulation range 0-12 kg/cm2, filtration degree of 20 μm . These filtering groups are manufactured in technopolymer and with metallic terminations. Made in ItalySeries: FRL MiniReference: T030003241000 Representative...
Regulator pneumatic pressure 1/4 T020003040000 Aignep | ADAJUSA : price
Compressed air filtration and treatment groups

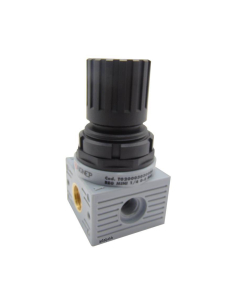

Regulator pressure 1/4 0-12 bar FRL MINI series - Aignep

Aignep
T020003040000
€17.53 (€14.73 tax excl.)
Regulator 1/4pressure, with regulation between 0-12 bar, technopolymer body and metal endings, extreme reliability. Allows stability of the outlet pressure at the preset pressure.Series: FRL MINIReference: T020003040000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Pneumatic filter 1/4 20 EVO series automatic purge | Aignep | ADAJUSA | price
Filter groups of 1/4 FR-L

Filter 1/4 20 micron automatic purge size 1 FRL EVO series - Aignep

Aignep
Y010103202000
€51.18 (€43.01 tax excl.)
Filter 1/4, with a filtration degree of 20μm and automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor .These filter cups are made of technopolymer with metal endings. Made in Italy. Series: FRL EvoPart number: Y010103202000   Representative image for illustrative purposes, the item supplied will...
Filter + Lubricator T1 RA Syntesi - Metal Work - ADAJUSA
Filter groups of 1/4 FR-L

Pneumatic filtration group 1/4 regulation 0-12 bar automatic drain Syntesi series -...

Metal Work
5612B56L102
€101.90 (€85.63 tax excl.)
1/4 filter group, 1/4 maintenance unit for pneumatic applications, automatic drain, compact size (SY1) in 2 modules (FR+L) and regulation range 0-12 kg/cm2. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5612B56L102 Representative image...
Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 6 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G6SOP
€15.40 (€12.94 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 6 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel needle....

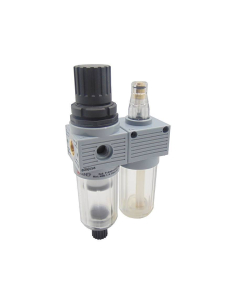

Pneumatic filtering group 1/4 FRL Mini Series Aignep | ADAJUSA | price
Compressed air filtration and treatment groups

Pneumatic filtering group 1/4 regulation 0-8 bar semi-automatic purge FRL Mini series -...

Aignep
T100003231100
€53.81 (€45.22 tax excl.)
Filtering group of 1/4, maintenance unit of 1/4 for pneumatic applications, semi-automatic purge, compact size in 2 modules (FR+L), and regulation range 0-8 kg/cm2. These filtering groups are manufactured in technopolymer and with metallic terminations. European manufacture.Series: FRL MiniReference: T100003231100 Representative image for...

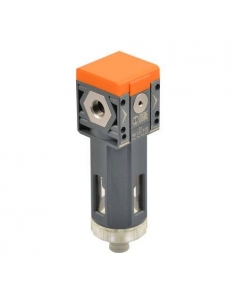

Filter 1/4 5 RA Size 1 Syntesi Metal Work - ADAJUSA
Filter groups of 1/4 FR-L

Filter 1/4 5 microns automatic drain size 1 Syntesi series - Metal Work

Metal Work
5612F402
€49.54 (€41.63 tax excl.)
Filter 1/4, with a filtration degree of 5μm and automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor .These filter cups are made of technopolymer and nickel-plated brass with excellent corrosion resistance. European manufacture. Series: Syntesi Part number: 5612F402Representative image for illustrative...

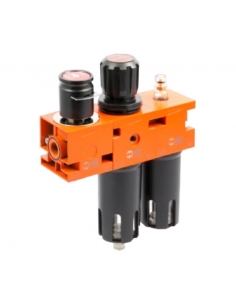

Valve + Filter + Lubricator New Deal - Metal Work - ADAJUSA
Filter groups 1/4

Shut-off Valve - Filter Reg + Lubricator 1/4 20 012 RMSA New Deal - Metal Work

Metal Work
1272054
€174.79 (€146.88 tax excl.)
1/4 filter group with manual shut-off valve, 1/4 maintenance unit for pneumatic applications, automatic drain, compact size and regulation range 0-12 kg/cm2. Equipped with manual cut-off valve at the inlet. These filter groups are made of aluminum and metal tanks with viewer. European manufacturing.Series: New DealReference: 1272054 Representative...

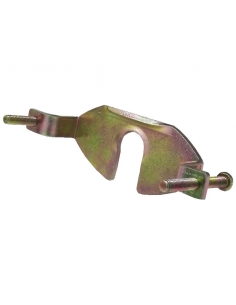

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

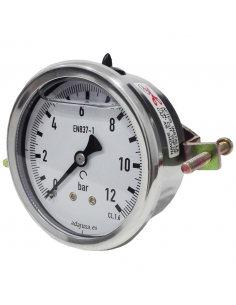

Pressure gauge for panel 63mm 1/4 0-12 bar with stand - Metal Work
