Sleeves for bearings 35x58x36 mm Series H - ISB

€5.11 Tax included

€4.29 tax excl.

Fixing sleeves with nut and lock washer measuring 35x58x36 mm complete. Used to lock the bearings, facilitating the fixing, assembly and disassembly of the bearings.

Reference: H 308

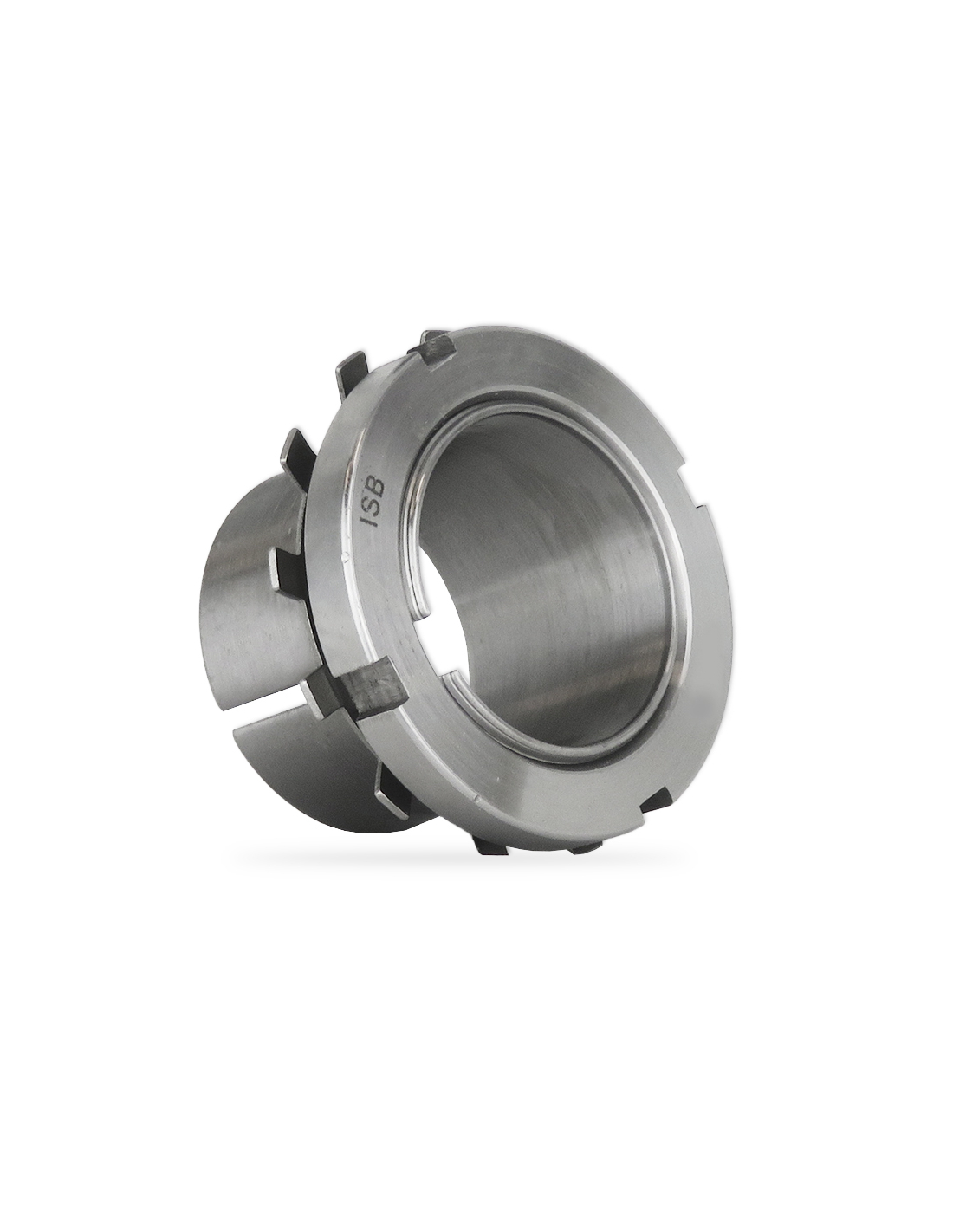

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Fixing sleeves are useful for locking bearings with a tapered hole on cylindrical shafts.

Manufactured in a conical shape and cut longitudinally to best adapt to the dimensions of the bearing hole.

Delivery includes one locking nut KM 8 and one lock washer MB 8

Features of the sleeves:

Manufacturer: ISB
Reference: H 308
Internal diameter (d1): 35mm
Outer diameter (d): 40mm
Outer diameter of lock nut (d3): 58mm
Cuff width (B1): 36mm
Width of nut with washer (B2): 11 mm
Nut Metric (G): M40x1.5
Weight: 0.17kg
Lock nut: KM 8
Lock washer: MB 8

Material for professional use, install in compliance with the regulations in force at the installation site.
