1/8 threaded female fitting for food and drinking water use FOOD Accessories Series - Aignep

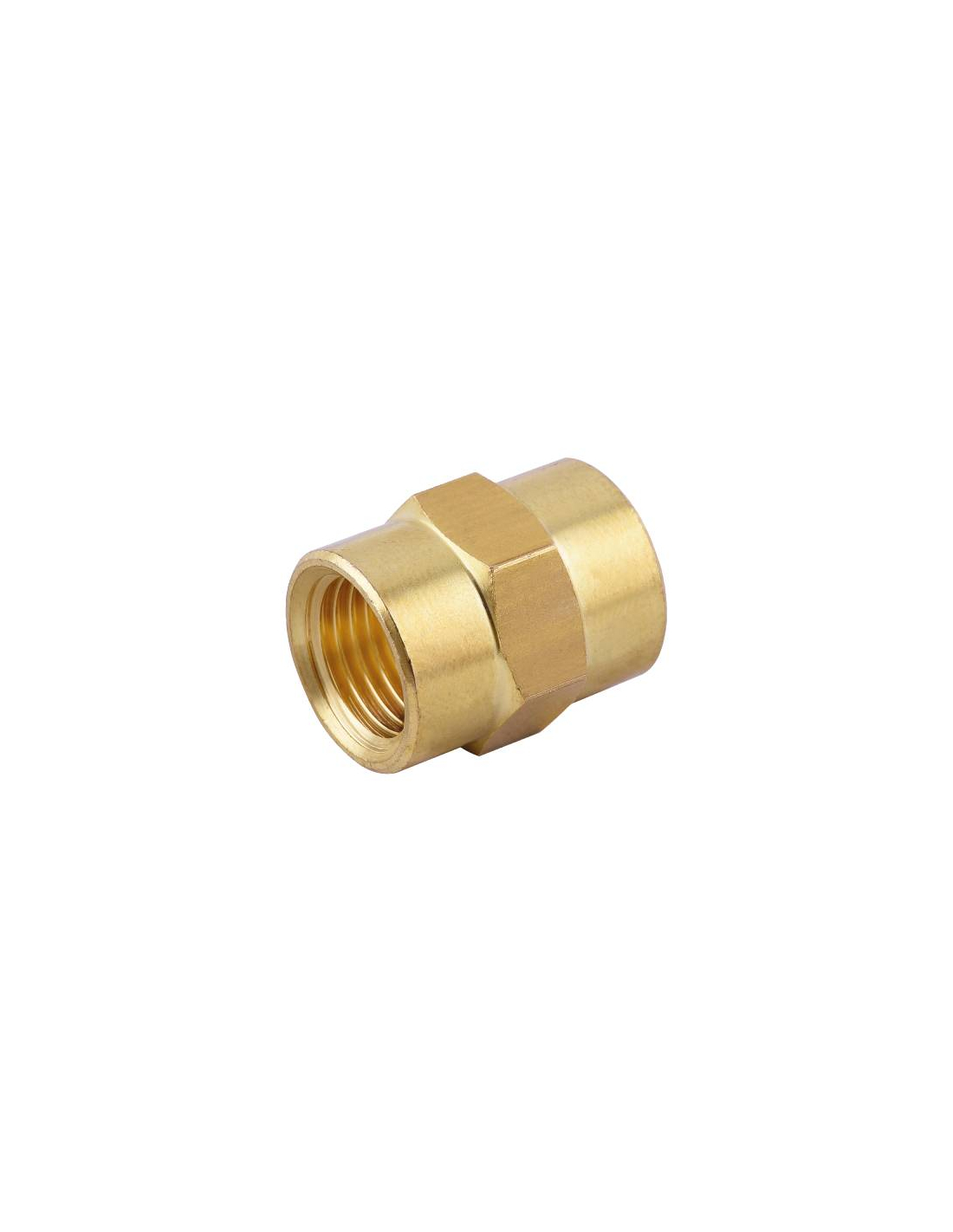

1/8 threaded female fitting, body made of lead-free brass CW510L. These accessories are specially designed for direct and indirect contact with food, drinking water, beverages, compressed air, vacuum and other liquids.

The Food Accessories Series is manufactured in total hygienic-sanitary safety and has international certification NSF/ANSI 169, as well as MOCA conformities regulation EU 1935/2004, NSF/ANSI 61-372, DM 174/2004.

Technical characteristics:

• Manufacturer: Aignep
• Reference: 3000CW 1/8
• Thread: 1/8
• Compatible fluids: Compressed air / Vacuum / Water / Food / Steam
• Operating pressure: -0.99 bar to 150bar
• Max temperature: 300C
• Material: Brass CW510L
• Connection tubes: tube and fittings in general
• Thread regulations:
  • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
  • Cylindrical gas according to ISO 228 Class A
• Certifications:
  • NSF/ANSI 61: Establishes minimum health effects requirements for chemical contaminants and impurities that are indirectly transmitted to drinking water from products, components, and materials used in drinking water systems.
  • NSF/ANSI 372: Establishes procedures for determining lead content in components of drinking water systems.
  • NSF/ANSI 169: Establishes minimum food protection and sanitation requirements for materials.
  • Decree DM 174/2004: Decree that regulates the materials and objects that can be used in fixed systems for the collection, treatment, adduction and distribution of water intended for human consumption.

For more information you can download the technical sheet by clicking on the "Attachments" tab .

Material for professional use, install in compliance with the regulations in force at the installation site.
