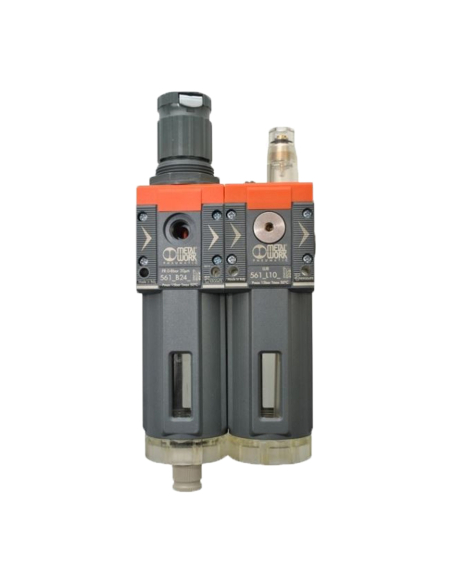

Pneumatic filter group 1/4 regulation 0-12 bar semi-automatic purge Syntesi series - Metal Work

1/4 filter group, 1/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY1) in 2 modules (FR+L) of European manufacture.
Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of technopolymer and nickel-plated brass with excellent resistance to corrosion.
The type of purge is manual and automatic when the pressure is removed.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristics of the filter group:

• Manufacturer: Metal Work
• Reference: FR+LUB SY1 1/4 5 012 RMSA
• Code: 5612B16L102 .
• Number of elements: 2 (FR+L).
• Thread size: 1/4.
• Filtering degree: 5 μm.
• Manual-semi-automatic condensation drain.
• Glass with external viewer.
• Built-in overpressure bleed valve.
• Block on regulator knob included.
• 0-12 bar regulation.
• Lubrication type: mist.
• Cup capacity: 30/60 cm3
• Thread size for pressure gauge: 1/8.
• Flow rate at 6 bar (ΔP1bar): 1400 Nl/min.
• Mounting Way: Vertical.

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
