Hose multithread 19x1mm (19G1) PVC black

Special material, payment by PayPal or cash on delivery is not accepted
€6.93 Tax included

€5.82 tax excl.

Hose 19 x 1mm² cross-section (18 numbered black conductors + 1 yellow/green conductor of 1mm² each). Black flexible PVC sheath. Suitable for indoor housing and interconnection of machine parts used for manufacturing, including machine tools. Designed under CPR standard (EN 50575).

Series: Flextel 110 ES05VV-F
Color: Black
Section: 19 x 1mm² (19G1)
Conductor colors: Numbered black + Yellow/Green

Price per meter
Material cut to length, no returns or cancellations allowed



logotipo_top_cable

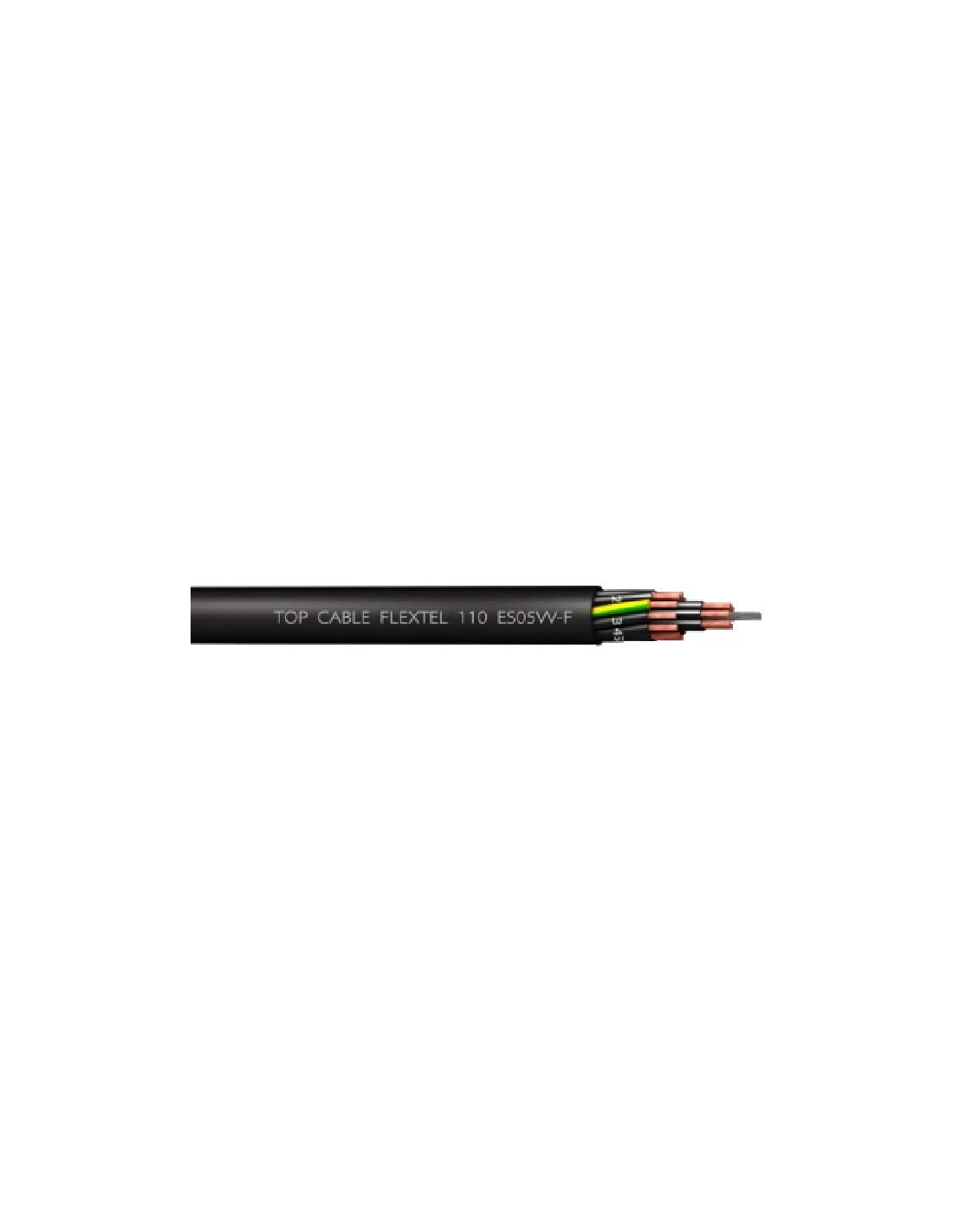

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

The minimum purchase order quantity for the product is 20.

No queries yet, leave the first!
Privacy
Shipments
Returns


Hose multi-wire with 19 conductors of 1mm² section each (18 numbered black conductors + 1 yellow/green protective conductor). Black flexible PVC sheath.

Flextel 110 ES05VV-F multi-conductor cable for mobile service is suitable for interconnection of machine parts used for manufacturing, including machine tools, when special resistance to mineral oil is not required. Where movement in use is not necessary, installation in conduits is recommended. Suitable for outdoor, buried and conduit installation.

Conductor colors:

  • Numbered black
  • Yellow/Green


Price and supply per meter
Material cut to size, no returns or cancellation of order allowed



Technical characteristics:

  • Manufacturer: Top Cable
  • Series: Flextel 110 ES05VV-F
  • Conductor: Annealed electrolytic copper, class 5 (flexible) according to UNE-UN 60228 and IEC 60228
  • Isolationflexible PVC
  • Sheath: Flexible PVC, black color
  • Nominal cross-section per conductor: 1 mm2
  • Rated voltage: 300/500 V
  • Voltage test: 2000 V / 5 min
  • Voltage drop: 45.2 V/A x km
  • Thermal characteristics
    • Max. conductor temp.: 60ºC
    • Maximum short-circuit temp.: 160ºC (maximum 5 s)
    • Minimum service temperature: 0ºC (mobile service) and -30ºC (fixed service)
  • Fire characteristics
    • Non-flame propagator according to UNE-EN 60332-1 / IEC 60332-1
    • Reaction to fire CPR: Eca according to EN 50575
    • Reduced halogen emission: Chlorine
  • Outside diameter: 12.1 mm
  • Bending radius: 5 x outer diameter
  • Impact resistant: AG2 Medium
  • Resistance to chemical attack: Good
  • Resistance to ultraviolet rays: According to UNE 211605
  • Presence of water: AD5 Water jets
  • Installation conditions: Open air, buried, piping
  • Design: According to CPR standard (EN 50575)
    Reference Standard: UNE 21031-5-1-C
  • Weight: 0,280 kg/m







For further information, you can download the data sheet by clicking on the "Attachments" tab.
