Intermediate fitting diameter 8mm technopolymer - Metal Work

€2.32 Tax included

€1.95 tax excl.

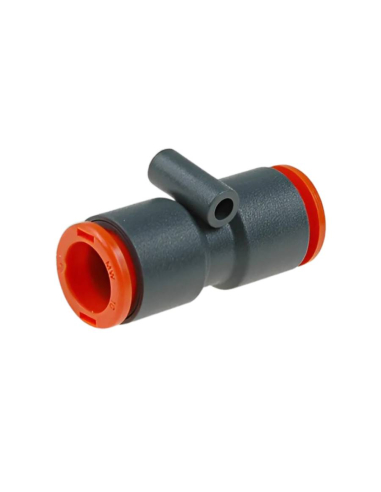

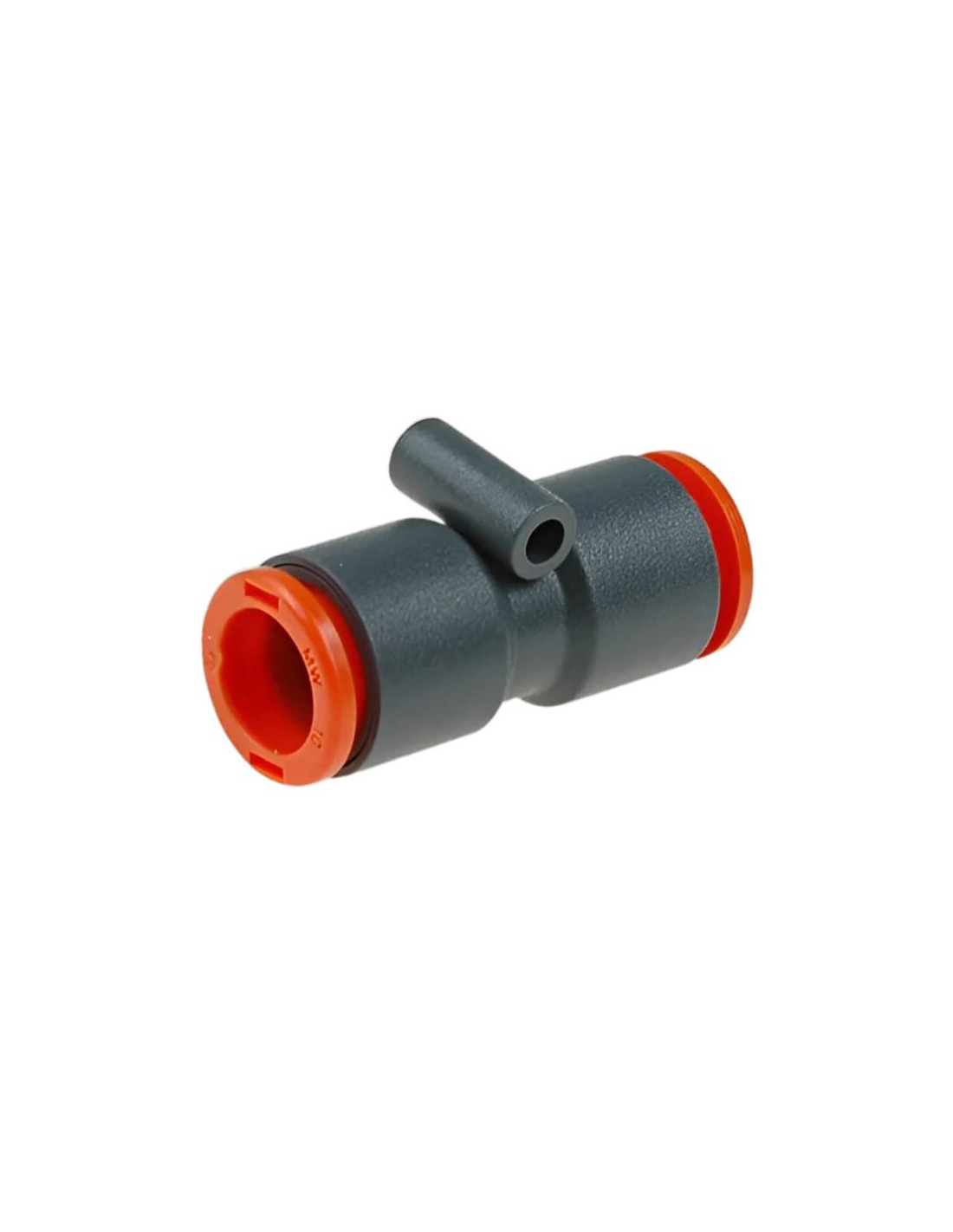

Intermediate straight fitting for outer tube 8mm, made of high-strength technopolymer. Fast, very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations.

Manufacturer: METAL WORK.

Reference: 2019004

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Intermediate straight fitting for tube 8mm outer, quick-connect, made of high quality laton and technopolymer. Very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring, turn the tube on without engraving or deforming it allowing for greater simplicity in the operation of disenging or disconnecting the tube fitting. In the fittings the fitting ring has screwdriver slots for easy disconnection in finger-inaccessible applications.

  • Manufacturer: Metal Work.
  • Manufacturer's Reference: 2019004.
  • Tubeexterior: 8mm.
  • Fluid: Vacuum - Compressed air.
  • Operating pressure: -0.99 bar to 16 bar.
  • Material: technopolymer.
  • Retention gasket: NBR.
  • Clamping spring: stainless steel.
  • Working temperature: -20oC to +80oC.

For other reference consult.

Dimensiones racores rectos intermedios Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.
