Intermediate tee fitting 10mm pipe inlet and 8mm pipe outlets instantaneous 55000 series - Aignep

Name: Intermediate tee fitting 10mm pipe inlet and 8mm pipe outlets instantaneous 55000 series - Aignep
Brand: Aignep
SKU: 552308108
Price: 3.5581 EUR
Availability: InStock

€3.56 Tax included

€2.99 tax excl.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

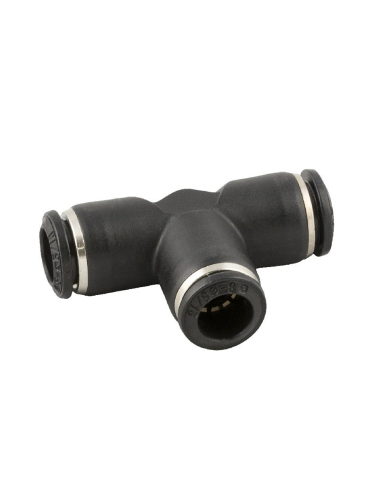

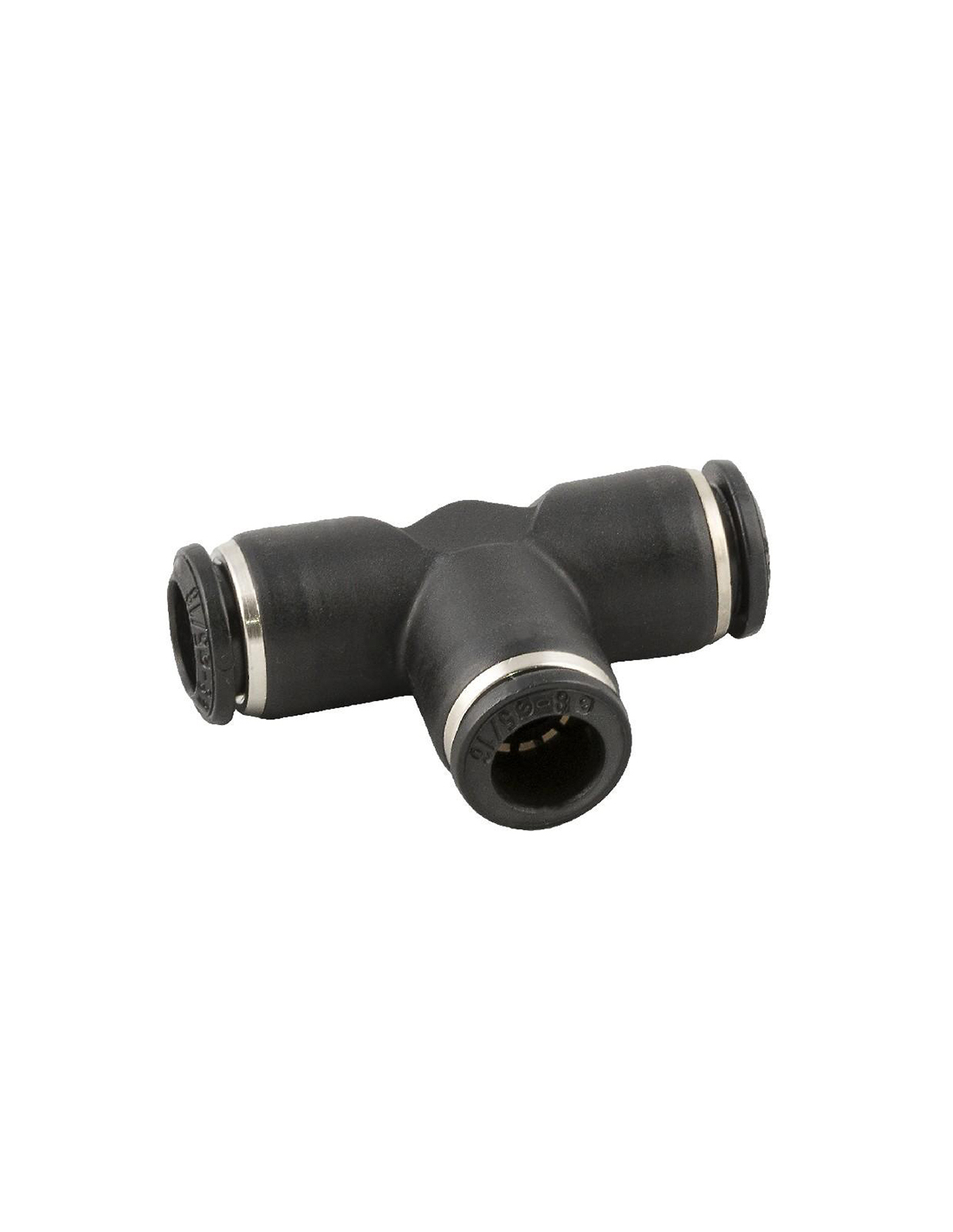

Automatic "T" fitting for pipe diameters 10mm inlet and 8mm outlet. Quick connection, made of technopolymer. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without deforming it, thus allowing a greater simplicity in the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

Manufacturer: Aignep.
Part number: 55230 8 10 8
Outer tube outlet diameter: 8mm
Tube inlet outside diameter: 10mm
Fluid: vacuum, compressed air and water
Material: Technopolymer
Tube extractor ring: acetal resin
Seal of retention: NBR
Clamping spring: stainless steel
Pressure: -0,99 bar to 20 bar
Working temperature: -20°C to +80°C
Thread standard
- Gas conical according to ISO 7.1, BS 21,DIN 2999
- Gas cylindrical according to ISO 228 Class A
- Metric according to ISO R/262

55230Esq
55230Tab

Material for professional use, install in compliance with the regulations in force at the place of installation.
