Intermediate Y fitting M5 tube diameter 4mm Series 55000 - Aignep

Intermediate Y fitting M5 tube diameter 4mm Series 55000 - Aignep

€3.53 Tax included

€2.97 tax excl.

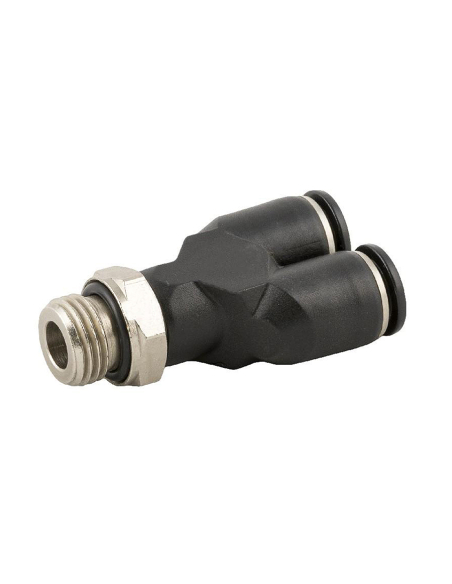

Intermediate automatic Y fitting with M5 thread and 4mm diameter tube with gasket , made of technopolymer and chrome-plated brass . A very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Series: 55000
Reference: 50325 4 M5




aignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Intermediate automatic Y fitting with M5 thread and 4mm diameter tube with gasket, made of technopolymer and chrome-plated brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum

Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 55325 4 M5
  • Tube outer diameter: 4mm
  • Thread: M5
  • Fluid: vacuum, compressed air and water
  • Material: Technopolymer and nickel-plated brass
  • Tube extractor ring: acetal resin
  • retention gasket: NBR
  • Clamping spring: stainless steel
  • Pressure: -0.99 bar at 20 bar
  • Working temperature: -20ºC to +80ºC
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • ISO R/262 compliant metric


55325Esq
55325Tab

Material for professional use, install in compliance with the regulations in force at the installation site.
