Manual lever valve 1/4 3/2 monostable lever 90 degrees - Metal Work

€73.53 Tax included

61.79 tax excl.

7020000100

Valve of 1/4 manual lever drive. 3 ways 2 positions return spring, metal body, lever of action to 90º. For control of cylinders of simple effect.

Reference: 7020000100

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Valve of 1/4 manual actuation by lever of 2 positions return spring, 3 ways 2 positions that allow to control cylinders of simple effect. In one position the cylinder is collected, in another position the cylinder advances. it can also be used as a passage valve or pneumatic circuit cut-off.

Angle lever drive at 90º.

Manufacturer: Metal Work.
Reference: MAV 33 LES NC Code: 7020000100
Operating pressure Bar: Empty ÷ 10
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 7.55
Conductance C Nl/min · bar: 264.26
Critical ratio b bar/bar: 0.27
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
Flow rate at 6 bar ΔP 1 bar Nl/min: 1100

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

70 manual series valves

Download (1.51MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pneumatic valve 1/4 3 ways 2 lever 90º bistable Metal Work | ADAJUSA | price

Pneumatic valve 1/4 3 ways 2 lever 90º bistable Metal Work | ADAJUSA | price 2

Lever-operated pneumatic valves 1/4

Angle lever valve 90º 1/4 3/2 bistable - Metal Work

€73.53 (€61.79 tax excl.)

Valve of 1/4 manual drive by bistable lever. 3 ways 2 positions return spring, metal body, lever of action to 90º. For control of cylinders of simple effect. Reference: 7020000200 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic valve 1/4 5 ways 2 positions lever 90º monostable Metal Work | Price adajusa

Pneumatic valve 1/4 5 ways 2 positions lever 90º monostable Metal Work | Price adajusa 2

Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/2 return spring lever 90 degrees - Metal Work

€79.96 (€67.19 tax excl.)

Valve of 1/4 manual actuation by angular lever to 90º monostable. 5 ways 2 spring return positions, the valve is actuated when the valve is actuated and returns to the resting position when the valve stops being actuated, metal body. For control of double effect cylinders. Reference: 7020000300 Representative image for illustrative purposes, the...

Pneumatic valve 1/4 5 ways 2 positions lever 90º bistable Metal Work | Price adajusa

Pneumatic valve 1/4 5 ways 2 positions lever 90º bistable Metal Work | Price adajusa 2

Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/2 bistable return spring lever 90 degrees - Metal Work

€79.96 (€67.19 tax excl.)

Valve of 1/4 manual actuation by angle lever to 90º bistable. 5 ways 2 fixed positions, metal body. For control of double cylinders Reference: 7020000400 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Valve 1/4 5-way 3 fixed positions c.p.- Mindman - ADAJUSA

Valve 1/4 5-way 3 fixed positions c.p.- Mindman - ADAJUSA 2

Lever-operated valves

Valve 1/4 5-way 3 fixed positions c.p.- Mindman

€39.22 (€32.96 tax excl.)

1/4 valve manual drive per lever. 5 ways 3 fixed positions, centers with pressure, metal body. For dual-effect cylinder control.Reference: 281MVHB2204TVPRepresentative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Handle Valve monostable 1/4 5/2 Aignep | ADAJUSA | price

Lever-operated pneumatic valves 1/4

Handle Valve monostable 1/4 5/2 - Aignep

€42.54 (€35.75 tax excl.)

1/4 valve manually operated by handle. 5 way 2 fixed positions. For control of cylinders of simple effect. Made of anodized and painted aluminum. Series: 01VPart number: 01VT050003 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Lever valve bistable 1/4 5/2 lever valve 90 degree Aignep: ADAJUSA : price

Lever-operated pneumatic valves 1/4

Lever Valve bistable 1/4 5/2 lever 90 degrees - Aignep

€47.08 (€39.56 tax excl.)

Valve 1/4 manually operated by 90º angle lever bistable of 5 way and 2 fixed positions. For control of double acting cylinders. Made of anodized and painted aluminum. Series: 01VPart number: 01VL150003 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Manual lever valve 1/4 5/3 positions open centers lever 90 degree Aignep | ADAJUSA | price

Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 positions open centers spring return lever 90 degree - Aignep

€53.88 (€45.28 tax excl.)

Valve 1/4 manually operated by 90º angle lever of 5 way and 3 fixed positions, open centers, spring return, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated. For control of double acting cylinders. Made of anodized and painted aluminum. Series: 01VPart number: 01VL07OC03...

Manual lever valve 1/4 5/3 positions centers pressure lever 90 degree Aignep: ADAJUSA : price

Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 positions pressure centers spring return spring lever 90...

€53.88 (€45.28 tax excl.)

Valve 1/4 manually operated by 90º angle lever of 5 way and 3 fixed positions, centers in pressure, spring return, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated. For control of double acting cylinders. Made of anodized and painted aluminum. Series: 01VReference: 01VL07PC03...

Lever valve bistable 1/4 5/2 front lever Aignep: ADAJUSA : price

Lever-operated pneumatic valves 1/4

Lever valve bistable 1/4 5/2 lever front - Aignep

€51.12 (€42.96 tax excl.)

Valve 1/4 manually operated by front lever bistable of 5 way and 2 fixed positions, allowing to control double acting cylinders. Made of anodized and painted aluminum. Series: 01VPart number: 01VF150003 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/4 valve 4 way 2 positions rotary lever | ADAJUSA | price

Lever-operated pneumatic valves 1/4

Valve 1/4 4 ways 2 positions rotary lever - Aignep

€40.25 (€33.82 tax excl.)

1/4 valve manually operated by rotating lever. 4 way 2 positions, anodized and varnished aluminum body. Normally open (NO). For controlling simple and double acting cylinders.Series: 12VReference: 12V1L14NO03 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Valve 1/4 5-way 3 positions spring return c.e.- Mindman - ADAJUSA

Valve 1/4 5-way 3 positions spring return c.e.- Mindman - ADAJUSA 2

Lever-operated valves

Valve 1/4 5-way 3 positions spring return c.e.- Mindman

€47.29 (€39.74 tax excl.)

1/4 valve manual drive per lever. 5-way 3 positions return spring, centers in escape, metal body. For dual-effect cylinder control. Reference: MVHB2204TVRSPRepresentative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Valve 1/4 5-way 2 fixed positions - Mindman

Valve 1/4 5-way 2 fixed positions - Mindman 2

Lever-operated valves

Valve 1/4 5-way 2 fixed positions - Mindman

€40.91 (€34.38 tax excl.)

1/4 lever manual lever valve. 5-way 2 fixed positions, metal body. For single and double effect cylinder control.Reference: 281MVHB2204TV Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic valve 1/4 4-way 3-position lever MVHC-200-4H-8A

Pneumatic valve 1/4 4-way 3-position lever MVHC-200-4H-8A 2

Lever-operated valves

Valve 1/4 4-way 3 positions c.c. Rotary lever Size 1 - Mindman

€33.00 (€27.73 tax excl.)

Valve of 1/4 manual drive by rotary lever. 4 ways 3 positions closed centers, metal body. For control of double effect cylinders.Reference: 281MVHC2004H08A Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Lever Valve bistable 1/4 3/2 Aignep | ADAJUSA | price

Lever-operated pneumatic valves 1/4

Lever Valve bistable 1/4 3/2 lever 90 degrees - Aignep

€43.83 (€36.83 tax excl.)

1/4 valve manually operated by 90º angle lever bistable. 3 way 2 fixed positions. For control of double acting cylinders. Made of anodized and painted aluminum. Series: 01VPart number: 01VL130003 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Manual pneumatic valve 1/4 5/3 fixed lever 7020000500 MAV36LEOCC | ADAJUSA | price

Manual pneumatic valve 1/4 5/3 fixed lever 7020000500 MAV36LEOCC | ADAJUSA | price 2

Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 fixed closed centers - Metal Work

€83.25 (€69.96 tax excl.)

Valve of 1/4 manual lever drive. 5 ways 3 positions, closed centers, 3 fixed positions, the valve changes position when the lever is actuated and remains in it until it is changed position, metal body. For control of double effect cylinders. Reference: 7020000500 Representative image for illustrative purposes, the item supplied will correspond to the...

Valve 1/4 4 way 3 positions lever 12V1L26OC03 exhaust centers | ADAJUSA | price

Lever-operated pneumatic valves 1/4

Valve 1/4 4- way 3-position ce lever - Aignep

€40.25 (€33.82 tax excl.)

1/4 valve manually operated by rotating lever. 4 way 3 positions, centers in exhaust, anodized and varnished aluminum body. Escape centers (OC). For controlling double-acting cylinders. Reference: 12V1L26OC03 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Pneumatic valve 1/4 3 ways 2 lever 90º bistable Metal Work | ADAJUSA | price

Pneumatic valve 1/4 3 ways 2 lever 90º bistable Metal Work | ADAJUSA | price 2

Lever-operated pneumatic valves 1/4

Angle lever valve 90º 1/4 3/2 bistable - Metal Work

€73.53 (€61.79 tax excl.)

Valve of 1/4 manual drive by bistable lever. 3 ways 2 positions return spring, metal body, lever of action to 90º. For control of cylinders of simple effect. Reference: 7020000200 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Manual lever valve 1/4 3 way 2 fixed positions front lever Metal Work | ADAJUSA | price

Manual lever valve 1/4 3 way 2 fixed positions front lever Metal Work | ADAJUSA | price 2

Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 3 way 2 fixed positions front lever - Metal Work

€42.83 (€35.99 tax excl.)

Valve of 1/4 manual drive by monostable front lever. 3 ways 2 fixed positions, metal body. For control of cylinders of simple effect. Reference: 7010001400 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

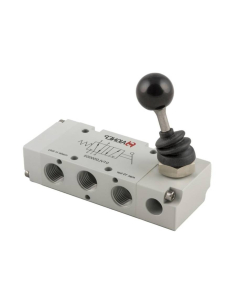

Lever valve monostable 1/4 5/2 lever valve 90 degrees Aignep | ADAJUSA | price
