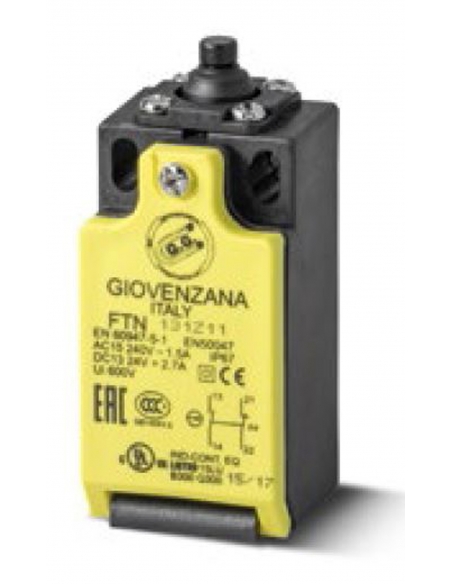

Limit Switch Short Piston series FTN - Giovenzana

€9.87 Tax included

8.29 tax excl.

FTN131Z11

Short piston electric Limit switch , FTN series, push-button actuation, made of thermoplastic material, in compliance with EN 50047, suitable for safety applications, positive opening contacts.

2 contacts available (select from the side menu), with 2 types of action, slow or abrupt.

contact diagrams for limit switches

Giovenzana Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Model
  • Sudden rupture 1NC/1NO

No queries yet, leave the first!
Privacy
Shipments
Returns


FTN series Limit switch switches, actuated by a short front piston. The FTN series of position switches is made of thermoplastic material, complying with EN50047. Designed for industrial automation, elevator and lifting applications, and general use. Installation is very simple , ensuring extreme ease of assembly.

The FTN series can be installed in safety applications, its contacts are designed according to EN81.20 and EN81.50.

For safety applications, always connect the safety circuit to the NC contact (positive opening normally closed: 11-12/21-22/31-32), as provided for in standard EN ISO 14119 paragraph 5.4 and as indicated in standard EN81.20 paragraph 5.11.2.2.1.

High degree of protection, IP67, designed to be used even in the most severe environmental conditions, these limit switches have passed the IP67 immersion test, in accordance with standard EN60529.

Types of contacts for limit switches

Time diagram of limit switch contact types

The limit switch housing is made of fiberglass-reinforced, self-extinguishing, shock-resistant, and double-insulated technopolymer.



Technical characteristics:

  • Manufacturer: Giovenzana.
  • Series: FTN131 .
  • Number of contacts: 2.
  • Positive opening Contact : NC Contact .
  • Employment category: AC15/600.
  • Nominal thermal current (Ith): 10A.
  • Nominal insulation voltage: 600Vac.
  • Minimum allowable current: 5mA at 5Vdc.
  • Insulation resistance: 100MΩ min. (DC500V).
  • Contact resistance: 25mΩ max. (Initial).
  • Positive opening drive travel: Various.
  • Maximum switching frequency: 2 cycles/sec.
  • Housing material : UL approved polybutene terephthalate with glass fibers.
  • actuator material: Various.
  • Working temperature: -25ºC..80ºC.
  • Mechanical durability: 10.000.000 cycles min.
  • Electrical durability: 150,000 cycles min.
  • Cable entry: M16.
  • Fixing: 2xM4.
  • Standards: EN60947-5-1, UL508, EN5004-7, EN1088
  • Protection level: IP-67.

FTN limit switch assembly diagram




Professional use material, install in compliance with current regulations at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pneumatic pressure switch 1/8 open contact Metal Work Z334111122 NA | ADAJUSA | price Pneumatic pressure switch 1/8 open contact Metal Work Z334111122 NA | ADAJUSA | price 2
Pressure switches, vacuum switches and flowmeters

Pressure switch 1/8 open contact - Metal Work

Metal Work
4111122
€16.37 (€13.76 tax excl.)
1/8 pneumatic pressure switch with open contact, adjustable pressure range between 1 and 10 bar . This pressure switch allows a pneumatic signal to be converted into an electrical signal. When the set pressure is reached, the contact switches to the closed position. Reference: 4111122 Representative image for illustrative purposes, the item supplied will...

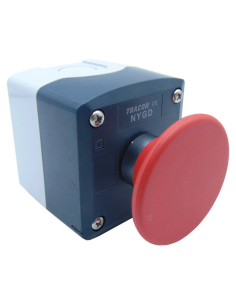

Button box with mushroom stop button Ø60 NYGBR42PT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal stop mushroom push button Ø60 complete - NYG Series

TRACON
PK-NYGBR42PT
€7.62 (€6.40 tax excl.)
Box with non- interlocking mushroom stop button, diameter 60mm. Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBR42PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

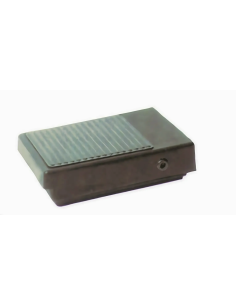

Electric foot pedal monostable Aignep 06V0000013 | Adajusa
limit switch - position detectors - electric pedals - sensors

Compact electric footswitch - Aignep

Aignep
06V0000013
€18.71 (€15.72 tax excl.)
Electric foot pedal with NO/NC contact, ideal for industrial environments where mobility and control are required. Compact, lightweight and easy to install. Designed to operate machinery or electrical systems remotely with the foot. Robust thermoplastic construction. Color: black Part number: 06V0000013 Representative image for illustrative...

16 other products in the same category:

Limit Switch -locked security - Giovenzana
limit switch - position detectors - electric pedals - sensors

End of security race with a carned key - Giovenzana

Giovenzana Internacional B.V.
GISTNK01xxx
€24.99 (€21.00 tax excl.)
Safety Limit switch with key interlocking that can be inserted in 5 directions. IP-67 protection rating. 2-channel safety control possible. 2 contacts available (select from the side menu), with 2 types of action, slow or fast. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
MFI.7 Giovenzana Series Microswitch - adajusa
limit switch - position detectors - electric pedals - sensors

Micro breaker roller lever L16mm MFI series.7

Giovenzana Internacional B.V.
GI-MFI.7
€2.90 (€2.44 tax excl.)
Micro roller lever drive switch L-16mm. 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with self-cleaning contacts and a type of fire that ensure a high degree of precision. Fast and reliable switching independent of the drive speed. Reference: MFI.7 Representative image...
View
End of race lever with wheel FCT series with cable - Giovenzana End of race lever with wheel FCT series with cable - Giovenzana 2
limit switch - position detectors - electric pedals - sensors

Limit Switch lever with series FCT wheel with cable - Giovenzana

Giovenzana Internacional B.V.
GIFCT2x04xxxD
€38.10 (€32.02 tax excl.)
electric metal leverlimit switch with nylon wheel, FCT series, push button drive, made of thermoplastic material, positive opening contacts.Pre-wired with 2 m cable, side exit.2 contacts available (select from the side menu), with 2 types of action, slow or abrupt.Representative image for illustrative purposes, the article supplied will correspond to the...
Digital pressure switch 2 PNP outputs + analog output Aignep PR02P02P2 - Aignep Digital pressure switch 2 PNP outputs + analog output Aignep PR02P02P2 - Aignep 2
Pressure switches, vacuum switches and flowmeters

Digital pressure switch 2 PNP outputs + 1 analog output - Aignep

Aignep
PR02P02P2
€121.51 (€102.11 tax excl.)
Electronic pressure switch with digital measurement, screen with display that shows the data in two possible colors (red or green) depending on the programmed conditions. It has two PNP type outputs and one analog output (4 ~ 20mA). Operating voltage 12-24Vdc. Large screen that allows easy reading of measurement units. IP65 protection grade.Reference:...
Magnetic reed sensor 2 wires connector and cable - Aignep | ADAJUSA | price
Pneumatic cylinder accessories

Magnetic reed sensor 2 wires connector and cable - Aignep

Aignep
DSM2C525
€24.79 (€20.83 tax excl.)
Reed type magnetic proximity sensor with 2-wire cable and connector included , operating range 3 - 230 V, cable length 2.5 m facilitating flexible installation. This sensor is ideal for applications requiring position monitoring in pneumatic systems, such as in industrial automation and process control. Valid for mounting on ISO cylinders of the L series...

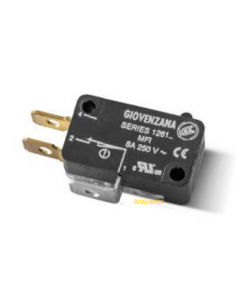

Giovenzana MFI Series MicroSwitch - adajusa
