Pneumatic logic valve AND function 1/8 - Aignep
Pneumatic logic valve AND function 1/8 - Aignep

Pneumatic logic valve AND function 1/8 - Aignep

€16.59 Tax included

€13.94 tax excl.

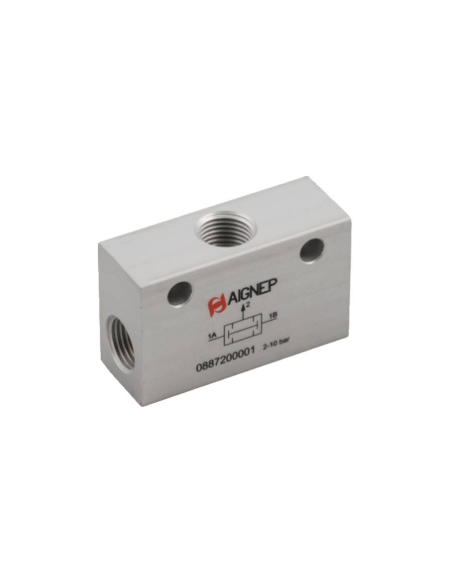

Pneumatic logic valve "AND" function with built-in quick fittings for 1/8 diameter tube.

Series: Function
Reference: 8872 1/8

8872DIAGRAM
aignepnormative
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic logic valve "AND" function, with built-in quick fittings for 1/8 diameter tube. Fixing using through screws or DIN rail.

Regulator Features:

  • Manufacturer: Aignep
  • Reference: 8872 1/8
  • Valve type: logic "AND" function.
  • Thread size: 1/8.
  • Body material: Anodized aluminum.
  • Internal components: Brass
  • Gaskets: NBR
  • Spring: Stainless steel
  • Working pressure: 2 to 10 bar
  • Working temperature: -10ºC + 60ºC
  • Nominal flow at 6 bar : 100 Nl/min.
  • Fluid: Filtered compressed air with or without lubrication.
  • Installation: In any position.



8872DIMENSIONS



Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
