Heating resistors PTC GHT 150-B
Heating resistors PTC GHT 150-B

Heating resistance for electrical cabinets 150W, 120-240V AC/DC

€43.20 Tax included

€36.30 tax excl.

Heating resistance of 150W suitable for the regulation and control of temperature and humidity inside cabinets and electrical panels.
Quick connection by pressure terminals and clip mounting in din-rail. PTC resistance with temperature limiter.

Reference: GHT150-B

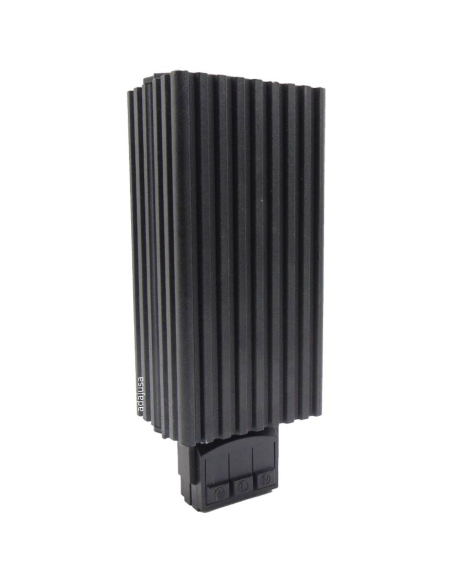

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Heating resistance that guarantees a fast and homogeneous heating inside the electrical panels and cabinets. Used mainly in order to heat the frame when the ambient temperature is too low and thus guarantee the proper functioning of its components or to prevent condensation from forming inside that can cause unwanted effects on its components, such as short circuits, oxidation of the contacts and reduction of their useful life.

It must be installed in a vertical position (down connection terminal) to favor the convention and be combined with a thermostat or hygrostat, to avoid low temperatures or excess humidity and maintain a minimum distance from the components adjacent to it. As far as possible it should be located at the bottom of the box or cabinet.

In large cabinets the best way to achieve an even distribution of heat is by incorporating several small power resistors.

The connection cables must not be in contact with the resistance body nor be directly with the hot air outlet.

  • Brand/supplier: Gaestopas
  • Reference: GHT150-B
  • Supply voltage: 110-240V AC/DC(*) (min. 110V, max. 265V)
  • Heating power: 150W
  • Maximum connection current: 9.0A
  • Heating element: PTC resistance, temperature limiter
  • Radiator: Extruded aluminum profile, anonynized
  • Connection: 3 pressure terminals for flexible wires 0.5-1.5mm2 and rigid wires 0.5-2.5mm2
  • Connection housing: Plastic according to UL94 V-0, black
  • Fixing: Clip for 35mm DIN rail, EN 60715
  • Mounting position: Vertical airflow (air outlet upwards)
  • Service/storage Tª: -45 to +70orC
  • Humidity: Max. 90% RH (non-condensing)
  • Protection Grade/Class : IP20/I (Protection Conductor)
  • Weight: 0.7kg

(*) In power supply below AC/DC 140V the heating power is reduced by approximately 10%. Other tensions under consultation




Dimensions:

L = 220mm

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
Material for professional use, install in compliance with current regulations at the place of installation.
