Selector 3 positions metal key (On-On) 2 open contacts (NA) complete
Selector 3 positions metal key (On-On) 2 open contacts (NA) complete
Selector 3 positions metal key (On-On) 2 open contacts (NA) complete
Selector 3 positions metal key (On-On) 2 open contacts (NA) complete

Selector 3 positions metallic key 2 open contacts NO complete

€4.26 Tax included

€3.58 tax excl.

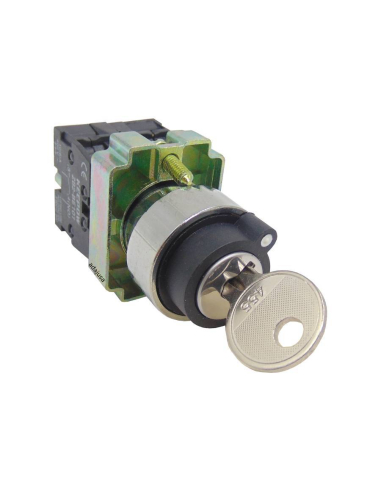

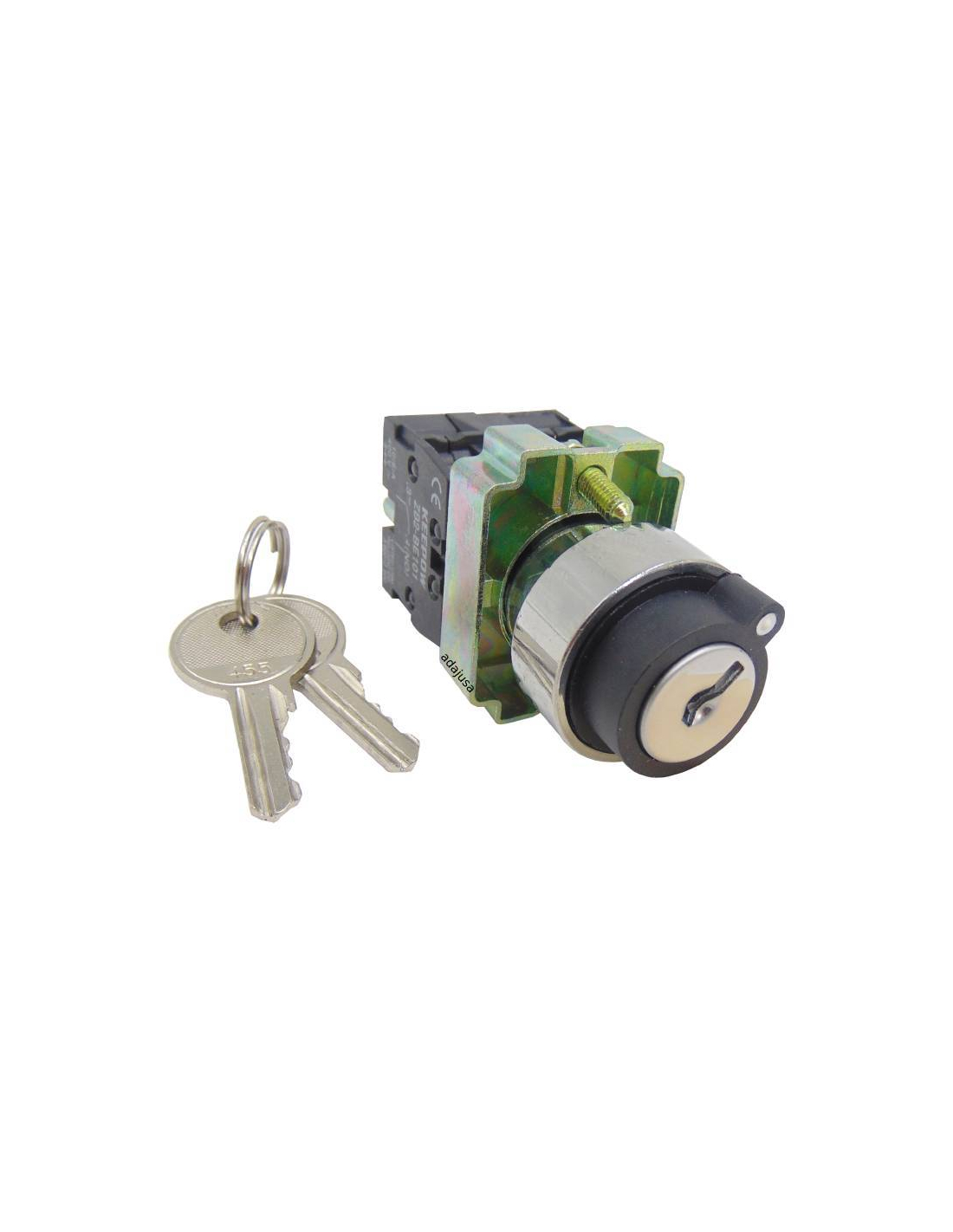

Key-operated metal selector, 3 positions held, key can be removed in any position. Bore diameter 22mm.

The supply includes the complete selector with two open contacts and key.

Reference: NYBG53KKK

Esquema eléctrico selector 2 circuitos HB2-BG53

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Key-operated metal selector, 3 positions held, key can be removed in any of the 3 positions. Bore diameter 22mm.

Delivery includes complete selector with two open contacts and key.

Features:

  • Manufacturer/Supplier: Tracon
  • Product ID: NYBG53KKK
  • Color: black
  • Number of positions: 3
  • Contact2 open (NA)
  • Material: Metal
  • Current Ith: 10(6) A
  • Intensity Ie (AC1, 230V): 6A
  • Ie current (AC15, 230V): 3A
  • Intensity Ie (DC15, 230V): 0.27A
  • Voltage Ui: 660V
  • Contact resistance: 50 mOhm
  • Degree of protection: IP42
  • Standards: EN 60947-1; EN 60947-5-1
Dimensiones selector de llave
Material for professional use, install in compliance with the regulations in force at the place of installation.
