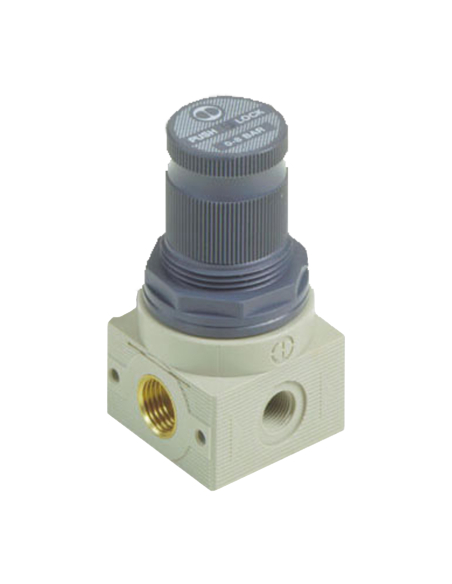

Pressure regulator 1/4 0-4 bar plastic Bit - Metal Work

€26.72 Tax included

22.45 tax excl.

5207002

Pressure regulator of 1/4 regulation 0-4 Kgrs, plastic body. Allows stability of the output pressure to the preset pressure. Rear panel or bracket fastening.

The pressure gauge and square must be ordered separately.

Ref: 5207002 - MR BIT MR 1/4 04

Simbolo neumático regulador de presión

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the indicated specifications.

Representative image for illustrative purposes, the article supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Pneumatic pressure regulator of 1/4" technopolymer body. High adjusted pressure stability. The regulator provides a high flow rate with a reduced pressure drop. The controller supports transpanel (recessed) mounting.

The pressure gauge or shield is included in the supply.

Manufacturer: Metal Work
Reference: 5207002 - MR BIT SR 1/4 04
Size: 1/4"
Adjustment range: 0-4 bar.
Maximum input pressure: 13 bar.
Flow rate: 600Nl/min.
Fluid: Filtered air with or without lubrication.
Maximum temperature: 50oC.
Weight: 80gr.
Mounting position: any.
Pressure gauge connection: G 1/8".
Material: technopolymer.

For other models or sizes consult

Dimensiones reguladores de presión serie bit Metal Work

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Metal Work Bit group

Download (2.99MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pressure gauges 40mm 1/8 0-12 Bar Metal Work | ADAJUSA

Pressure gauges 40mm 1/8 0-12 Bar Metal Work | ADAJUSA 2

Gauges and measurement elements

Manometer 40 1/8 0-12 bar back plastic box - Metal Work

€5.62 (€4.72 tax excl.)

Pressure gauge diameter 40 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle.Reference: MP4318012 Representative image for illustrative purposes,...

Micro-pressure regulator 1/4 0-12 bar Bit Group - Metal Work - ADAJUSA

Filter groups of 1/4 FR-L

Pressure regulator 1/4 0-12 bar plastic with quick exhaust Bit - Metal Work

€30.75 (€25.84 tax excl.)

Pressure regulator of 1/4 regulation 0-12 Kgrs, plastic body and built-in quick exhaust valve. It allows stability of the outlet pressure to the preset pressure. Transpanel or square fixation. Bit Group Pressure gauge and bracket not included (can be ordered separately)Reference: 5202004 Representative image for illustrative purposes, the item...

Micro-pressure regulator 1/4 0-4 bar with quick exhaust Bit series - Metal Work - ADAJUSA

Micro-regulator Bit

Pressure regulator 1/4 0-4 bar plastic with quick exhaust Bit - Metal Work

€30.75 (€25.84 tax excl.)

1/4 regulation pressure regulator 0-4 Kgrs, plastic body and built-in quick exhaust valve. Allows stability of the output pressure to the preset pressure. Rear panel or bracket fastening. The pressure gauge and square must be ordered separately. Ref: 5202002 - MR BIT SR 1/4 04 Representative image for illustrative purposes, the article supplied...

Square clamping group series bit - Metal Work - ADAJUSA

Accessories for filtration groups

Square clamping group bit and syntesi T1 1/4 - Metal Work

€3.57 (€3.00 tax excl.)

Bracket for fixing filter group and pneumatic regulator of the series bit and syntesi size 1. Reference: 9200701 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

3 other products in the same category:

Micro-pressure regulator 1/4 0-12 bar Bit Group - Metal Work - ADAJUSA

Filter groups of 1/4 FR-L

Pressure regulator 1/4 0-12 bar plastic with quick exhaust Bit - Metal Work

€30.75 (€25.84 tax excl.)

Pressure regulator of 1/4 regulation 0-12 Kgrs, plastic body and built-in quick exhaust valve. It allows stability of the outlet pressure to the preset pressure. Transpanel or square fixation. Bit Group Pressure gauge and bracket not included (can be ordered separately)Reference: 5202004 Representative image for illustrative purposes, the item...

Micro-pressure regulator 1/4 0-4 bar with quick exhaust Bit series - Metal Work - ADAJUSA

Micro-regulator Bit

Pressure regulator 1/4 0-4 bar plastic with quick exhaust Bit - Metal Work

€30.75 (€25.84 tax excl.)

1/4 regulation pressure regulator 0-4 Kgrs, plastic body and built-in quick exhaust valve. Allows stability of the output pressure to the preset pressure. Rear panel or bracket fastening. The pressure gauge and square must be ordered separately. Ref: 5202002 - MR BIT SR 1/4 04 Representative image for illustrative purposes, the article supplied...

Pressure micro-regulator 1/4 0-12 bar plastic Bit Group - Metal Work - ADAJUSA

Filter groups of 1/4 FR-L

Regulator pressure 1/4 0-12 bar plastic Bit - Metal Work

€26.72 (€22.45 tax excl.)

Pressure regulator of 1/4 regulation 0-12 Kgrs, plastic body. It allows stability of the outlet pressure to the preset pressure. Transpanel or square fixation. Bit Group.Reference: 5207004 Pressure gauge and bracket not included (can be ordered separately)Representative image for illustrative purposes, the item supplied will correspond to the...

Customers who bought this product also bought:

3-position long lever selector with Metal Work | return ADAJUSA | price

Pushbuttons and pneumatic actuators

Black long cam selector 3 positions - Metal Work

€21.42 (€18.00 tax excl.)

Black selector 3-position long lever with return Reference: W0351000037 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pressure gauges 40mm 1/8 0-12 Bar Metal Work | ADAJUSA

Pressure gauges 40mm 1/8 0-12 Bar Metal Work | ADAJUSA 2

Gauges and measurement elements

Manometer 40 1/8 0-12 bar back plastic box - Metal Work

€5.62 (€4.72 tax excl.)

Pressure gauge diameter 40 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle.Reference: MP4318012 Representative image for illustrative purposes,...

Aluminum blow gun for compressed air systems - Aignep| ADAJUSA

Blow guns

Aluminum blow gun - Aignep

€5.66 (€4.76 tax excl.)

Blow gun for compressed air systems, with G1/4 female threaded air inlet. Compact, manually controlled tool with precise and progressive triggering of the output air flow according to the needs of each application. Lightweight tool made of aluminum, resistant to corrosion and humid environments. Easy handling and ergonomic design. Reference: 27A...

Safety valve overpressure 1/4 10 Bar - Metal Work - ADAJUSA

Safety valve overpressure 1/4 10 Bar - Metal Work - ADAJUSA 2

Safety valves for overpressure

Safety valve overpressure 1/4 10 Bar - Metal Work

€4.22 (€3.55 tax excl.)

Overpressure safety valve for the relief of pneumatic circuits and compressors. With 1/4" thread adjusted and sealed at a pressure of 10 bars. The valve is supplied with its corresponding certificate. Manufactured according to the MIE-AP17 regulation of the precision devices regulation, being built by spring and total lift seat. Reference: VS1410APED4...

Valve manual lever fixed position front lever Metal Work - ADAJUSA

Valve manual lever fixed position front lever Metal Work - ADAJUSA 2

Lever-operated valves

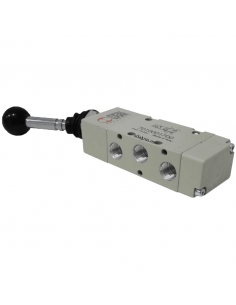

Manual lever valve 1/8 5/2 fixed position front lever - Metal Work

€39.76 (€33.41 tax excl.)

1/8 valve manual drive by front lever. 5 ways 2 fixed positions, metal body. For dual-effect cylinder control. Reference: 7010001700 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

MCB circuit breaker 2 poles 4A OMU adajusa OMB06204C

MCB circuit breakers 2 poles

Circuit breaker 2 poles 4A curve C - OMU

€4.94 (€4.15 tax excl.)

MCB circuit breaker 2 poles 4A curve C, for protection against short circuits and overloads in single-phase or biphasic installations. With an assigned cutting power of 6000A. Active protection of both poles with individual status indication. Protects both drivers. It can be used in installations and assemblies up to 500VAC. Manufacturer's Reference:...

Three-phase 3-pole contactor with 18A coil 24Vac | ADAJUSA | price

Three-phase 3-pole contactor with 18A coil 24Vac | ADAJUSA | price 2

Contactors 3 poles coil 24Vac

Three-phase contactor 18A 24Vac open auxiliary contact NA TR1D Series

€13.35 (€11.22 tax excl.)

Three-phase electric contactor equipped with high-capacity contacts, with 85% silver, for controlling electric motors, heating, lighting, ventilation, or general uses. 3-pole contactor with current capacity of 18A category AC3 or 32A category AC1, with 24Vac coil, the contactor is equipped with an open auxiliary contact (NO).Reference: TR1D1810B7...

Pneumatic filter regulator 1/4 FRL MINI T030003241000 - Aignep | ADAJUSA | price

Filter groups of 1/4 FR-L

Pneumatic filter-regulator 1/4 0-12 bar series FRL MINI - Aignep

€29.55 (€24.83 tax excl.)

Filter with 1/4 pneumatic pressure regulator, 1/4 maintenance unit for pneumatic applications, semi-automatic purge, compact size and regulation range 0-12 kg/cm2, filtration degree of 20 μm . These filtering groups are manufactured in technopolymer and with metallic terminations. Made in ItalySeries: FRL MiniReference: T030003241000 Representative...

Manual pneumatic valve 1/8 5/3 fixed lever 7010000600 MAV25LEOOC | Price adajusa.com.com.'

Manual pneumatic valve 1/8 5/3 fixed lever 7010000600 MAV25LEOOC | Price adajusa.com.com.' 2

Lever-operated valves

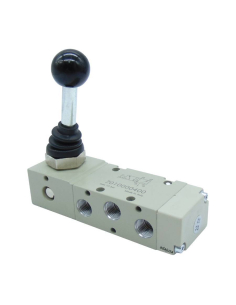

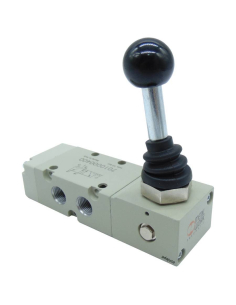

Valve manual lever 1/8 5/3 fixed positions exhaust centers - Metal Work
