3/4 metallic pressure regulator - Metal Work - ADAJUSA

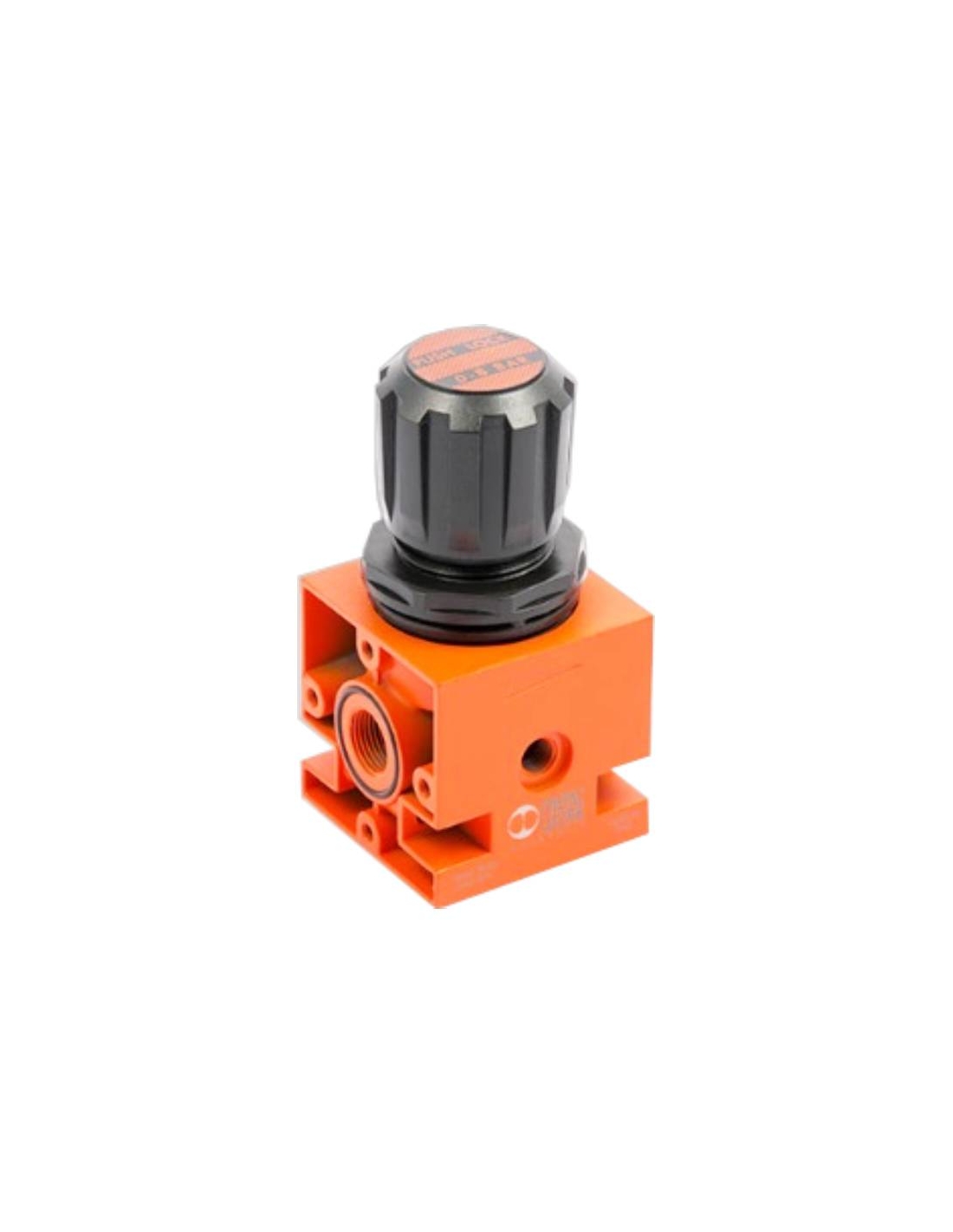

Metallic pressure regulator 3/4 04 bar New Deal - Metal Work

Name: Metallic pressure regulator 3/4 04 bar New Deal - Metal Work
Brand: Metal Work
SKU: 1502001
Price: 125.8663 EUR
Availability: PreOrder

€125.87 Tax included

€105.77 tax excl.

Regulador de presión de 3/4 regulación 04, de cuerpo metálico extrema fiabilidad y robusto. Permite estabilidad la presión de salida a la presión prefijada. Posibilidad de fijación mediante taladros laterales. Grupo New Deal

Manómetro no incluido (puede pedirse por separado)

Referencia: 1502001

Simbolo neumático regulador de presión

Logotipo Metal Work

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!

Privacy

Shipments

Returns

3/4 pressure regulator , metal body, extremely reliable and robust. It allows stability of the outlet pressure at the preset pressure starting from an equal or higher inlet pressure. Possibility of fixing through side holes.

Pressure gauge not included (can be ordered separately)

Technical characteristics.

Manufacturer: Metal Work
Reference: 1502001
Threaded connection size: 3/4".
Regulation range: 0-4 bar .
Maximum inlet pressure: 18 bar .
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 2500
Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) (Nl/min): 4500
Working temperature: -10 to +50ºC.
Mounting position: any position.
Fluid: Air filtering, with or without lubrication (continuous lubrication)
Wall fixing screws: M6x75.
Pressure gauge connection: 1/4".

For other models or sizes consult.

regulator dimensions new deal

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
