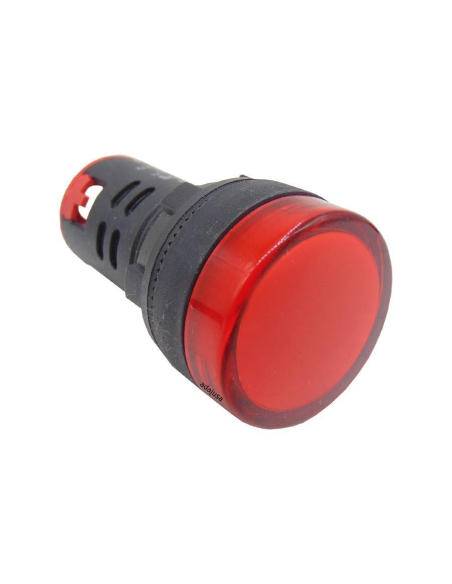

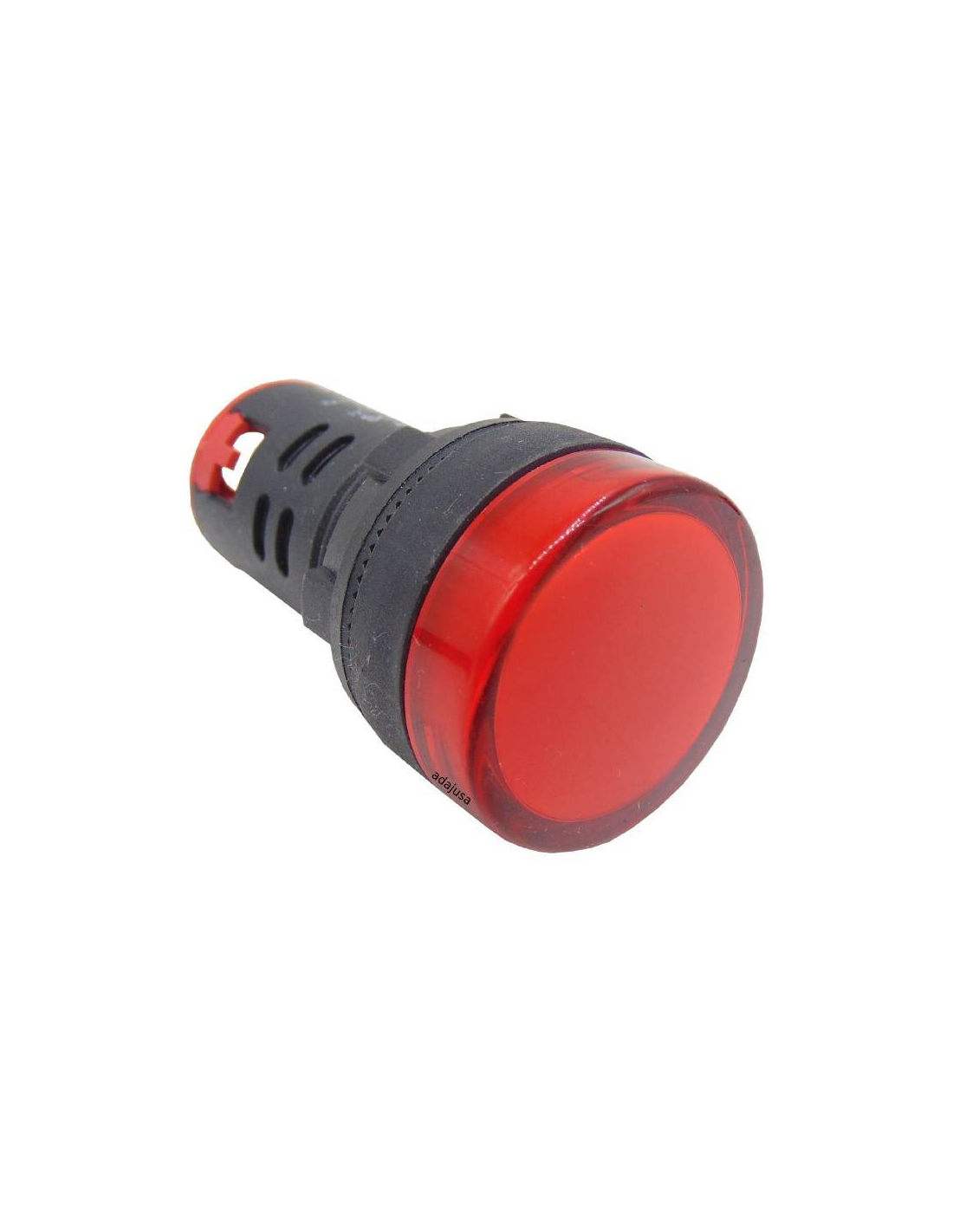

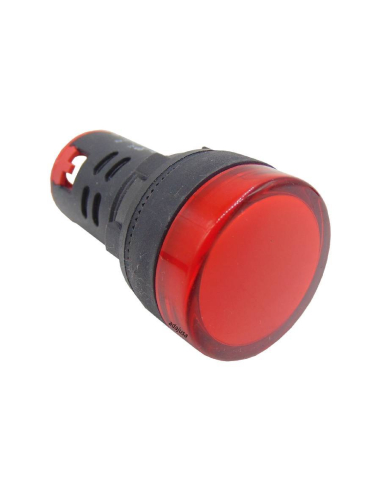

Pilot multiled red color 12 Vac/dc 22mm

Name: Pilot multiled red color 12 Vac/dc 22mm
Brand: TRACON
SKU: LJL22-RA
Price: 1.547 EUR
Availability: InStock

€1.55 Tax included

€1.30 tax excl.

Pilot multiled redluminous, voltage 12 Vac/dc, diameter 22mm. High luminosity and long life led chip.

Reference: LJL22-RA

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pilot multiled red color for voltage 12Vdc or 12Vac, diameter 22mm. Luminous element made up of high performance LEDs (no bulb required).

Technical characteristics:

Manufacturer: TRACON
Part number: LJL22-RA
Voltage: 12Vdc or 12Vac
Pilot color: Red
Diameter: 22mm
Degree of protection: IP65 (from the front side)
Operating temperature: -25 to +70ºC
Connection type: Threaded
Type of fixing: By nut
Material: Black polycarbonate

dimensiones piloto multiled color rojo 12V

Material for professional use, install in compliance with the regulations in force at the place of installation.

Colors_in_command_and_signals

Meaning and use of colors in control and signaling devices

Download (21.92KB)

Multi-LED electric lamps

Technical data sheet multiled electric lights

Download (645.12KB)

pushbutton catalog

aDAJUSA catalog of metallic electric pushbuttons

Download (1.5MB)
