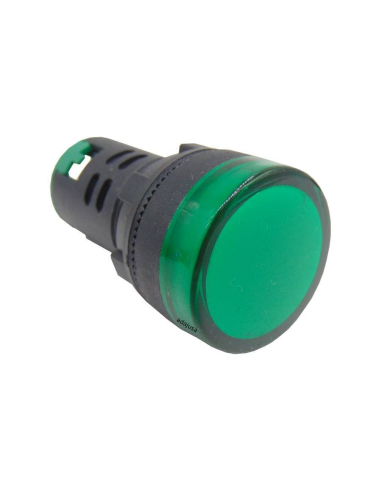

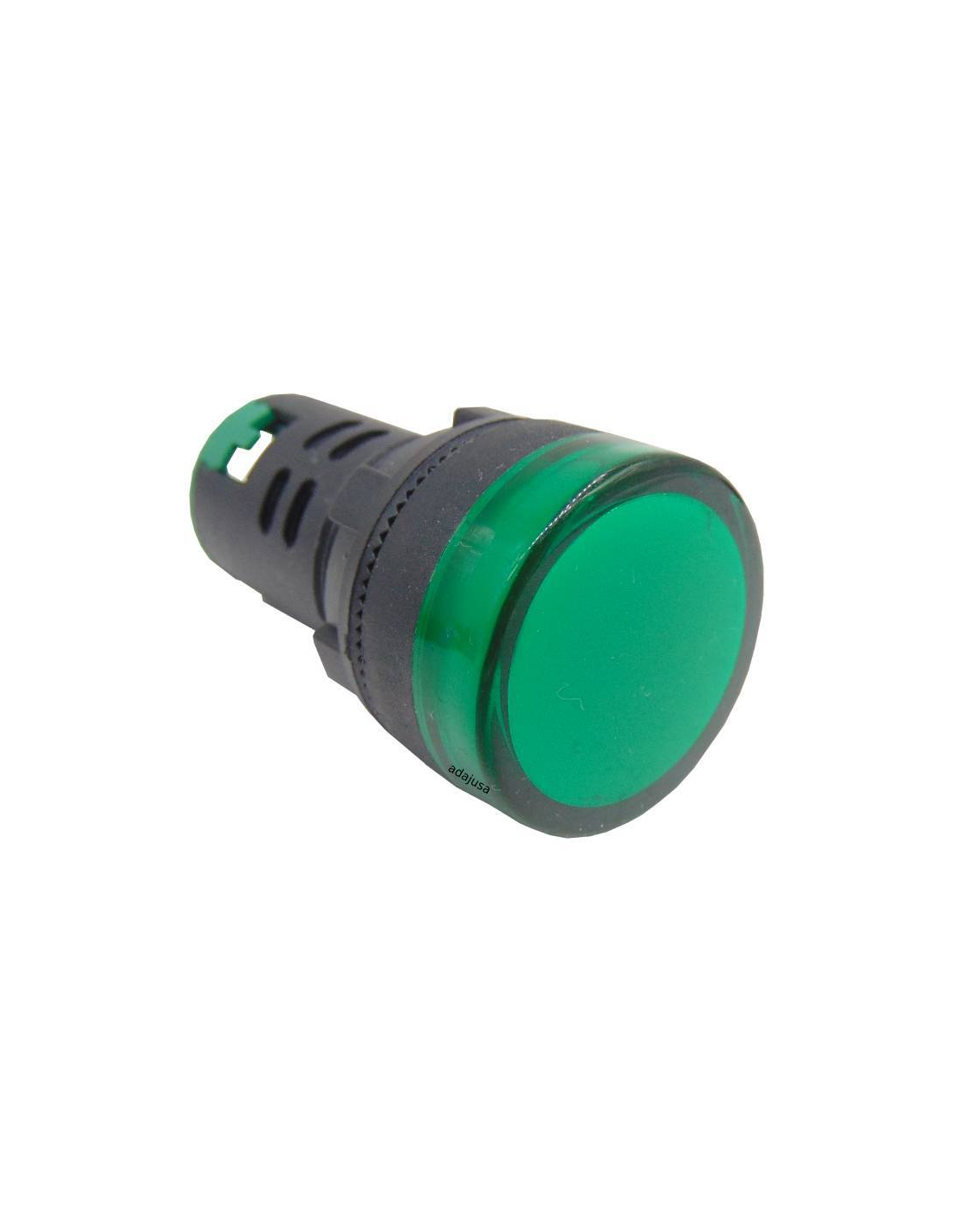

Pilot multiled green color 400 Vac 22mm

Name: Pilot multiled green color 400 Vac 22mm
Brand: TRACON
SKU: LJL22-GF
Price: 1.547 EUR
Availability: InStock

€1.55 Tax included

€1.30 tax excl.

Pilot greenmultiled luminous, voltage 380/400 Vac, diameter 22mm. High luminosity and long life led chip.

Part number: LJL22-GF

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pilot greenmultiled for voltage 380/400Vac, diameter 22mm. Luminous element composed of high performance LEDs (no bulb required).

Technical characteristics:

Manufacturer: TRACON
Part number: LJL22-GF
Voltage: 400Vac
Pilot color: Green
Diameter: 22mm
Degree of protection: IP65 (from the front side)
Operating temperature: -25 to +70ºC
Connection type: Threaded
Type of fixing: By nut
Material: Black polycarbonate

Dimensiones pilotos multiled verde 380V

Material for professional use, install in compliance with the regulations in force at the place of installation.

Colors_in_command_and_signals

Meaning and use of colors in control and signaling devices

Download (21.92KB)

Multi-LED electric lamps

Technical data sheet multiled electric lights

Download (645.12KB)

pushbutton catalog

aDAJUSA catalog of metallic electric pushbuttons

Download (1.5MB)
