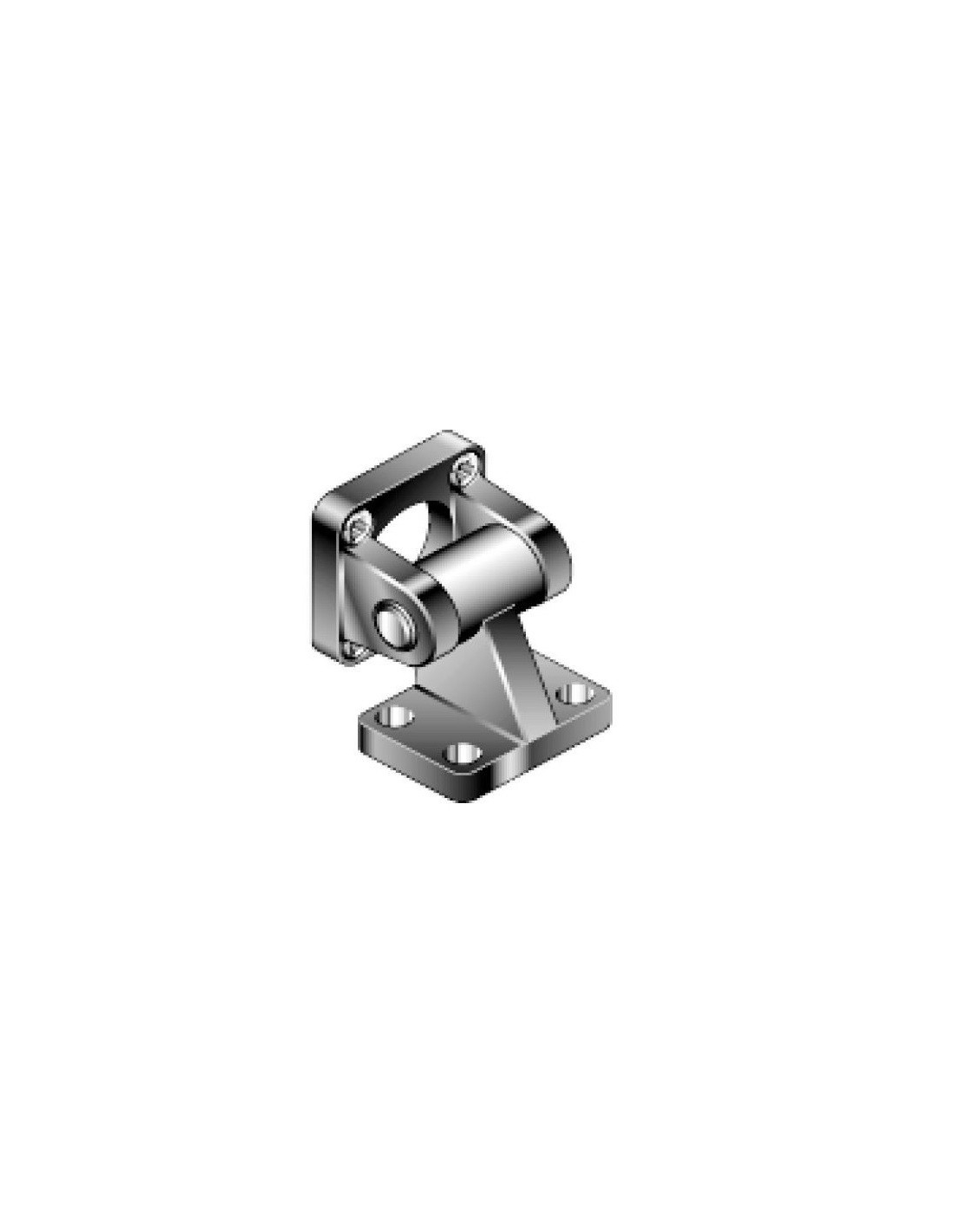

Square joint ISO full diameter 80

Name: Square joint ISO full diameter 80
Brand: Generico-AIR
SKU: PK-CFPCAS080
Price: 40.4005 EUR
Availability: InStock

€40.40 Tax included

€33.95 tax excl.

Full square artifice (tray, shaft and countercharnela) in aluminium for ISO cylinder of Ø80

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Diameter axis 80 for ISO joint

€3.06

Aluminum counter-plate for cylinder -80 AIRON - adajusa.es

Countercharnela aluminum cylinder diameter 80

€20.58

Charnela rear female for diameter cylinder 80 AIRON - adajusa.es

Charnela female rear cylinder diameter 80

€16.77

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Full square artifice in aluminium for ISO cylinder of Ø80
Manufacturer: Airon

The supply includes:

1 Hind female Charnela
1 Shaft (bolt)
1 Countercharnela squad
8 Screws

Material for professional use, install in compliance with the regulations in force at the place of installation.
