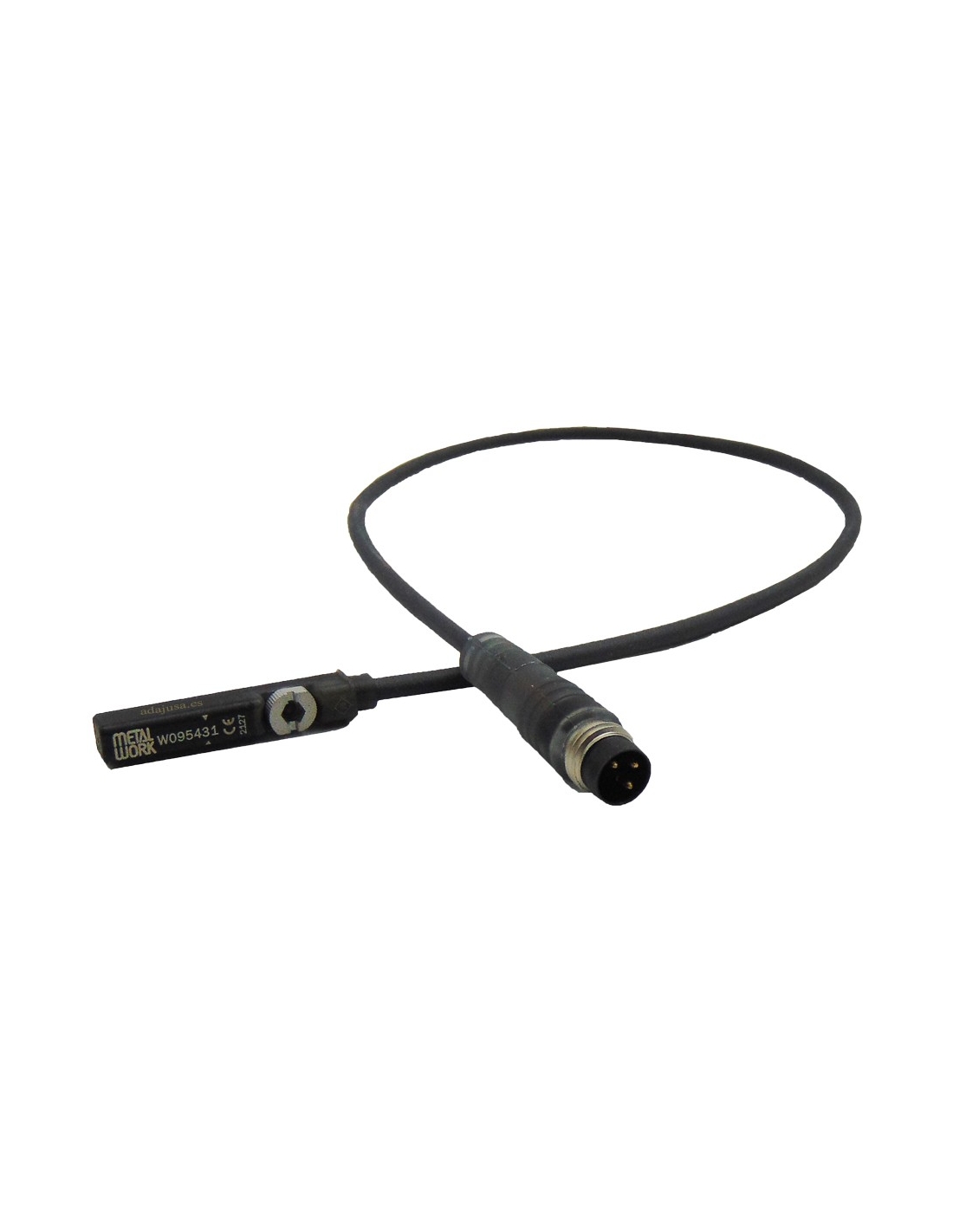

Magnetic sensor hall PNP 3-wire M8 connector - Metal Work

€35.05 Tax included

€29.45 tax excl.

Magnetic sensor, magnetic detector, normally open (NA), with magnetic hall collector and PNP output, with M8 connector.

Valid for mounting on ISO Metal Work and Mindman cylinders.

Reference: W095431

simbolo detector magnetico 3 hilos

Logotipo Metal Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Magnetic sensor with M8 connector for mounting on pneumatic cylinders. Hall type 3 wires with PNP output.

This sensor has the characteristic of being able to be mounted in the cylinder slot from above, that is, the cylinder heads do not need a through-opening.

It is fixed by a screw qaue pressed against the bottom of the T-groove, the fixing screw is for a 1.5mm allen wrench. The sensor can be installed in any cylinder or component with traditional T-grooves.

Features of the magnetic detector:

  • Manufacturer: Metal Work
  • Manufacturer reference: W095431/ W0952025390
  • Contact type: Hall NO PNP (Normally open).
  • Supply voltage (Ub): 10 ÷ 30 Vdc.
  • Voltage variation: ≤10% of Ub.
  • Voltage drop: ≤ 2V.
  • Power (W): 3.
  • Peak power (W): 6.
  • Output current (mA): ≤ 100.
  • Switching frequency (Hz): ≤ 400.
  • Short circuit protection: Yes.
  • Overload protection: Yes.
  • Investment protection: Yes.
  • Regulations: CE, EN60947-5-2
  • Color led status indicator: Yellow.
  • Magnetic sensitivity: 2.8mT±25%.
  • Frequency: ≤ 0.1mT.
  • Degree of protection (according to EN60529): IP67.
  • Working temperature (ºC): -25÷70.
  • Sensor capsule material: PA66 + PA61/6T.
  • Connector Type: M8x1
  • Type of connection cable with M8x1: Polyurethane; 2 x 0.14 mm2
  • Number of drivers: 3.






Material for professional use, install in compliance with the regulations in force at the place of installation.
