Limit Switch pneumatic 1/4 5/2 lever roller S. 260 - Mindman

Limit Switch pneumatic 1/4 5/2 lever roller S. 260 - Mindman

€32.94 Tax included

€27.68 tax excl.

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/4 5-way thread. The limit switch is operated by roller lever. The limit switch can be used as normally open (NA) or closed (NC).

Reference: MVMA2604R1

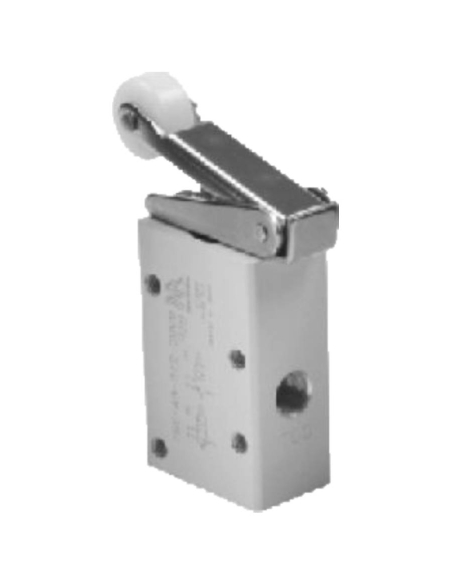

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


limit switch pneumaticvalve, pneumatic valve with mechanical drive by lever with metal roller. The connections of the limit switch are by 1/4" thread. The valve is 3-way and can be used as a closed valve (NC), when it is not pulsed there is no pressure at the outlet and the outlet is communicated with the exhaust, or open valve (NA), when it is not pressed there is pressure at the outlet, when it is pressed, the passage of air to the outlet is interrupted and it is communicated with the exhaust.

Specifications:

  • Manufacturer: Mindman.
  • Manufacturer reference: MVMC-260-4A1.
  • Valve type: 1/4-5/2 Monostable.
  • Thread type: G 1/4".
  • Type of drive: Lever with roller.
  • number of tracks: 5
  • Positions: 2.
  • Fluid type: Pressurized air, with or without lubrication.
  • Working pressure: 0÷8 Kgr/cm².
  • Maximum pressure: 10 Kgr/cm².
  • Effective pitch diameter: 18 mm2.
  • Working temperature: -5 to 60ºC.
  • Material: Aluminum and steel.
  • Weight: 178 g

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
