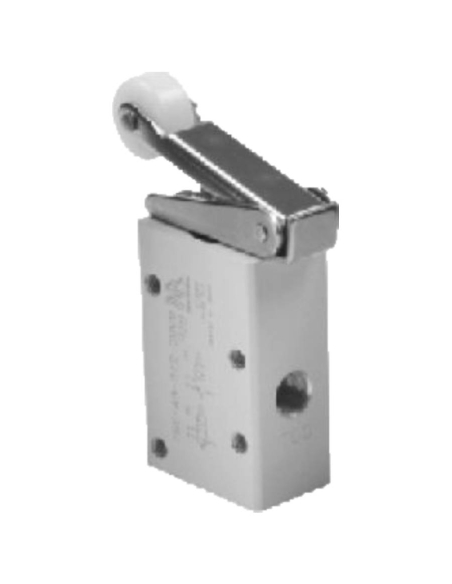

Limit Switch pneumatic 1/8 3/2 lever roller - Mindman

Limit Switch pneumatic 1/8 3/2 lever roller - Mindman

€29.33 Tax included

€24.65 tax excl.

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is operated by roller lever. The limit switch can be used as normally open (NA) or closed (NC).

Reference: 281MVMC21006A3R1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

limit switch pneumatic valve,mechanically operated pneumatic valve by lever with metal roller. The connections of limit switch are by 1/8" thread. The valve is 3-way and can be used as a closed valve (NC), when it is not pulsed there is no pressure at the outlet and the outlet is communicated with the exhaust, or open valve (NA), when it is not pulsed there is pressure at the outlet, when pressed, the passage of the air to the outlet is interrupted and it is communicated with the exhaust.

specifications:

  • Manufacturer: Mindman.
  • Manufacturer's Reference: MVMC-210-6A-3R1.
  • Valve type: 1/8-3/2 Monostable.
  • Thread type: G 1/8".
  • Drive type: Roller lever.
  • number of tracks: 3.
  • Positions: 2.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0÷10 Kgr/cm2.
  • Maximum pressure: 10 Kgr/cm2.
  • Effective pitch diameter: 19 mm2.
  • Working temperature: -5 to 60oC.
  • Material: Alumio and steel.

Dimensiones final de carrera neumático palanca mindman 1/8

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Limit switch 3/2 NC 3/2 NC...
Pneumatic Limit switchs

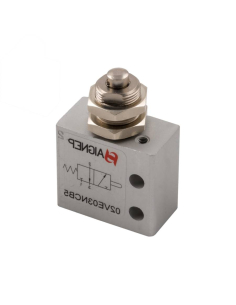

Limit switch 3/2 NC 3/2 NC strut pneumatic tire monostable side fittings diameter M5 -...
