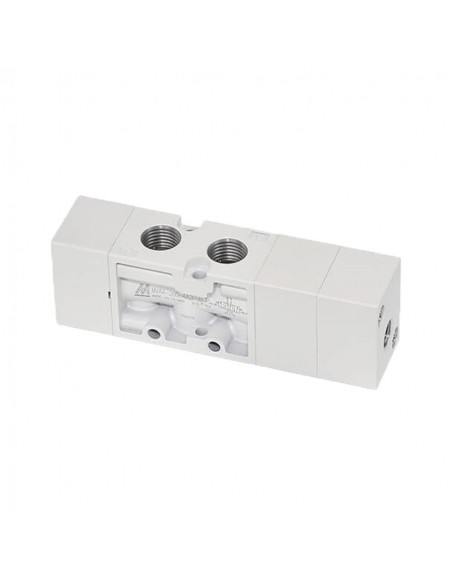

Pneumatic valve of 1/4 5 ways monostable, for general and industrial applications.
Specifications:
- Manufacturer: Mindman.
- Manufacturer reference: MVAA-260-4A2R
- Valve type: 1/4-5/3 monostable exhaust centers.
- Thread type: G 1/4".
- Number of tracks: 5.
- Positions: 3
- Fluid type: Pressurized air, with or without lubrication.
- Working pressure: 0÷8 Kgr/cm².
- Test pressure: 1 Mpa.
- Effective pitch diameter: 18 mm2.
- Pilot pressure range: (0.3×P*+0.1)~0.8 MPa
- Working temperature: -5 to 60ºC.
- Material: Aluminum and steel.
- Weight: 219 g.
Material for professional use, install in compliance with the regulations in force at the place of installation.
To expand the information you can download the technical sheet by clicking on the "Attachments" tab
