Pre-reducer size 80 - PC80B5-200/19

Name: Pre-reducer size 80 - PC80B5-200/19
Brand: Generico-MOT
SKU: PC80B5-200/19
Price: 144.4184 EUR
Availability: InStock

€144.42 Tax included

€121.36 tax excl.

Pre-gearbox size 80 and reduction ratio 3. This pre-gearbox is inserted between the motor and the gearbox to increase the reduction ratio. It can be directly coupled to a gearbox with flange PAM 160/19 and to a motor with flange B5 200/19.

Part number: PC80B5-200/19

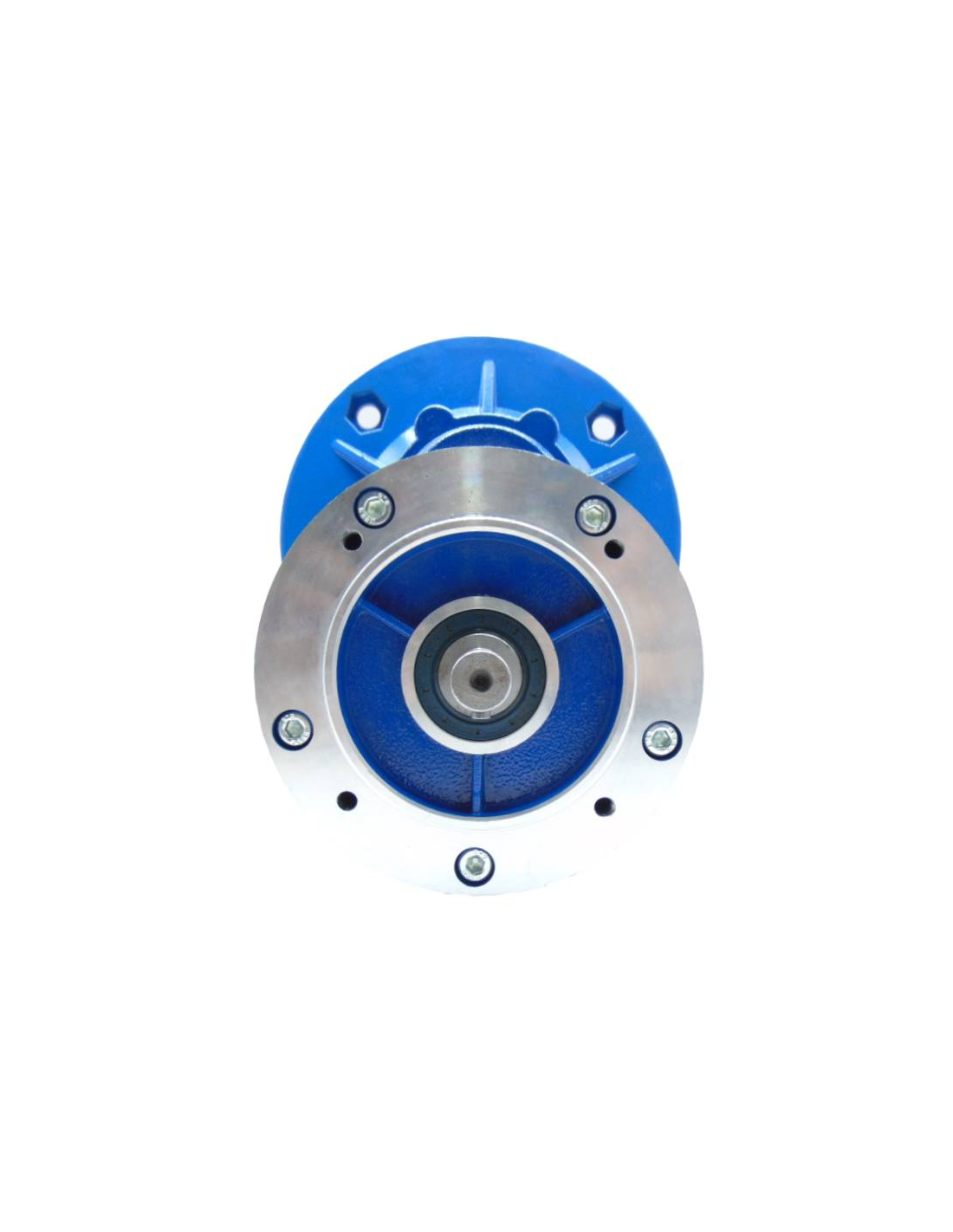

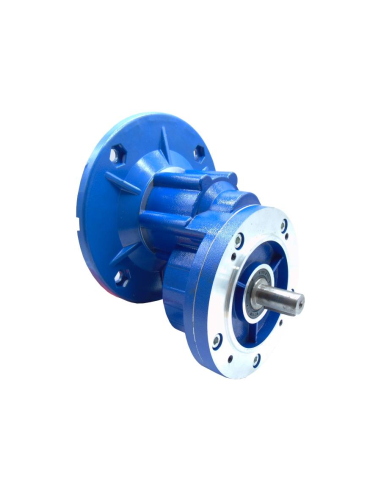

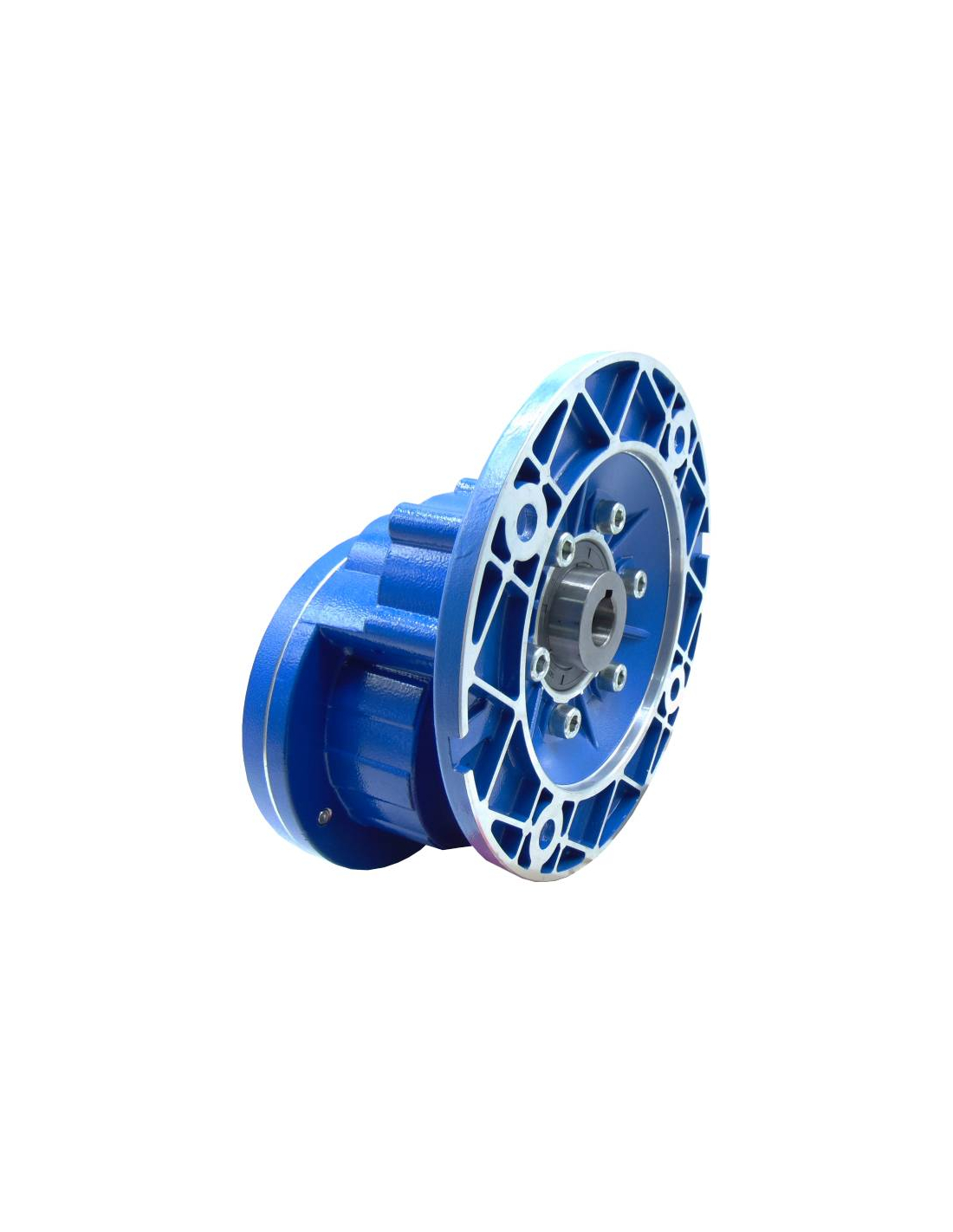

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pre-reducer size 80 and reduction ratio 3. It is manufactured with a high quality aluminum alloy housing and steel gears. It can be mounted on any geared motor with flanges PAM. The pre-reducer is inserted between the motor and the gearbox.

The function of a pre-reducer is basically to multiply the reduction ratio of a gearbox.

The pre-reducer cannot be used directly as a gearbox, it can only be coupled to another gearbox. It must be verified that the flange and the shaft of the pre-reducer and reducer are compatible so that the coupling of both elements is possible.

Technical specifications

Manufacturer/Importer: Motorseg
Part number: PC80B5-200/19
Size: 80
Input flange (motor): 200/19
Output flange (gearbox) 160/19
Input shaft: diameter 19 hollow
Output shaft: diameter 19
Reduction ratio (i): 3
Color: Blue

Reducer and motor not included in the scope of supply

Material for professional use, install in compliance with the regulations in force at the place of installation.
