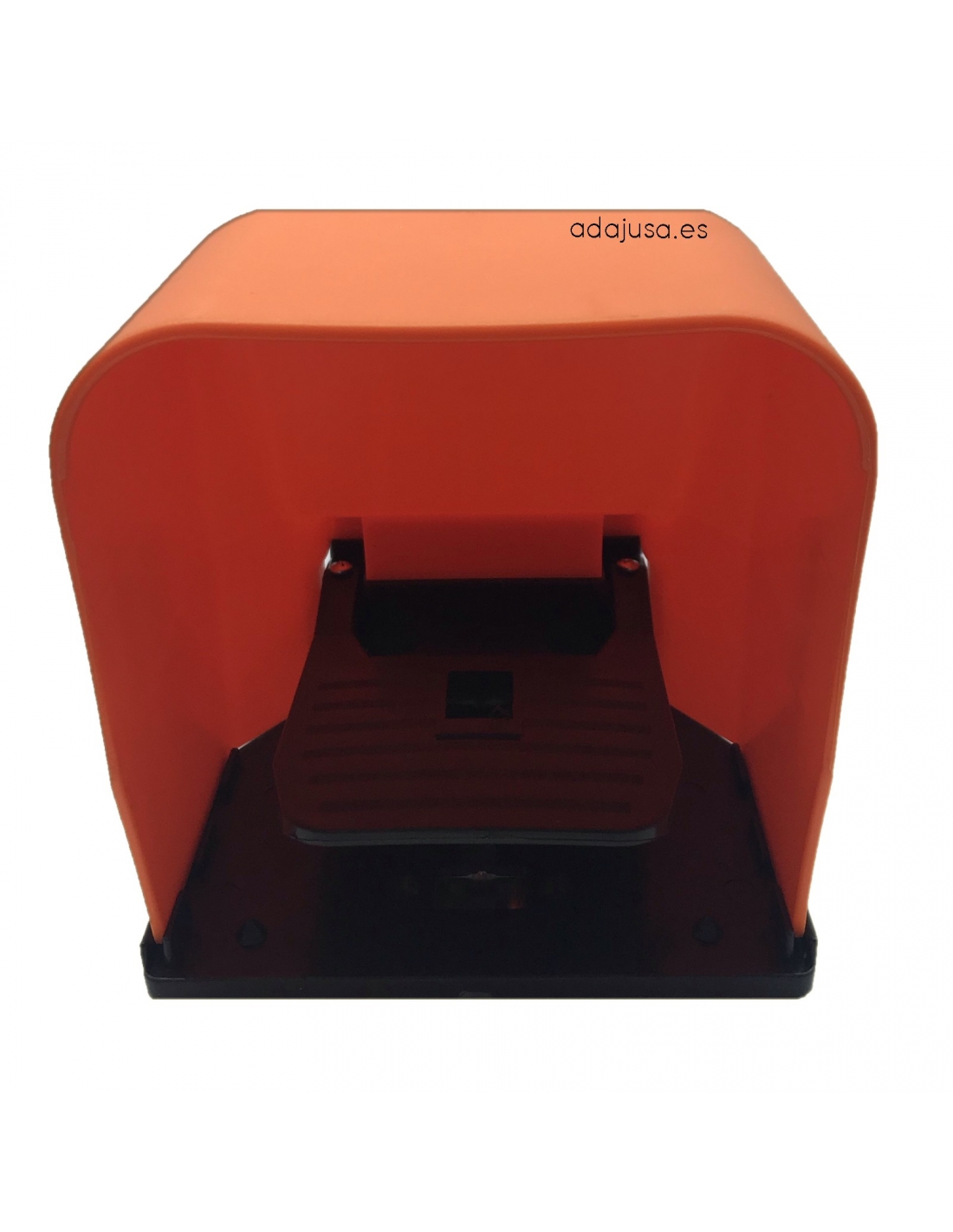

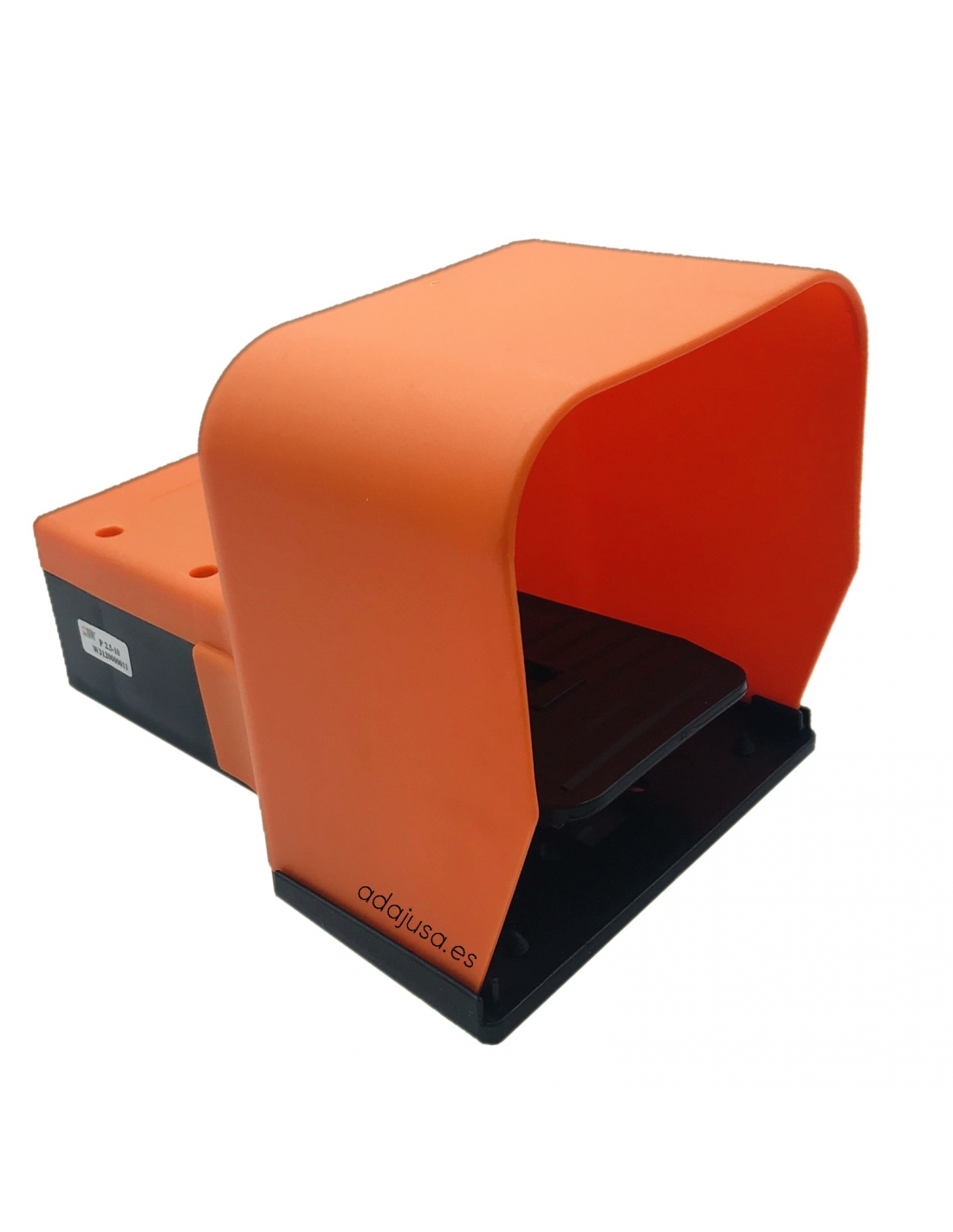

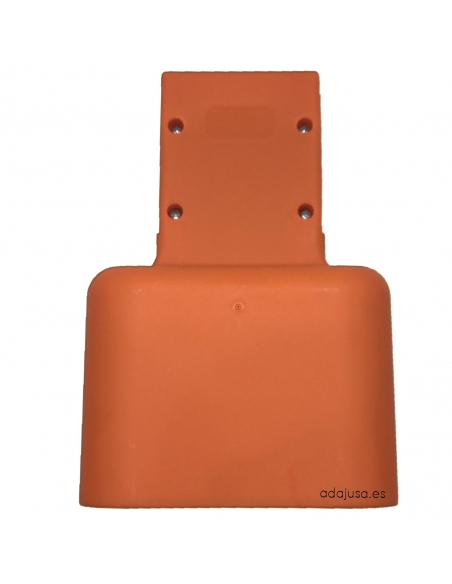

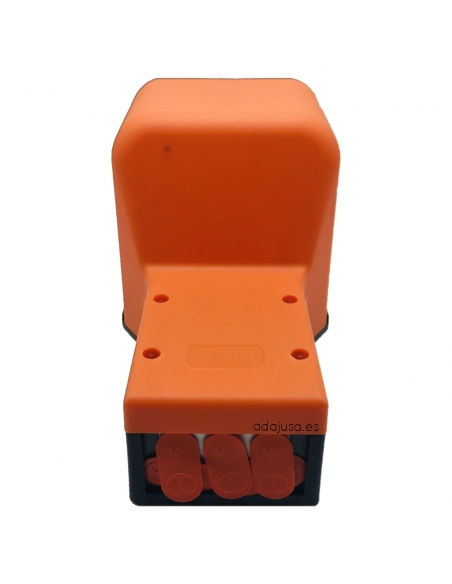

Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA

Pneumatic pedal 3/2 diameter 4 mm bistable with protection - Metal Work

Name: Pneumatic pedal 3/2 diameter 4 mm bistable with protection - Metal Work
Brand: Metal Work
SKU: W3120000311
Price: 60.214 EUR
Availability: PreOrder

€60.21 Tax included

€50.60 tax excl.

Pneumatic pedal with thread diameter 4 mm of 3 ways with protective cover in plastic material of high resistance, of bistable operation, the pneumatic valve is activated while the pedal remains pressed returning to the position of rest when it stops operating.

Reference: W3120000311

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic pedal 3/2 Ø 4 bistable. The pedal is equipped with a protective cover to avoid accidental actuation, the pedal body is made of high-strength plastic material, in orange and the pneumatic valve in aluminum, of monostable operation, the pneumatic valve is activated while the pedal remains pressed returning to the resting position when it stops operating.

Specifications:

Manufacturer: Metal Work.
Reference: W3120000301 (PEV F3 PEB PR)
Valve thread: 4 mm.
Fluid: With or without lubrication, if there is lubrication it must be continuous.
Typology: 3 ways, 2 bistable positions with protection.
Working pressure: 2,5..10 bar. 0,25..1 MPa. 36..145 psi.
Nominal diameter: 2.5 mm.
Conductance C: 16.5 Nl/min-bar.
Critical ratio: 0.03 bar/bar.
Flow rate at 6.3 bar ΔP 0.5bar: 60 Nl/min.
Flow rate at 6.3 bar ΔP 1 bar: 95 Nl/min.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
