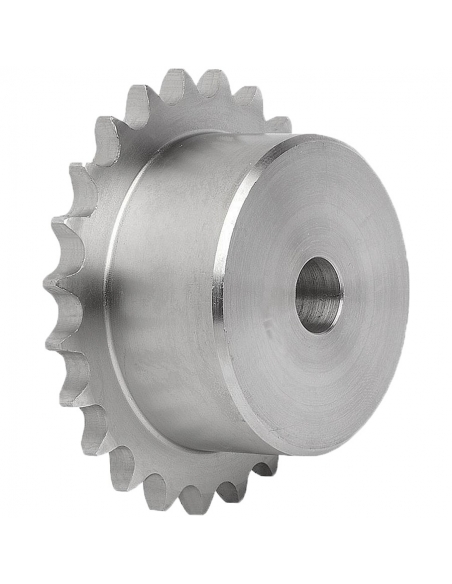

Roller chain sprockets 5/8 x 3/8 10B-1 Z23 DIN8187 - ISO R606

€13.66 Tax included

11.48 tax excl.

P583810B1Z23

Single pinion for single roller chain model 10B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z23 5/8

Teeth: 23

ISO: 10B-1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for single roller chains 10B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z23 5/88


Characteristics:

  • 5/8 x 3/8 mm ISO 10B-1
  • 15.875 x 9.65 mm
  • Teeth: 23
  • Roller diameter: 10.16 mm
  • Tooth radius (r): 16 mm
  • Curved area width (C): 1.6 mm
  • Tooth width (h1): 9.1 mm
  • Outer Diameter (S): 123.4
  • Primitive diameter (Dp): 116.58
  • Center diameter (d): 80
  • Hub diameter (D): 16 (Non-mechanical shaft diameter)
  • Width (H): 30


Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

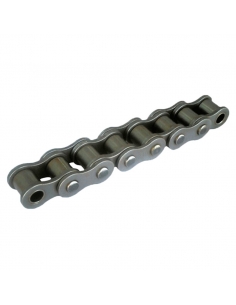

Simple roller chain ISO DIN 8187 ISB - ADAJUSA
