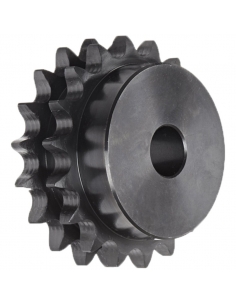

Double sprockets for roller chain 3/8 x 7/32 06B-2 Z34 DIN8187 - ISO R606

€16.76 Tax included

14.08 tax excl.

P3873206B2Z34

Double pinion for double roller chain model 06B-2 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z34 3/8 DOUBLE

Teeth: 34

ISO: 06B-2

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Double sprockets for double roller chains 06B-2 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z34 3/8 DOUBLE:THX



Characteristics:

  • 3/8" x 7/32" mm ISO 06B-2
  • 9.525 x 5.72 mm
  • Teeth: 34
  • Tooth radius (r): 10 mm
  • Curved area width (C): 1 mm
  • Tooth width (L): 5.2 mm
  • Outer Diameter (Sd): 107.3
  • Primitive diameter (Dp): 103.23
  • Hub diameter (D): 16 (Non-mechanical shaft diameter)
  • Disc width (H): 30 (tooth not included)
  • Tooth width (H2): 15.4 mm


Material for professional use, install in compliance with the regulations in force at the place of installation.
