Safety valve overpressure 3/8 8 Bar - Metal Work

Name: Safety valve overpressure 3/8 8 Bar - Metal Work
Brand: Metal Work
SKU: VS3808PED4
Price: 5.8191 EUR
Availability: InStock

€5.82 Tax included

€4.89 tax excl.

Overpressure safety valve for the relief of pneumatic circuits and compressors. With 3/8" thread adjusted and sealed at a pressure of 8 bars. The valve is supplied with its corresponding certificate.

Manufactured according to the MIE-AP17 regulation of the precision devices regulation, being built by spring and total lift seat.

Reference: VS3808PED4

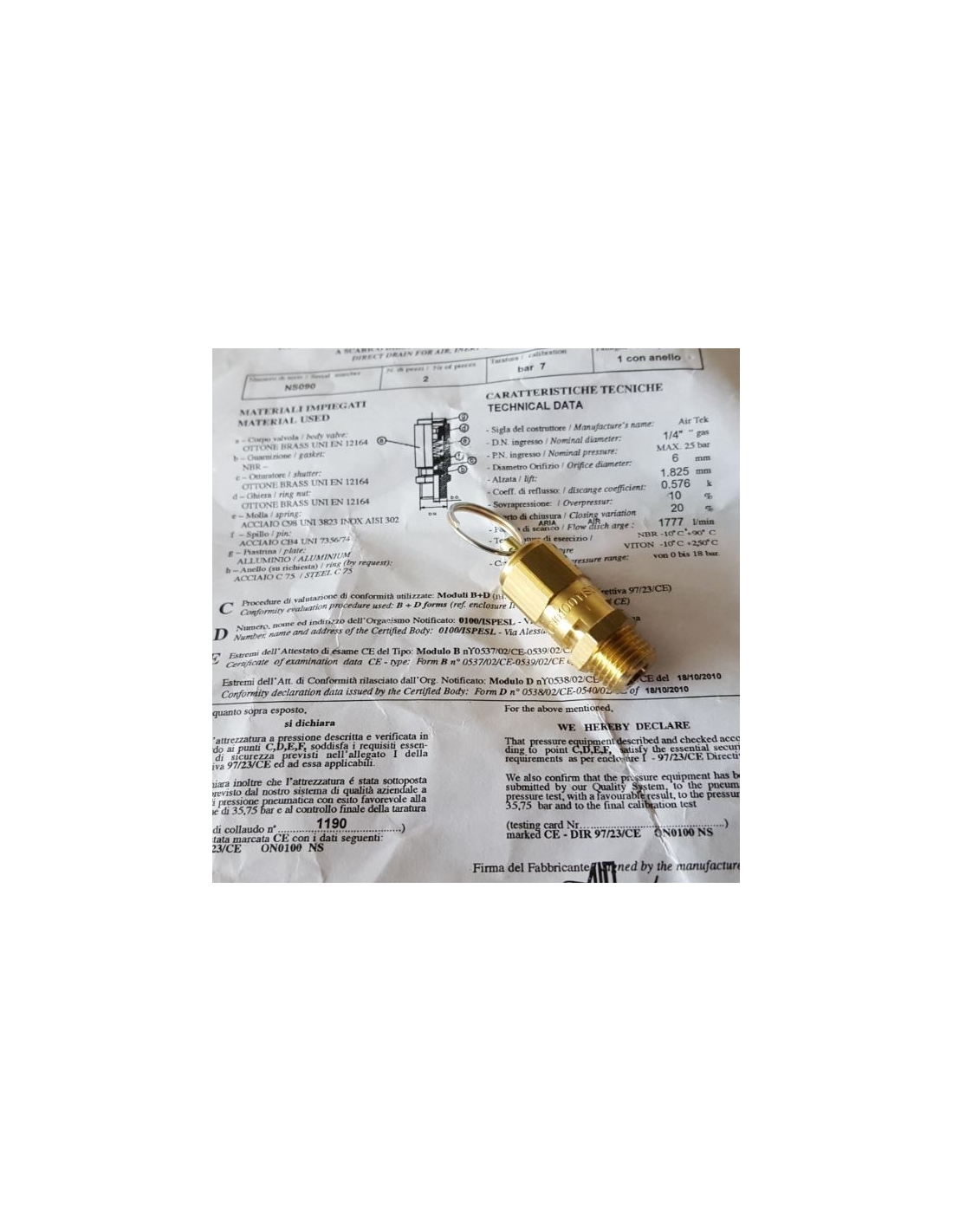

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Overpressure valve with 3/8" thread and adjusted to 8 bars. To avoid overpressure in the circuits in which it is installed or on compressors.

The valve is manufactured according to the MIE-AP17 regulation of the precision devices regulation, being built by spring, total lift seat and sealed at the indicated working pressure.

The valve is supplied with its corresponding certificate.

Specifications:

Provider: Metal Work
Reference: VS3808PED4
Connection thread: G 3/8".
Adjustment pressure: 8 Bars.
Overpressure: +10% adjustment pressure.
Maximum pressure: 40 Bars.
Nominal diameter: 9mm.
Flow: 2450 l/min.

Dimensiones válvulas seguridad sobrepresión

Height "A": 17mm.
Height "B": 50mm.
Height "C": 10mm.

For other sizes or adjustment pressures consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Overpressure valve

Certificate Overpressure safety valve

Download (196.34KB)

valve 1_4

Overpressure Safety Valve Tab

Download (86.17KB)
