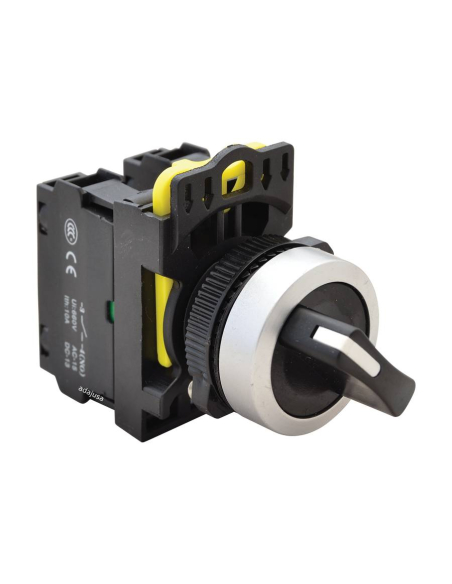

2-position selector with open (NO) and closed (NC) contact return - NY Series

Short-handle, 2-position selector switch with spring return to the right position, one open contact (NO) and one closed contact (NC). Made of high-strength plastic and featuring a modern design incorporating a silver bezel, it is suitable for mounting on electrical control panels for machinery and electrical control boxes in general. The electrical selector switch is typically used for switching on/off cycles or general-purpose machinery. It can be mounted on 22 mm through-holes.

Designed for intensive applications requiring high operational reliability and ease of assembly. The selector can be installed on panels, electrical control cabinets, and control boxes for machinery, air conditioning, industrial, and general applications. Compliant with IEC 60947. It features high protection on the front side, IP65.

The supply includes the complete selector with one open contact and one closed contact. The left position remains fixed, while the right position remains fixed while the control is held, returning to the left position upon release.

Characteristics:

• Manufacturer: Tracon
• Reference: NYK3-S24BK
• Head color: Black
• Mounting hole: 22mm
• Material: Plastic
• Number of positions: 2 with right-side return
• Contact : 1 open (NO), 1 closed (1NC)
• Maximum rated operating voltage Ue: 230V
• Nominal working current Ie (AC 1, 230V): 6A
• Nominal working current Ie (AC 15, 230V): 3A
• Nominal working current Ie (DC 13, 250V): 0.27A
• Nominal insulation voltage Ui: 660V
• Mechanical durability: 300,000 cycles
• Operating temperature: -25 to +40ºC
• Protection class: IP65 (from the front side)
• Regulation: EN 60947-1, EN 60947-5-1
