Ball valve 1 1/4 to 2 way tube-tube 32mm - Sicomat

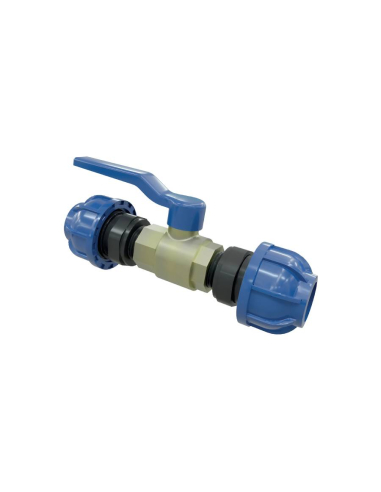

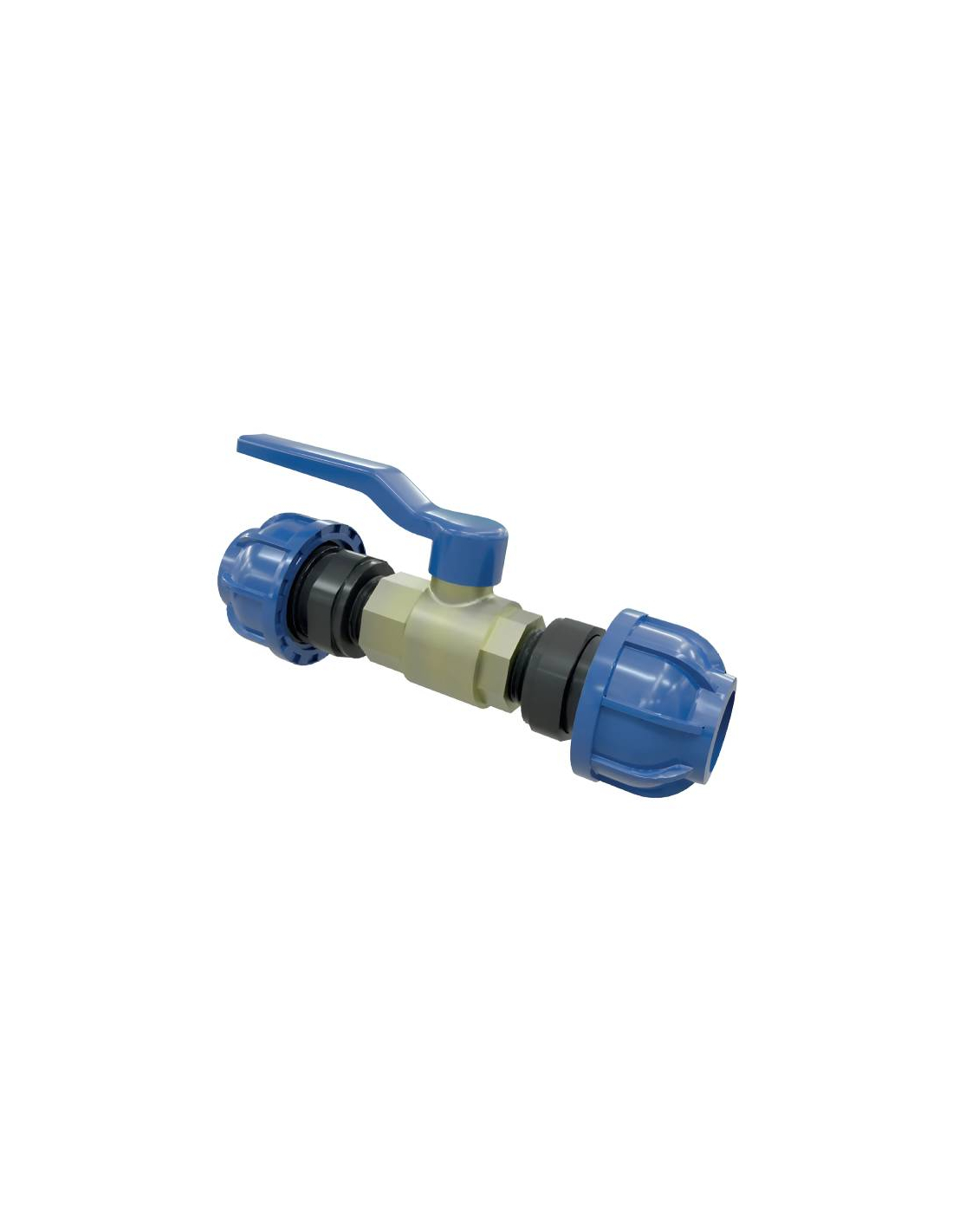

Two-way ball valve way, tube/tube type, lever operated. Shut-off valve with 1 1/4 female connection coupled to straight fitting with nut and nylon body and NBR gasket for connection to 32mm OD pipe. Easy installation as the fitting has a quick coupling system, with no need to weld or tighten the ferrules, ensuring a reliable seal and a safe connection between components. Maximum working pressure 12,5 bar.

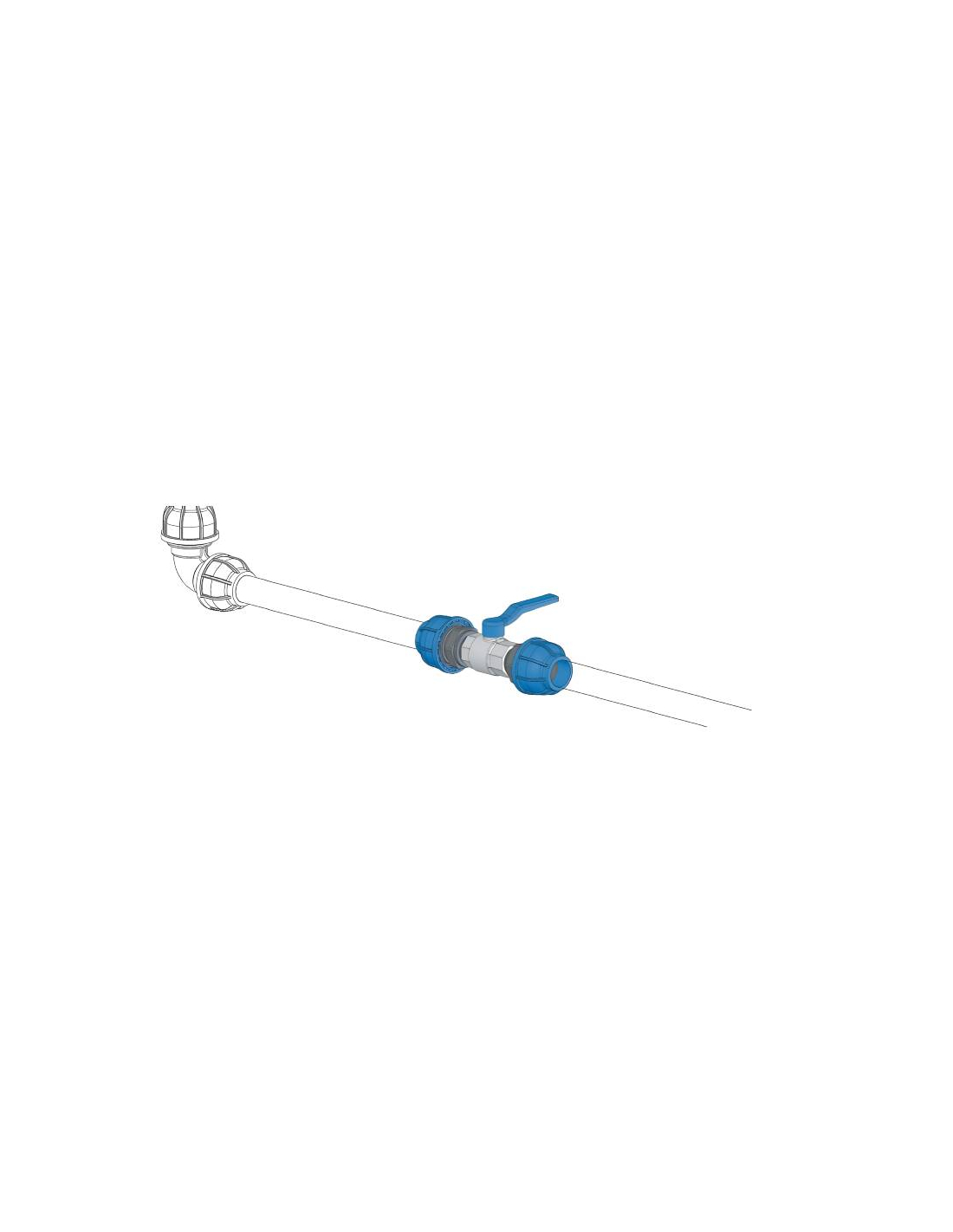

Ball valves are suitable for use in compressed air installations and other pneumatic applications to facilitate maintenance operations, as they are designed to section the system in localized interventions, allowing to close the air passage. They are very useful for the correct evacuation of condensate in installations where the use of condensate-free air is required. They are on-off type valves with two possible positions, open or closed; in the ON position the fluid coming from the circuit passes through the valve and in the OFF position it completely blocks the passage of the fluid.




Characteristics:

• Manufacturer/Supplier: Sicomat/Metalwork
• Part number: R224.032.114
• Tube diameter: 32mm
• Application: Compressed air / Vacuum / Nitrogen
• Maximum pressure conditions: -0,8 to 12,5bar
• Temperature conditions: -20ºc to +70ºC
• Dimensions: Ø = 32x1 1/4; A = 62mm ; B = 195mm
• Weight: 577g
• All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.

Material for professional use, install in compliance with the regulations in force at the place of installation.
