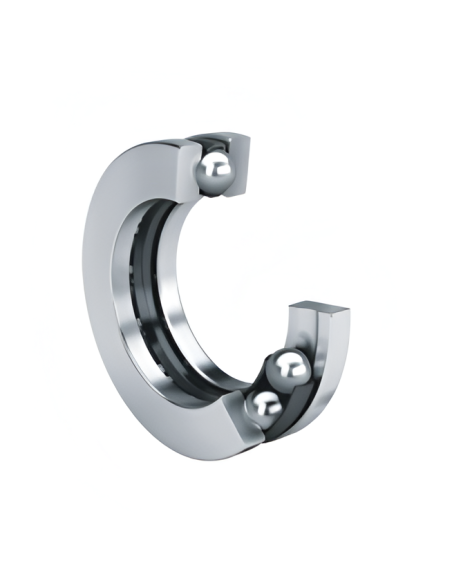

simple direction axial ball bearing with spherical housing ring 53203 , dimensions 17x35x13.2mm, inner diameter 17mm, outer diameter 35mm, width 13.2mm. These bearings consist of shaft rings, spherical housing rings and ball cage assembly. The bearings are not self-retaining and for this reason the ball cage assembly and bearing rings can be mounted separately, they are particularly suitable for supporting axial loads in one direction only.
Axial ball bearings with spherical housing ring compensate for static shaft alignment errors.
The main dimensions for simple direction thrust bearings correspond to ISO 104/DIN 711. The dimensional and shape tolerances correspond to tolerance class PN, according to DIN 620-3.
Axial ball bearings can be used for operating temperatures from –30 °C to +150 °C limited by lubricant.
Characteristics:
- Manufacturer/Distributor: FAG
- Reference: 53203 FAG
- Material: Steel
- Dynamic load capacity, axial (Cr) : 17300N
- Static load capacity, axial (Cor) : 27500N
- Fatigue load limit, axial (Cur) : 1210N
- Limiting rotation speed (nG): 8500 1/min
- Weight: 0.052 Kg
Dimensions:- Hole diameter (d): 17mm
- Outer diameter (D): 35mm
- Width, overall (T): 13.2mm
- Housing ring hole diameter (D1): 19mm
- Shaft ring lip diameter (d1): 35mm
- Minimum chamfer dimensions (r): 0.6mm
- Radius of spherical housing ring (R): 32mm
- Center point distance (A): 16mm
Professional use material, install in compliance with the regulations in force at the installation site.
For further information you can download the technical sheet by clicking on the "Attached Files" tab.
