Bearing 7200 10x30x9mm ISB

€4.46 Tax included

€3.75 tax excl.

Single row angular contact ball bearing 7200, dimensions 10x30x9mm. Single row angular contact ball bearing, made of steel and ball cage in reinforced polyamide PA66

Part number: 7200

Logo-ISB-Bearings-and-Components-fondo-verde

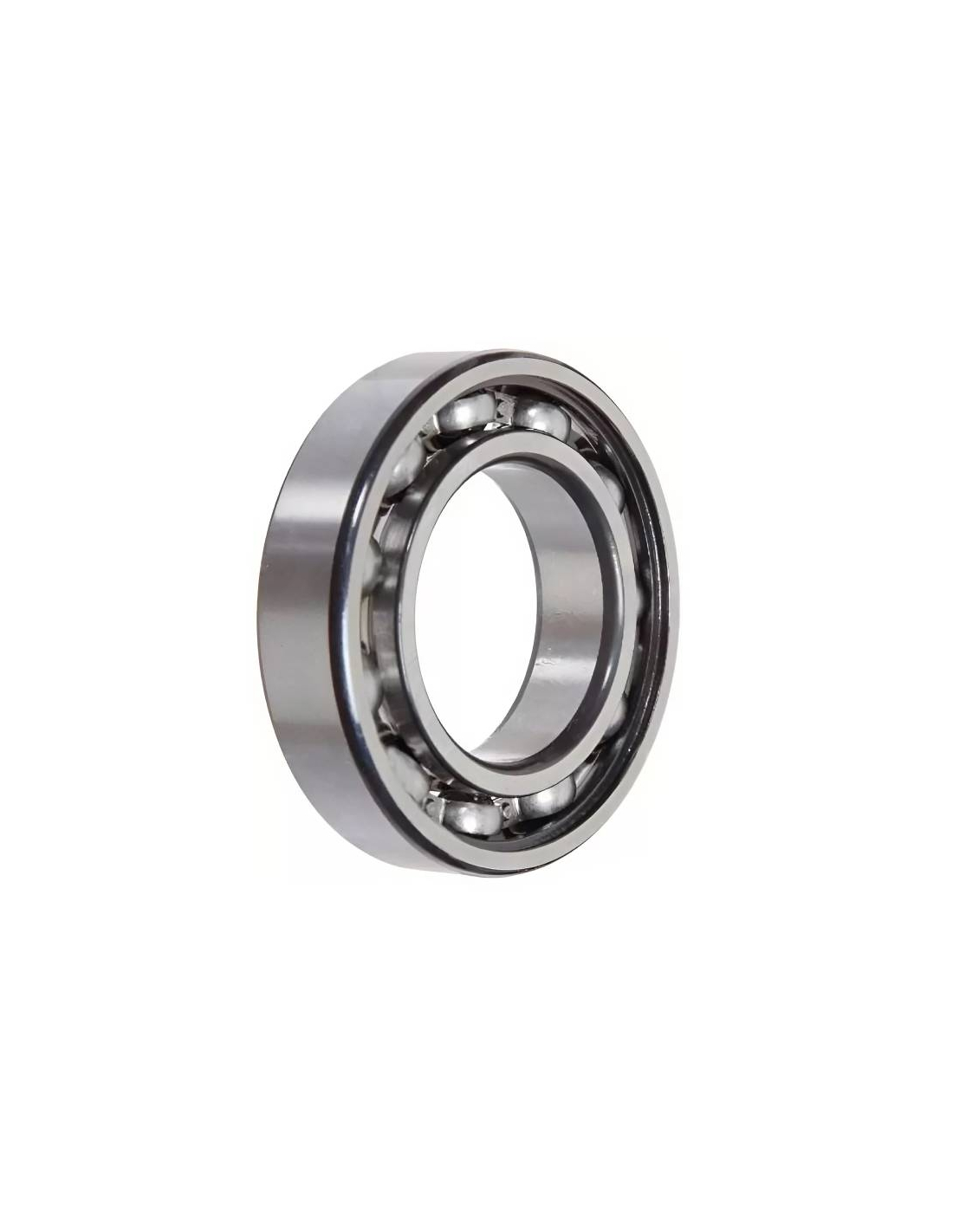

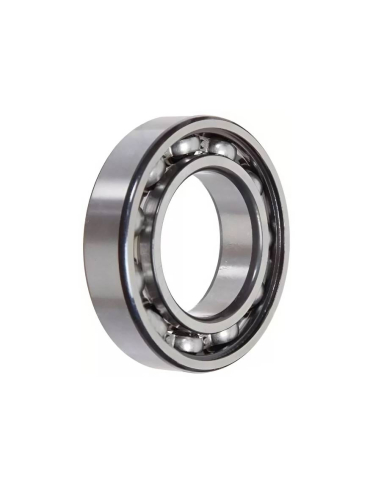

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Single row angular contact ball bearing, series 7200 to DIN 628-1, without any seals (open). Cage made of reinforced polyamide PA66.

Single row angular contact ball bearings can support high radial loads and axial forces in one direction only, the contact angle of this series is 40°. This type of bearing is usually mounted in combination with another bearing.

This type of bearing is suitable for operating temperatures from -30ºC to +110ºC.

Dimensions: Ø10xØ30x9.

For other references or dimensions, please consult us.

DibujoRodamientoAngularISB

Characteristics:

  • Manufacturer ISB.
  • Part number: 7200 B.
  • Material: Tempered steel.
  • Cage: Polyamide PA66 reinforced.
  • Dimension d: 10mm.
  • Dimension D: 30mm.
  • B dimension: 9mm.
  • Sealing: No, bearing open on both sides.
  • Dynamic load capacity Cᵣ (KN): 6.88.
  • Static load capacity C₀ᵣ (KN): 3,28
  • Contact angle: ἀ=40º
  • Limit speed ng (min-¹): 22950.
  • Weight: 0,03Kg.


Material for professional use, install in compliance with the regulations in force at the place of installation.
