Pack

Solenoid valve 1/2 3 bistable vias 110Vac 5VA - Metal Work - adajusa.es

Solenoid valve 1/2 3 bistable ways without coil - Metal Work - adajusa.es

24Vdc 5W T22 x 8 solenoid valve coil - Metal Work

Solenoid valve 1/2 3-way bistable 110Vac 5VA - Metal Work

Name: Solenoid valve 1/2 3-way bistable 110Vac 5VA - Metal Work
Brand: Metal Work
SKU: PK-E123BI110
Price: 193.9343 EUR
Availability: InStock

€193.93 Tax included

€162.97 tax excl.

1/2 3-way closed assisted bistable (NC) pneumatic solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 5VA, for cores of 8mm. 22mm connector

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.34

Valve solenoid coil 110Vac 5VA T22 diameter 8 - Metal Work

€8.22

Electrovalve 1/2 3-way bistable without coil - Metal Work

€174.80

No queries yet, leave the first!

Privacy

Shipments

Returns

1/2 3-way bistable pneumatic solenoid valve.

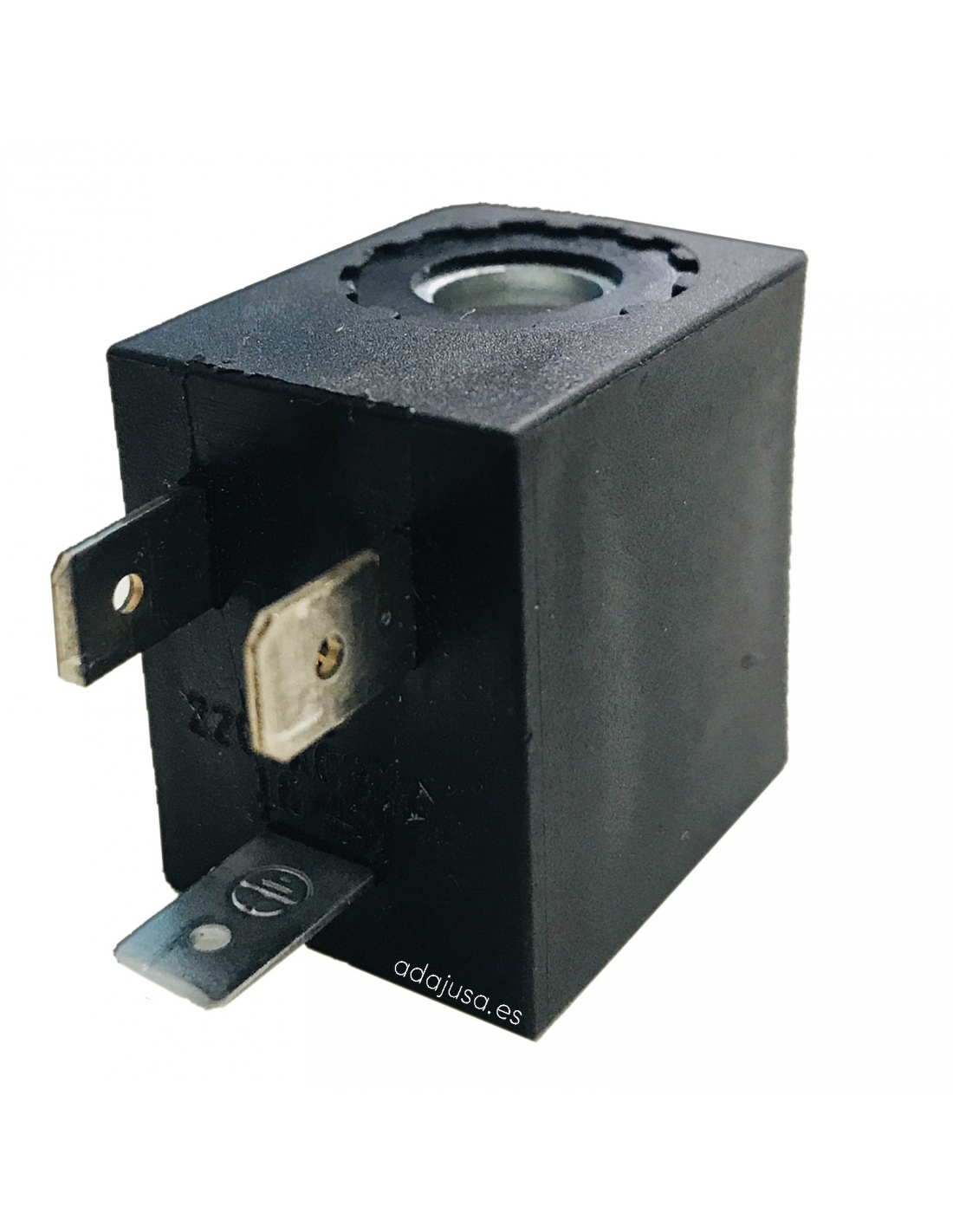

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 5VA, for cores of 8mm.

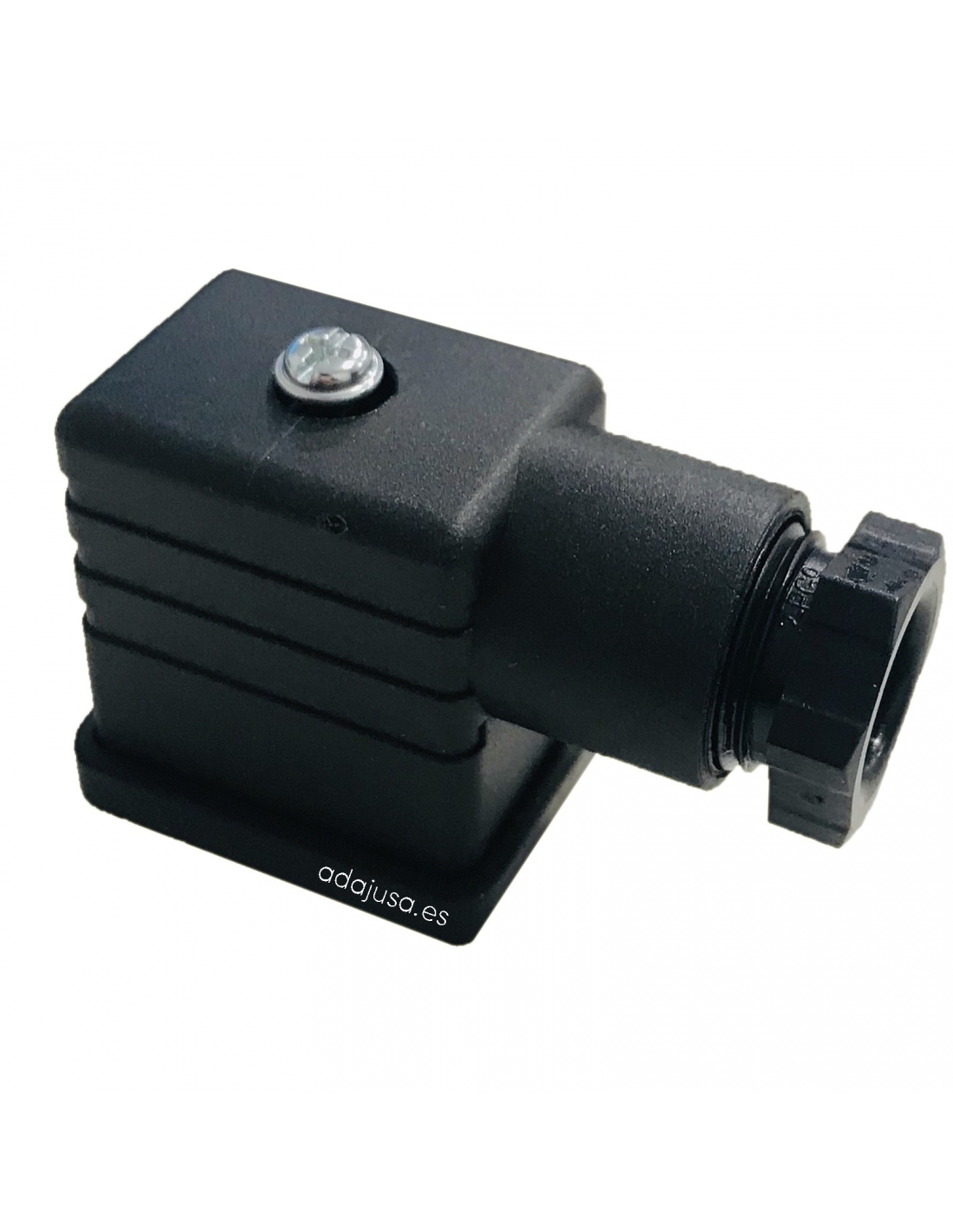

22mm plastic connector

Supply includes:

1 Solenoid valve 1/2" 3/2 bistable
2 Coils 110Vac 5VA
2 22mm connectors

specifications:

Eléctrovalvula manufacturer: Metal Work.
Manufacturer's Reference: SOV43SOBOO Code: 7030020100
Voltage: 110Vac
Consumption: 5VA
Working pressure of the eléctrovalvula: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10oC to 60oC.
Nominal diameter: 15mm.
Flow rate at 6 bars p 1 bar: 4600 Nl/min.
Manual drive: Yes.

Dimensiones electroválvulas 1/2-3/2 biestable metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
