Solenoid valve 1/2 5 ways bistable - Metal Work - ADAJUSA
Solenoid valve 1/2 5 ways bistable - Metal Work - ADAJUSA

Solenoid valve 1/2 5 ways bistable - Metal Work

€200.65 Tax included

€168.61 tax excl.

Solenoid valve 1/2 5 ways bistable without coil, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.

Reference: 7030021200

Logo-Metal-Work

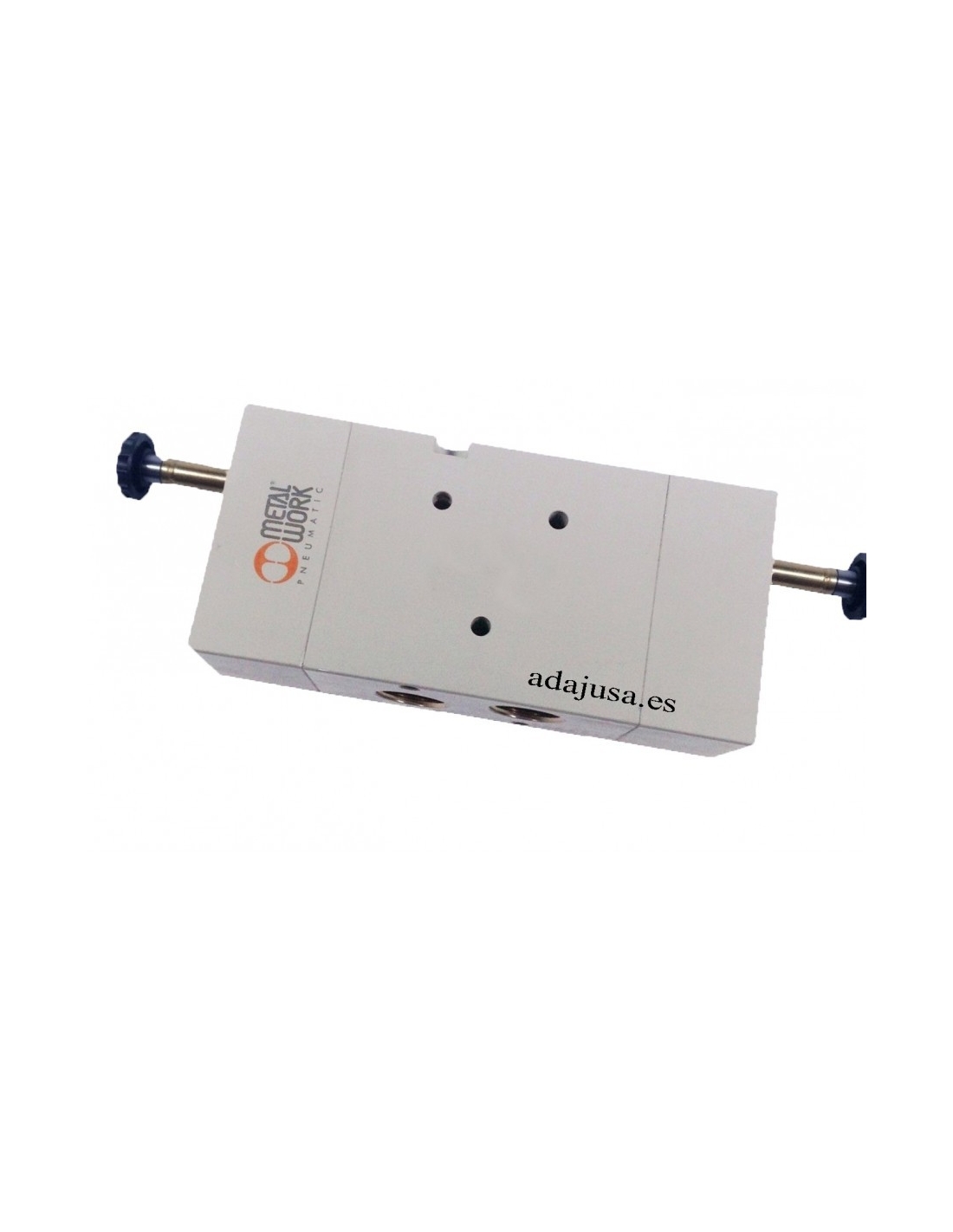

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/2 5 ways bistable without coil. For general and industrial applications.

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Manufacturer reference:7030021200 SOV 45 SOB OO
  • Solenoid valve working pressure: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 15mm.
  • Flow at 6 bars Δp 1 bar: 4600 Nl/min.
  • Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
